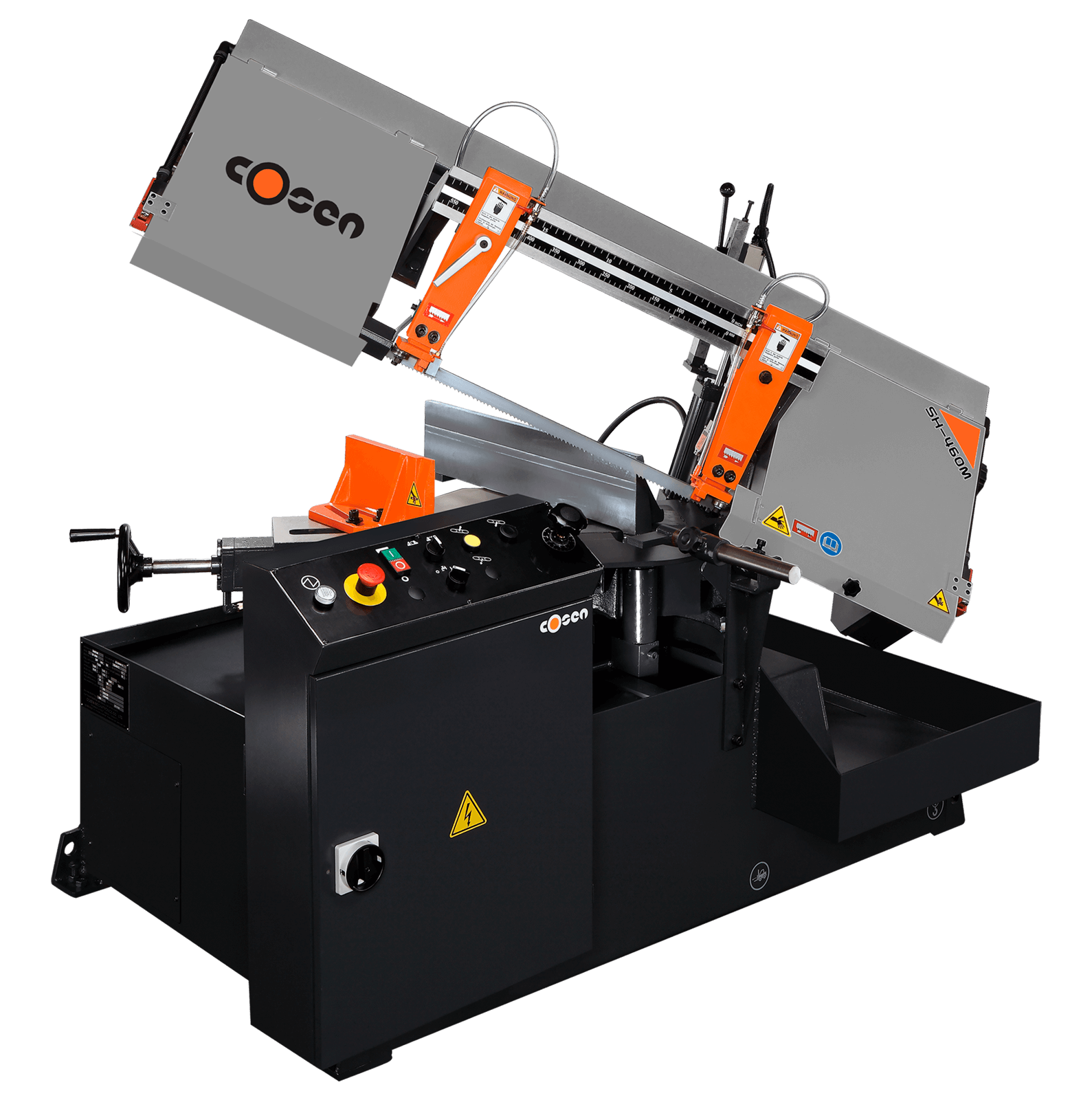

Description
Key Features
- Automatic head rise: the saw head lifts on its own after each cut, ready for the next piece.
- Four blade speeds: 75, 121, 190 and 305 ft/min from a variable pulley drive.
- Wide capacity: rectangular stock up to 18.1 in wide at 9.1 in tall.
- Cast iron vises: with an adjustable material stop.
- Feed control: an adjustable valve for down feed and pressure.
- Hinged scissor design: a hydraulic cylinder and precision-ground hinge support the saw frame, with rigid cast iron guide arms and carbide blade guides.
Specifications at a Glance
- Capacity, straight cut: 10 in round; 9.1 x 18.1 in rectangular
- Blade: 11 ft 6 in x 1 in x 0.035 in
- Blade motor: 2 hp
- Coolant tank: 10.6 gal
- Weight: 1,357 lb
Who It’s For
Fabrication shops cutting structural material up to 18.1 in wide in limited production runs.
Sales & Service from Icon
Icon Machine Tool sells Cosen machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
