Supplying the Latest Technology in Metal Working Equipment
Our products include laser cutting systems, CNC press brakes, CNC punching machines, folding machines, shears, waterjets, ironworkers, band and cold saws, deburring machines, beam and drill lines, press brake tooling, stamping presses, tube bending and notching, plasma and oxyfuel cutting systems, and insertion machines.
Latest Technology
Bust The Processing Bottleneck
Peddinghaus’ PeddiAssembler
The PeddiAssembler, powered by Zeman, is the absolute solution for steel beam assembly. This fabrication shop supercharger has been designed specifically to speed up one of the most time-consuming areas of the fabrication process.
All specifications are approximate and subject to verification. Comes shown as is.

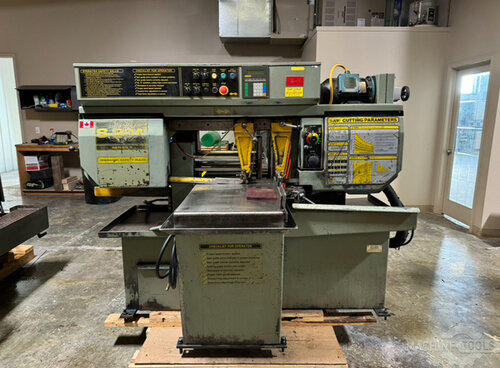

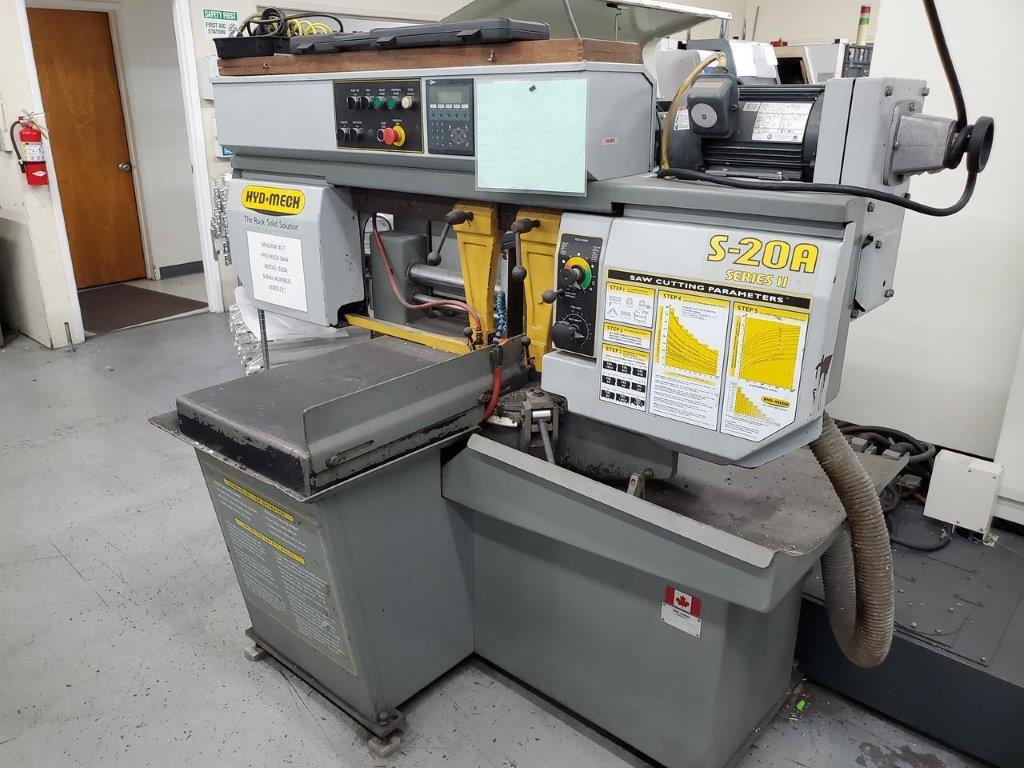

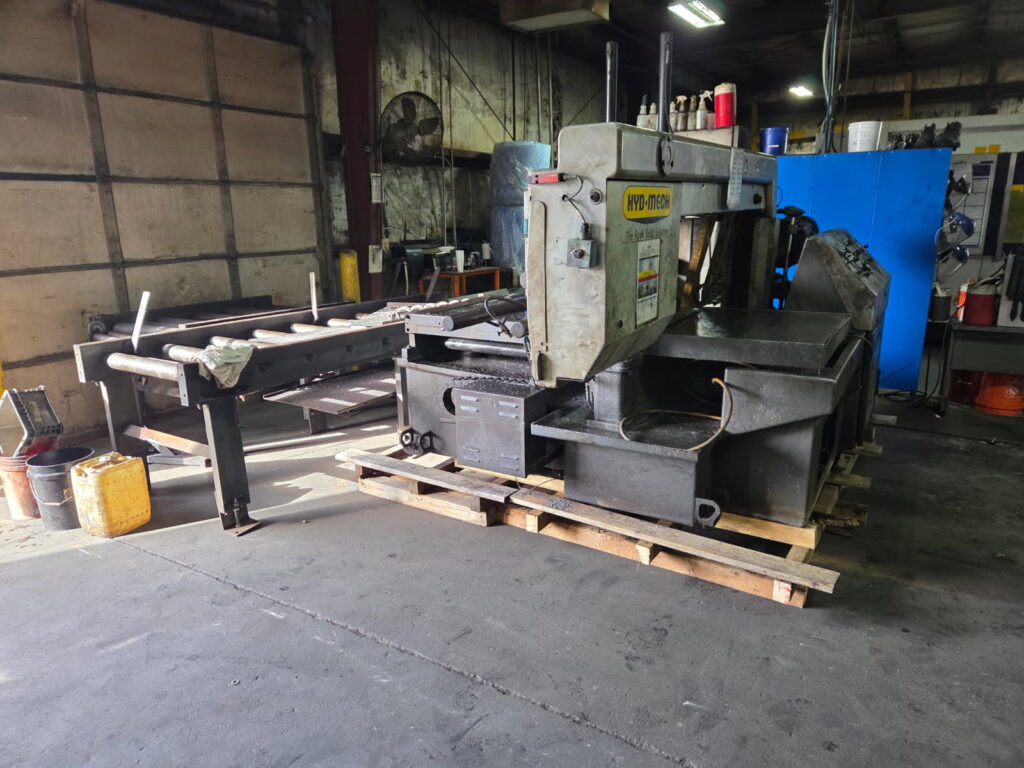

Capacity:
Head Tilt : +/- 45 Degrees
Capacity at 90 Degrees : 18" W X 18" H
Throat : 18"
Work Height : 22"
Blade Length : 180"
Blade Width : 2.25"
Blade Speed (Variable) : 60 - 380 SFPM
Table Area: 24" x 24"
Table Height: 40"
Cutting Pressure : 0 - 600LBS @ 100 PSI Air
General:
Air Required: 100 PSI
Machine Dimensions: 68" X 118" X 98" High
Machine Weight: 6000 lbs Approx.
Specifications:
Rectangular Capacity: 13" H 18" W
Round Capacity: 12”
Installed Dimensions: 81" Wide x 120" Long x 57" High
Approximate Shipping Weight: 3,000 lbs
All specifications are approximate and subject to verification. Comes shown as is.
We started our relationship with Icon Machine Tool in 2008 when we were looking to add a plasma table to our plant. By May of 2009, we had installed an Alltra PG14-6HD plasma table that we could handle two 5’ x 10’ plates of material. We've added a Trumpf 3030 CO2 laser in 2013, a Trumpf Tru Bend 5170 press brake in 2015, a Trumpf 3030 6kw fiber laser with a compact lift master. Icon has always been a phone call away to help us out.
Noland Bartley | Project Manager
Danuser, Fulton, MO
The laser has been awesome, what really impresses me is Piercing technology which allows us to be 50% more productive than our previous laser.
We are cutting 1/2” Stainless Steel at 30 Inches per minute without ever losing a pierce! We own two Trumpf lasers, and they have been great machines!
Gary Sample | Production Manager
Ozark Steel LLC, Tulsa, OK
Manufacturing and being a job shop here at I&M, we have all types of work come through the shop, and TRUMPF's flat lasers are second to none
Spencer Oliver | Laser Lead
I&M Machine and Fabrication Corp., St. Joseph, MO
Travis and I worked with John at Icon Machine Tool to source a new Trumpf 7050 press brake. His knowledge and experience in the machine tool industry allowed us to narrow down machine options to fit our particular needs. The quoting through machine delivery process was smooth and Icon provided regular updates to keep us informed. I would not hesitate to use John and Icon for future machine purchases.
