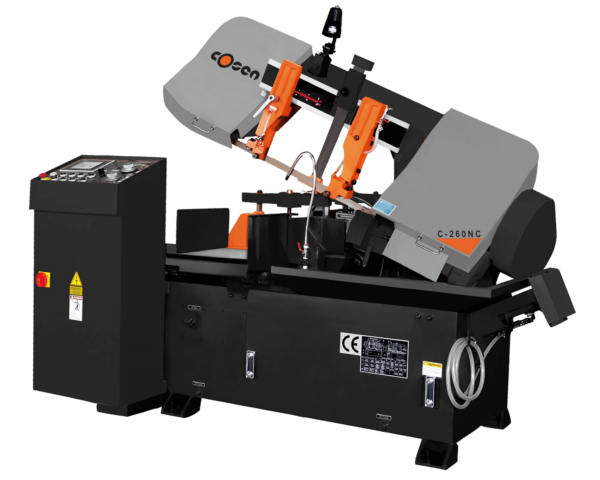

Description
Key Features
- Smart NC-100 control: stores up to 100 jobs with quantity and length of cut, and subtracts blade kerf automatically, so the operator never works out index counts by hand.
- 5.7 in HMI touchscreen: controls multiple indexing of material up to 999 in long.
- Variable blade speed: an inverter drive gives 66 to 328 ft/min from a 5 hp motor.
- Hydraulic blade tensioning: with carbide blade guides and bearings.
- Split-jaw hydraulic vise: the split jaw helps reduce burrs on the cut end.
- Feed control: precision valves for feed pressure and feed rate.
- Coolant and cleanup: adjustable flood coolant, an extra hose for cleaning the work bed and chip auger, and a motor-driven blade brush.
Specifications at a Glance
- Round capacity: 10.2 in
- Rectangular capacity (H x W): 10.2 x 11.8 in
- Blade: 12 ft x 1.25 in x 0.042 in
- Blade motor and speed: 5 hp, 66 to 328 ft/min
- Weight: 3,218 lb
Who It’s For
Production shops cutting bar, tube and solids to repeat lengths in volume, where automatic indexing frees up the operator.
