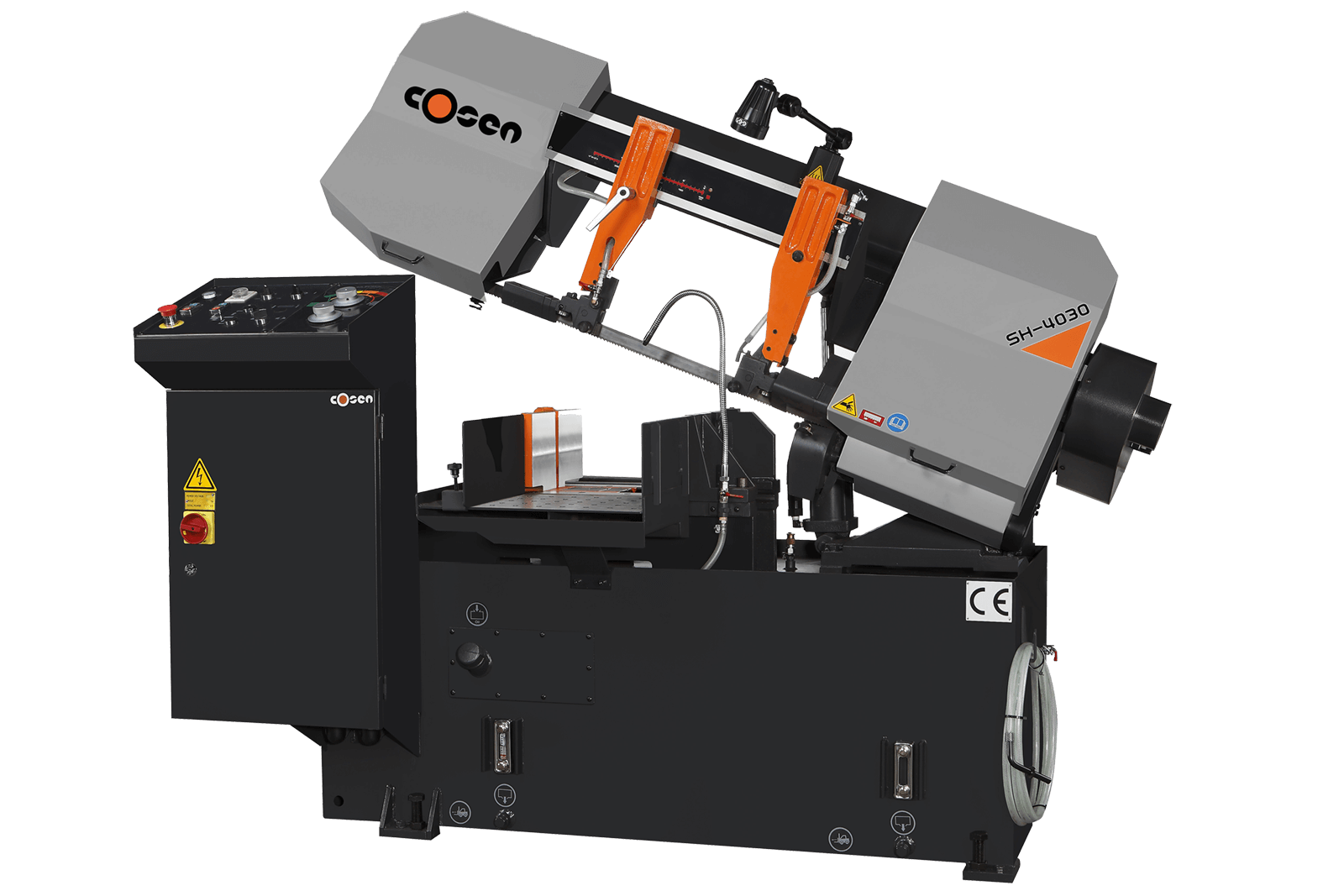

Cosen SH-4030

The Cosen SH-4030 is a semi-automatic scissor-style band saw for straight cuts in bar, tube and solids. It cuts up to 11.8 in round or 11.8 x 15.7 in rectangular, with a 5 hp motor, five blade speeds and a hydraulic split-jaw vise. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Five blade speeds: a five-step variable speed drive covers 69 to 298 ft/min.
  • Hinged scissor design: a hydraulic cylinder and precision-ground hinge support the saw frame, with an adjustable cast iron guide arm.
  • Hydraulic blade tensioning: with carbide blade guides and bearings.
  • Split-jaw hydraulic vise: the split jaw helps reduce burrs on the cut end.
  • Feed control: precision valves for feed pressure and feed rate.
  • Coolant and cleanup: adjustable flood coolant, an extra hose for cleaning the work bed and chip auger, and a motor-driven blade brush.

Specifications at a Glance

  • Round capacity: 11.8 in
  • Rectangular capacity (H x W): 11.8 x 15.7 in
  • Blade: 12 ft 6 in x 1.25 in x 0.042 in
  • Blade motor and speed: 5 hp, 69 to 298 ft/min
  • Weight: 2,259 lb

Who It’s For

Shops cutting bar, tube and solids up to 11.8 in straight that want hydraulic clamping and blade tensioning on a semi-automatic saw.
