Cosen SH-500M

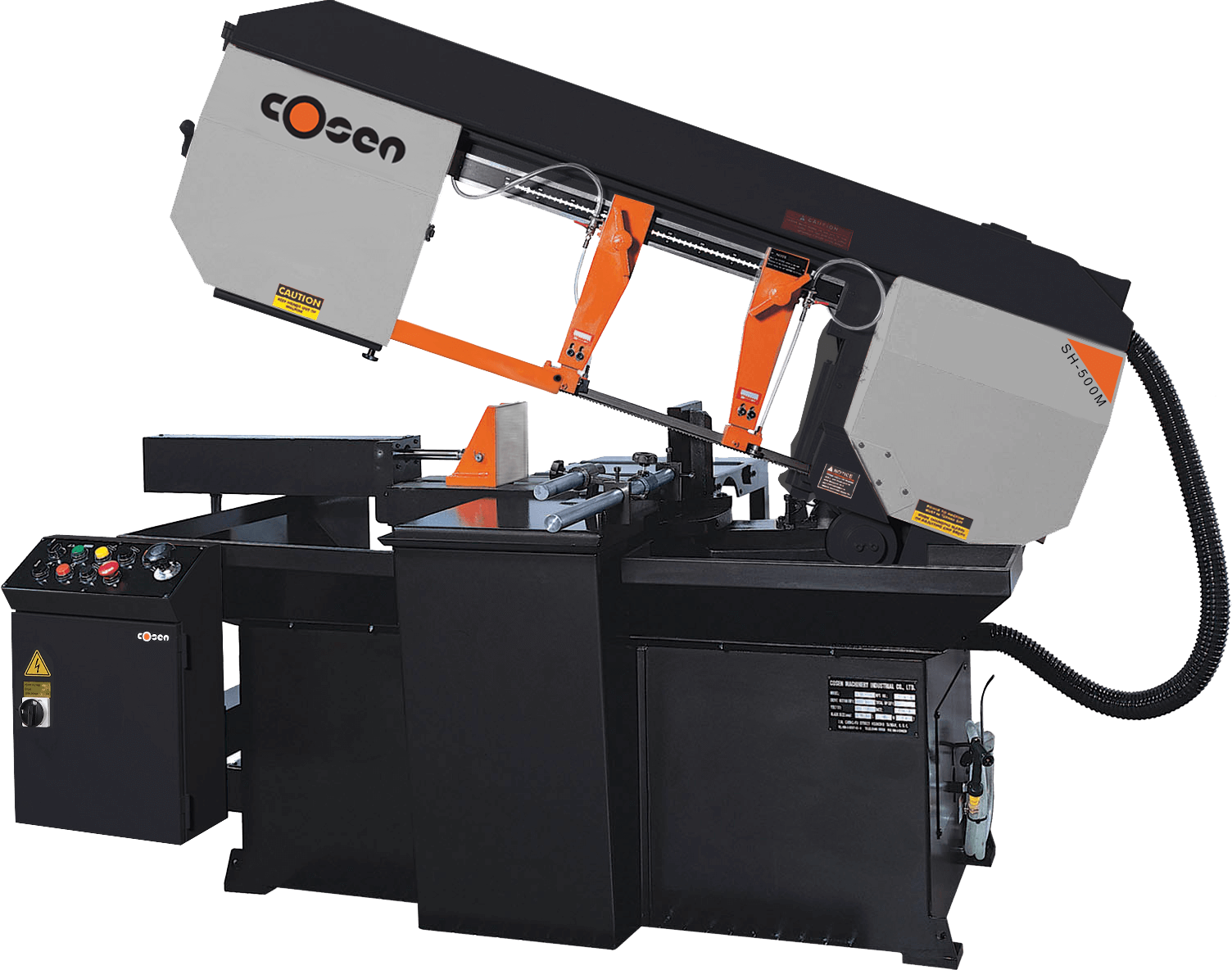

The Cosen SH-500M is a semi-automatic scissor-style miter band saw for fabrication work. It cuts up to 13 in round or 11 x 17.3 in rectangular stock straight, miters to 60°, and runs a 3 hp motor with four blade speeds. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Mitering head: straight cuts or miters up to 60°.
  • Hinged scissor design: a hydraulic cylinder and precision-ground hinge support the saw frame, with rigid cast iron guide arms.
  • Four blade speeds: 75, 114, 164 and 246 ft/min (60 Hz) from a variable pulley drive.
  • Hydraulic vises: cast iron hydraulic vises and an adjustable material stop.
  • Heavy-duty gearbox: built to take high side loads without heat distortion.
  • Coolant and cleanup: adjustable flood coolant, an extra hose for cleaning the work bed and chip auger, and a motor-driven blade brush.

Specifications at a Glance

  • Capacity, straight cut: 13 in round; 11 x 17.3 in rectangular
  • Capacity at 45°: 11.8 in round; 11 x 9.4 in rectangular
  • Capacity at 60°: 8.6 in round; 11 x 8.6 in rectangular
  • Blade: 13 ft 7 in x 1 in x 0.035 in, 3 hp motor
  • Weight: 1,980 lb

Who It’s For

Fabrication shops that want a mid-size saw for straight and miter cuts in bar, tube and structural shapes up to 13 in.

Sales & Service from Icon

Icon Machine Tool sells Cosen machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Talk to a Specialist: (816) 300-0019
