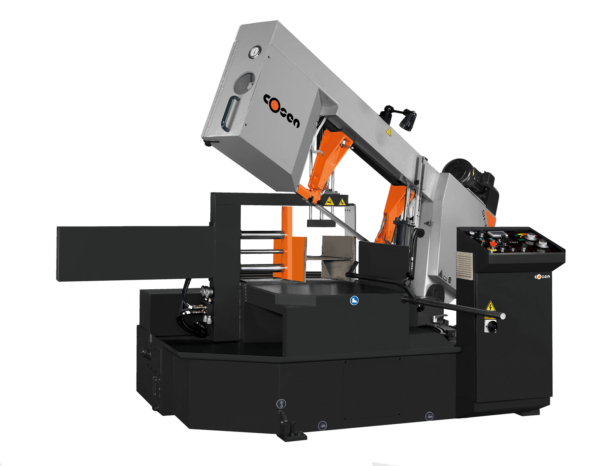

Cosen SH-650M

The Cosen SH-650M is a semi-automatic miter band saw for fabrication production. It cuts up to 16.5 in round or 16 x 25.6 in rectangular straight, miters to 60°, and runs a 7.5 hp motor with variable blade speed and automatic blade tensioning. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Mitering head: straight cuts or miters up to 60°.
  • Variable blade speed: any speed from 50 to 328 ft/min.
  • Automatic blade tensioning: with carbide blade guides and bearings.
  • Hardened worm gear drive: Cosen’s choice for durability on this saw.
  • Hydraulic vises: cast iron hydraulic vises and an adjustable material stop.
  • Feed control: dual valves for feed pressure and feed rate, with hydraulic saw bow controls.
  • Coolant and cleanup: adjustable flood coolant, an extra hose for cleaning the work bed and chip auger, and a motor-driven blade brush.

Specifications at a Glance

  • Capacity, straight cut: 16.5 in round; 16 x 25.6 in rectangular
  • Capacity at 45°: 16 in round; 16 x 16 in rectangular
  • Capacity at 60°: 10 in round; 16 x 10 in rectangular
  • Blade: 17 ft 4.6 in x 1.25 in x 0.042 in, 7.5 hp motor
  • Weight: 3,968 lb

Who It’s For

Fabrication shops cutting bar, tube and structural shapes up to 16 in that want straight and miter cuts on one semi-automatic saw.

Sales & Service from Icon

Icon Machine Tool sells Cosen machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Talk to a Specialist: (816) 300-0019
