Cosen MH-270M

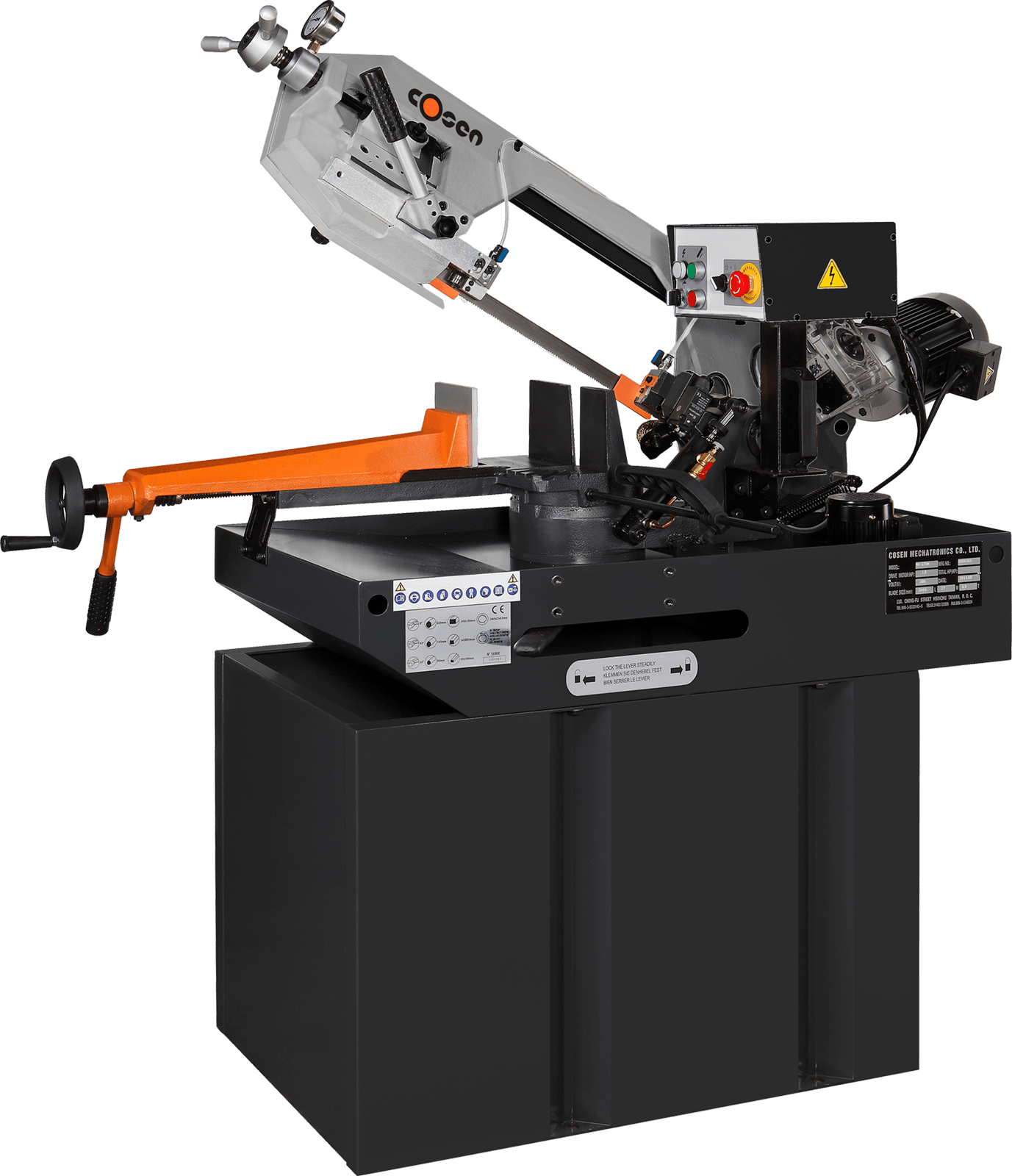

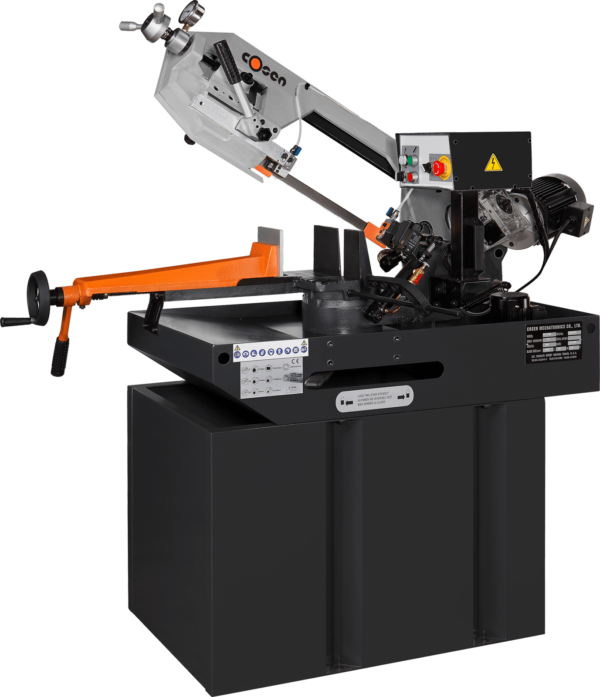

The Cosen MH-270M is a compact manual miter band saw for small shops, maintenance departments and schools. It cuts up to 8.9 in round or 6 x 9.45 in rectangular stock straight, and its head miters up to 60°. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Mitering head: swivels up to +60° for angled cuts.
  • Stepless blade speed: set any speed from 125 to 250 ft/min (60 Hz) to suit the material.
  • AutoCut mode: an adjustable feed rate for the cut, plus a quick-approach mode that brings the blade to the work.
  • Hardened worm gear drive: Cosen’s choice for durability on this saw.
  • Quick clamp vise: a heavy-duty cast iron vise that clamps and releases quickly between cuts.
  • Blade care: manual blade tensioning with a pressure gauge, carbide blade guides and bearings, and a chip brush.

Specifications at a Glance

  • Capacity, straight cut: 8.9 in round; 6 x 9.45 in rectangular
  • Capacity at +45°: 5.7 in round; 5.7 x 8.2 in rectangular
  • Capacity at +60°: 3.5 in round; 3.5 x 7 in rectangular
  • Blade: 8 ft 1 in x 1 in x 0.035 in, 1.5 hp motor
  • Weight: 550 lb

Who It’s For

Small and medium machine shops, maintenance shops, fabrication shops and schools that cut solids, tube and small shapes in limited runs.

Sales & Service from Icon

Icon Machine Tool sells Cosen machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Talk to a Specialist: (816) 300-0019
