Cosen SH-710LDM

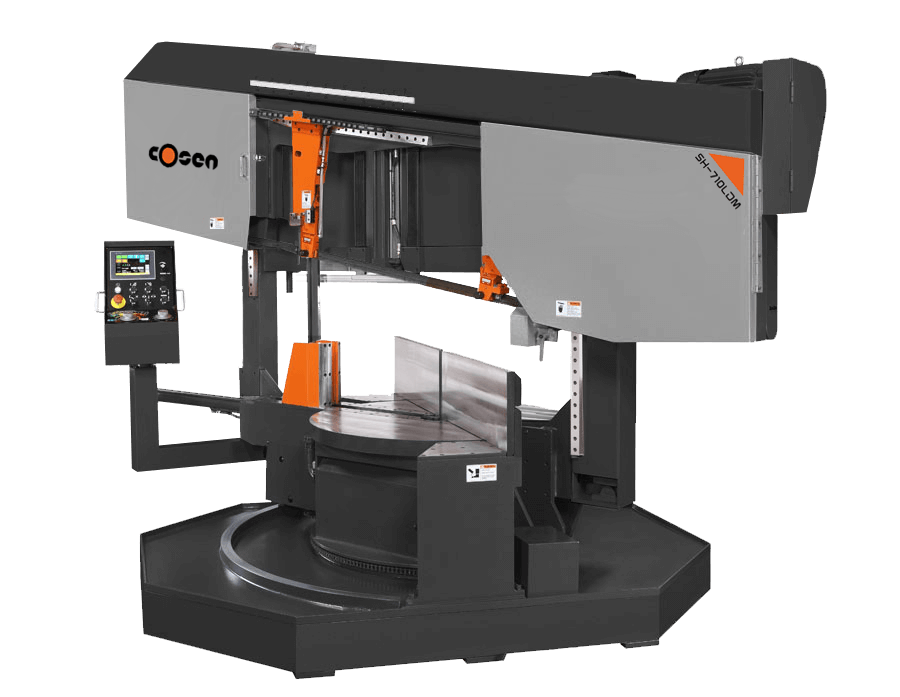

The Cosen SH-710LDM is a semi-automatic structural miter band saw. It cuts up to 18.5 in round or 16.5 x 28 in rectangular straight, miters to 60° both ways, and has a 5.7 in touchscreen and a vise that moves with the guide arm. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Miters both ways: a heavy-duty cast iron swivel base for straight cuts and miters up to ±60°.
  • Linear guide way system: the saw head runs on precision linear guides, with a cast iron guide arm.
  • 5.7 in HMI touchscreen: with dual valves for feed pressure and feed rate, on an adjustable control panel arm.
  • Synchronized vise: the cast iron hydraulic vise moves with the guide arm, and its split jaw helps reduce burrs.
  • Variable blade speed: an inverter drive gives any speed from 79 to 394 ft/min, with hydraulic blade tensioning.
  • Coolant and cleanup: adjustable flood coolant, an extra hose for cleaning the work bed and chip auger, and a motor-driven blade brush.

Specifications at a Glance

  • Capacity, straight cut: 18.5 in round; 16.5 x 28 in rectangular
  • Capacity at 45°: 16.5 in round; 16.5 x 18 in rectangular
  • Capacity at 60°: 12.6 in round; 16.5 x 12.6 in rectangular
  • Blade: 21 ft 5.5 in x 1.5 in x 0.050 in, 7.5 hp motor
  • Weight: 6,393 lb

Who It’s For

Fabricators cutting structural shapes, tube and solids that need miter cuts in both directions.

Sales & Service from Icon

Icon Machine Tool sells Cosen machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Talk to a Specialist: (816) 300-0019
