Cosen SH-1300LDM

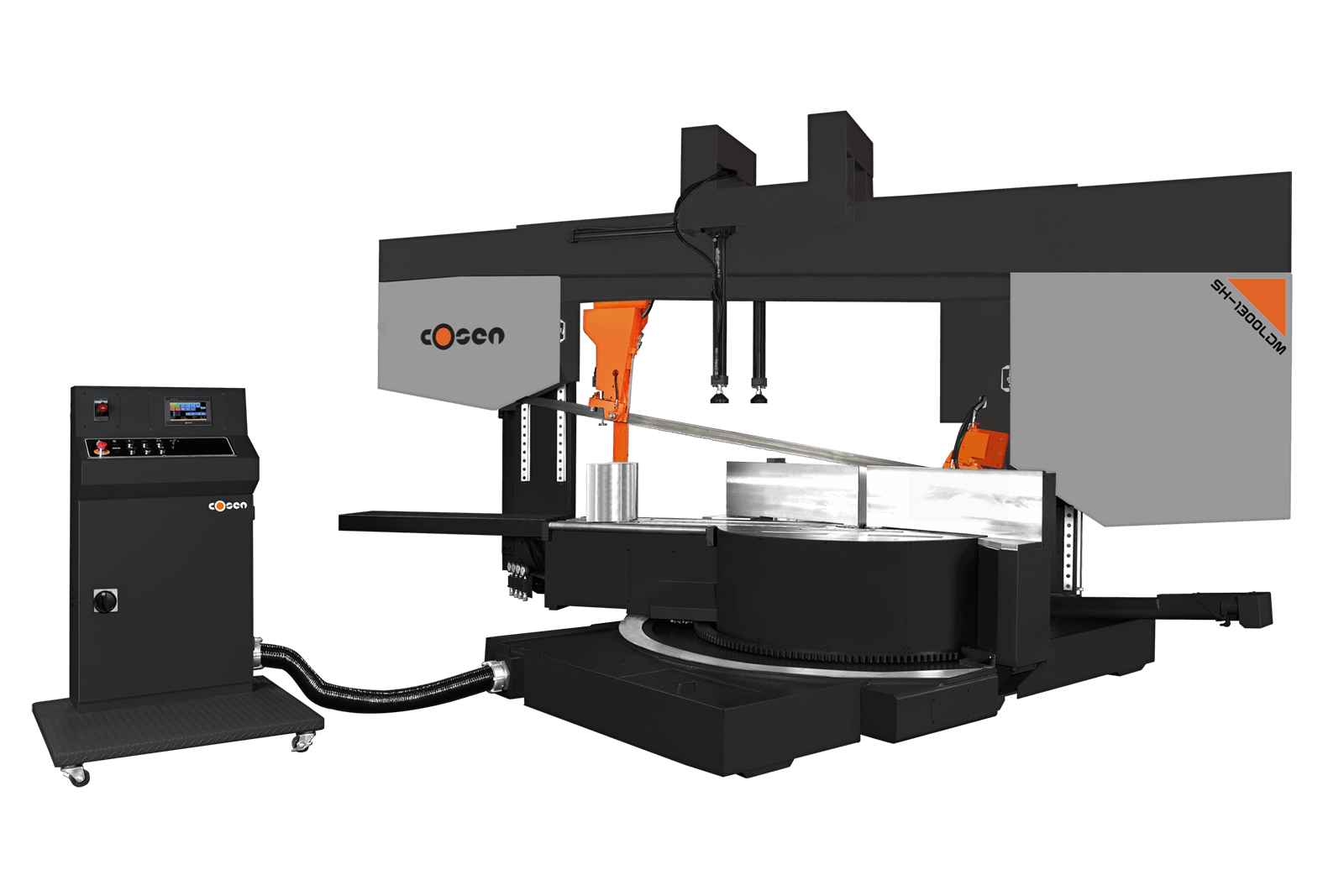

The Cosen SH-1300LDM is a large semi-automatic miter band saw for heavy stock. It cuts up to 26 in round or 26 x 51.1 in rectangular straight, miters to 60° both ways on a cast iron swivel base, and runs a 20 hp blade motor. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Miters both ways: a heavy-duty cast iron swivel base turns for straight cuts and miters up to ±60°.
  • Linear guide way design: the saw head runs on precision linear guides, with a hydraulic-powered cast iron guide arm.
  • Variable blade speed: an inverter drive gives any speed from 50 to 393 ft/min.
  • Hydraulic blade tensioning: with carbide blade guides and bearings.
  • Split-jaw hydraulic vise: the split jaw helps reduce burrs on the cut end.
  • Feed control: separate valves for feed pressure and feed rate, run from a tethered control panel.
  • Coolant and cleanup: adjustable flood coolant, an extra hose for cleaning the work bed and chip auger, and a motor-driven blade brush.

Specifications at a Glance

  • Capacity, straight cut: 26 in round; 26 x 51.1 in rectangular
  • Capacity at ±45°: 26 in round; 26 x 32.3 in rectangular
  • Capacity at ±60°: 19.5 in round; 26 x 19.5 in rectangular
  • Blade: 33 ft 8 in x 2.625 in x 0.063 in, 20 hp motor
  • Weight: 23,100 lb

Who It’s For

Fabricators and production shops cutting large beams, tube and solids up to 26 in that need miters in both directions.
