Cosen C-650MNC

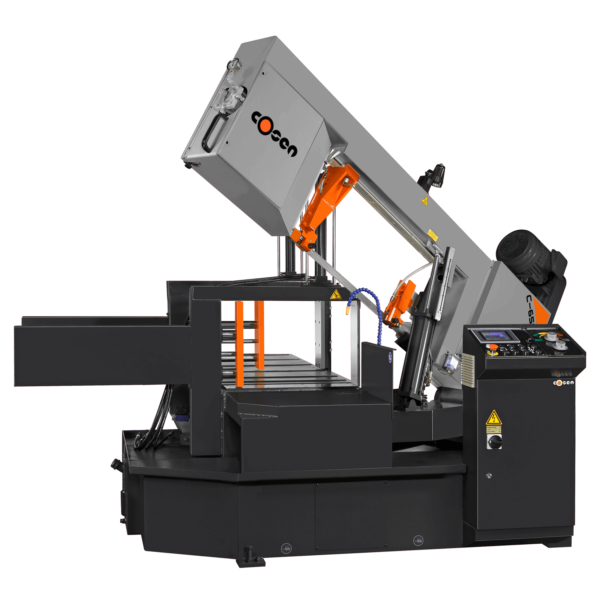

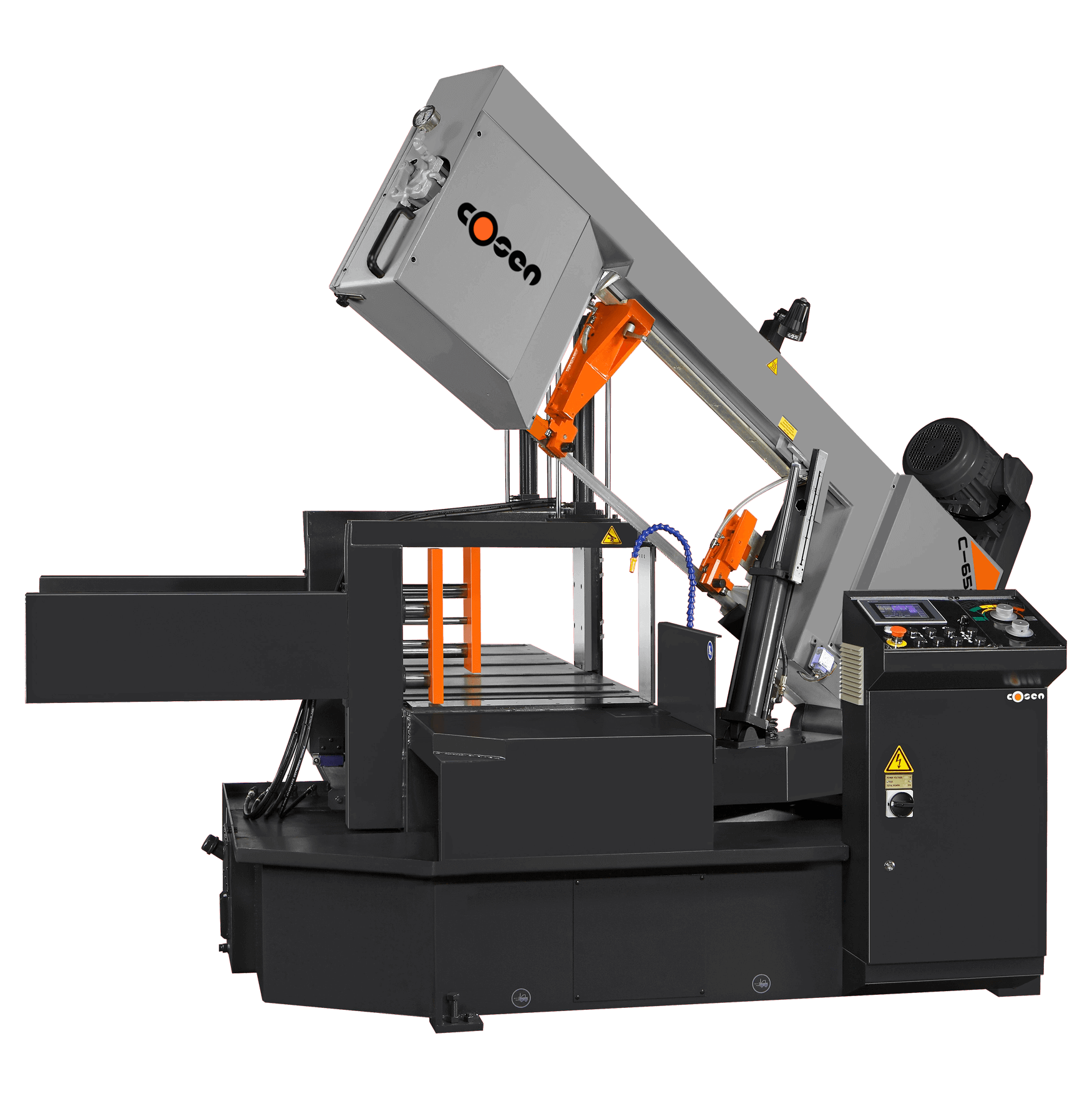

The Cosen C-650MNC is an automatic miter band saw with Cosen’s Smart NC-100 control. It stores up to 100 jobs, indexes material automatically, cuts up to 16.5 in round or 15 x 25.6 in rectangular straight, and miters to 60°. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Smart NC-100 control: stores up to 100 jobs with quantity and length of cut, and subtracts blade kerf automatically, so the operator never works out index counts by hand.
  • 5.7 in HMI touchscreen: controls multiple indexing of material up to 999 in long.
  • Miter cutting: straight cuts and miters from 0 to +60°.
  • Variable blade speed: an inverter drive gives 82 to 410 ft/min from a 7.5 hp motor, with hydraulic blade tensioning.
  • Hydraulic vises: cast iron hydraulic vises, with valves for feed pressure and feed rate.
  • Coolant and cleanup: adjustable flood coolant, an extra hose for cleaning the work bed and chip auger, and a motor-driven blade brush.

Specifications at a Glance

  • Capacity, straight cut: 16.5 in round; 15 x 25.6 in rectangular
  • Capacity at 45°: 16 in round; 16 x 16 in rectangular
  • Capacity at 60°: 10 in round; 16 x 10 in rectangular
  • Blade: 17 ft 5 in x 1.5 in x 0.050 in, 7.5 hp motor
  • Weight: 6,332 lb

Who It’s For

Production and fabrication shops cutting larger bar, tube and shapes to repeat lengths, including mitered parts, where automatic indexing frees up the operator.

Sales & Service from Icon

Icon Machine Tool sells Cosen machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Talk to a Specialist: (816) 300-0019
