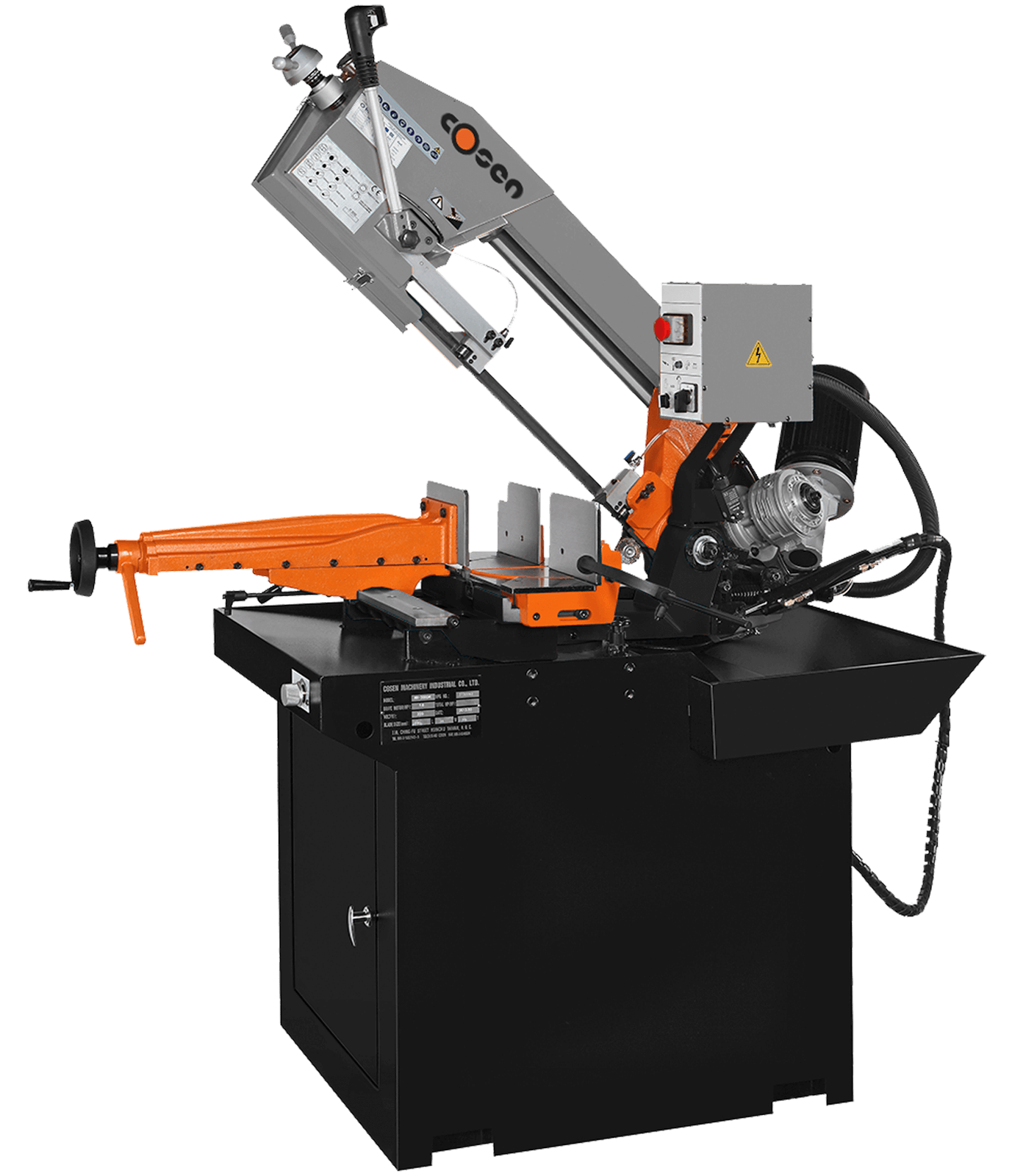

Cosen MH-300DM

The Cosen MH-300DM is a manual dual-miter band saw for small and medium shops. It cuts up to 10.2 in round or 9 x 11.6 in rectangular stock straight, and its head miters to +60° one way and -45° the other. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Dual mitering head: swivels to +60° one way and -45° the other, so you can miter in both directions on one saw.
  • AutoCut mode: an adjustable feed rate for the cut, plus a quick-approach mode that brings the blade to the work.
  • Hydraulic down feed: an adjustable down-feed valve sets how fast the blade moves through the cut.
  • Quick clamp vise: a heavy-duty cast iron vise that clamps and releases quickly between cuts.
  • Two blade speeds: 122 and 231 ft/min from a direct-drive gearbox.
  • Blade care: manual blade tensioning with a pressure gauge, carbide blade guides and bearings, and a chip brush.
  • Flood coolant: adjustable flood coolant with a built-in drip pan.

Specifications at a Glance

  • Capacity, straight cut: 10.2 in round; 9 x 11.6 in rectangular
  • Capacity at +45°: 9.4 in round; 8.3 x 8.9 in rectangular
  • Capacity at +60°: 6.29 in round; 5.1 x 6.3 in rectangular
  • Capacity at -45°: 9.4 in round; 7.5 x 7.5 in rectangular
  • Blade: 9 ft 8.7 in x 1 in x 0.035 in, 1.5 hp motor
  • Weight: 704 lb

Who It’s For

Small and medium machine shops, maintenance shops, fabrication shops and schools that cut solids, tube and shapes in limited runs and need miters in both directions.

Sales & Service from Icon

Icon Machine Tool sells Cosen machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Cosen Spec Sheet (PDF)  Talk to a Specialist: (816) 300-0019
