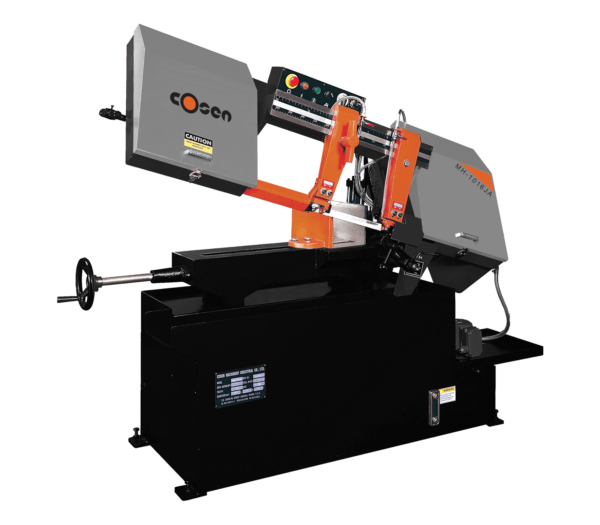

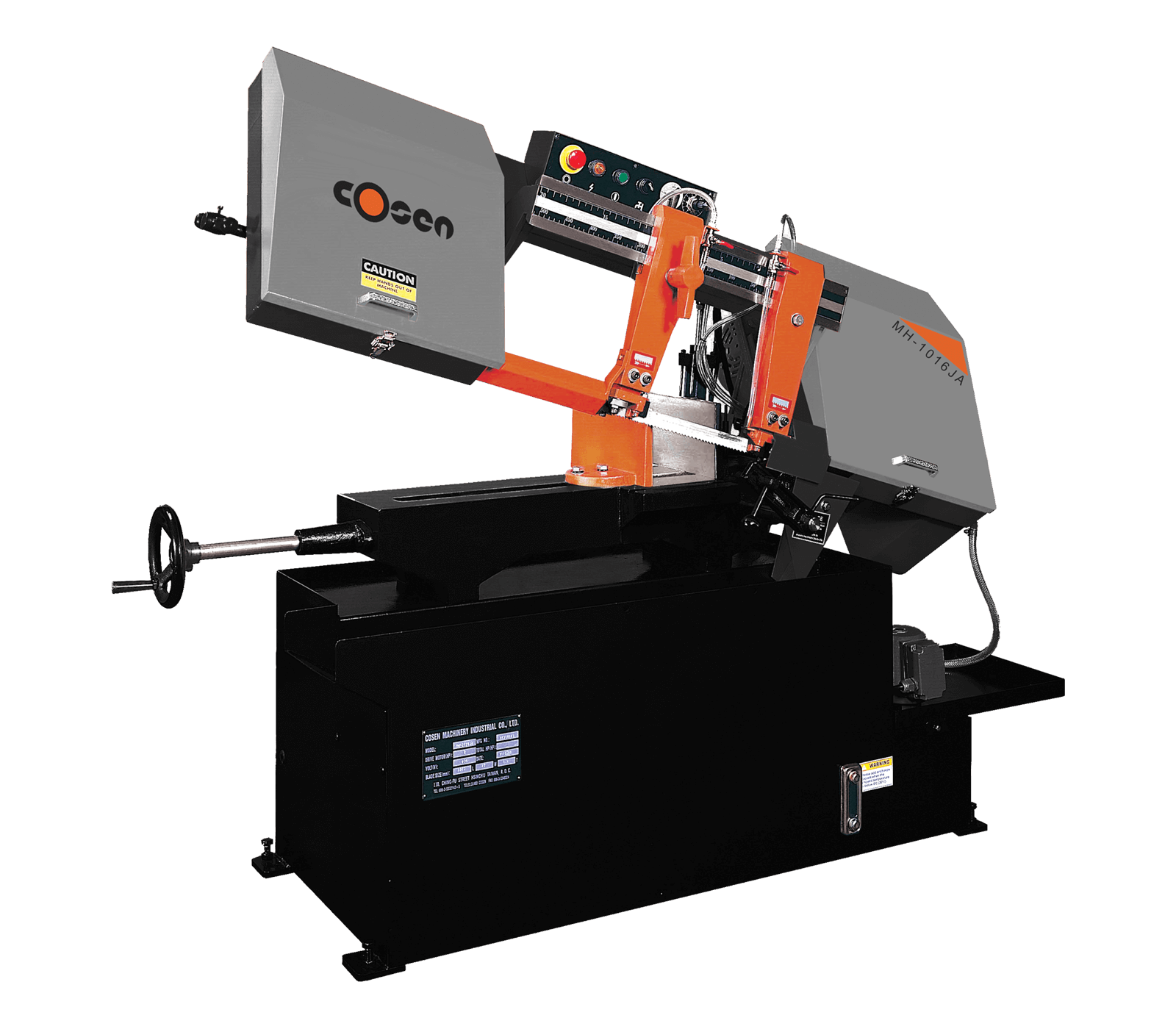

Cosen MH-1016JA

The Cosen MH-1016JA is a manual scissor-style band saw for small shops, maintenance departments and schools. It cuts up to 10 in round or 9 x 14.6 in rectangular, and its vise rotates for 45° cuts. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Rotating vise: the cast iron vise turns so you can make 45° cuts.
  • Hydraulic down feed: an adjustable down-feed control sets how fast the blade moves through the cut.
  • Four blade speeds: 75, 121, 190 and 305 ft/min (60 Hz).
  • Hardened worm gear drive: Cosen’s choice for durability on this saw.
  • Blade care: carbide blade guides and bearings for blade support, and a chip brush.
  • Flood coolant: an adjustable flood coolant system.

Specifications at a Glance

  • Round capacity: 10 in
  • Rectangular capacity (H x W): 9 x 14.6 in
  • Blade: 11 ft x 1 in x 0.035 in
  • Blade motor: 2 hp
  • Weight: 882 lb

Who It’s For

Small and medium machine shops, maintenance shops, fabrication shops and schools that cut solids, tube and shapes in limited runs.

Sales & Service from Icon

Icon Machine Tool sells Cosen machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Talk to a Specialist: (816) 300-0019
