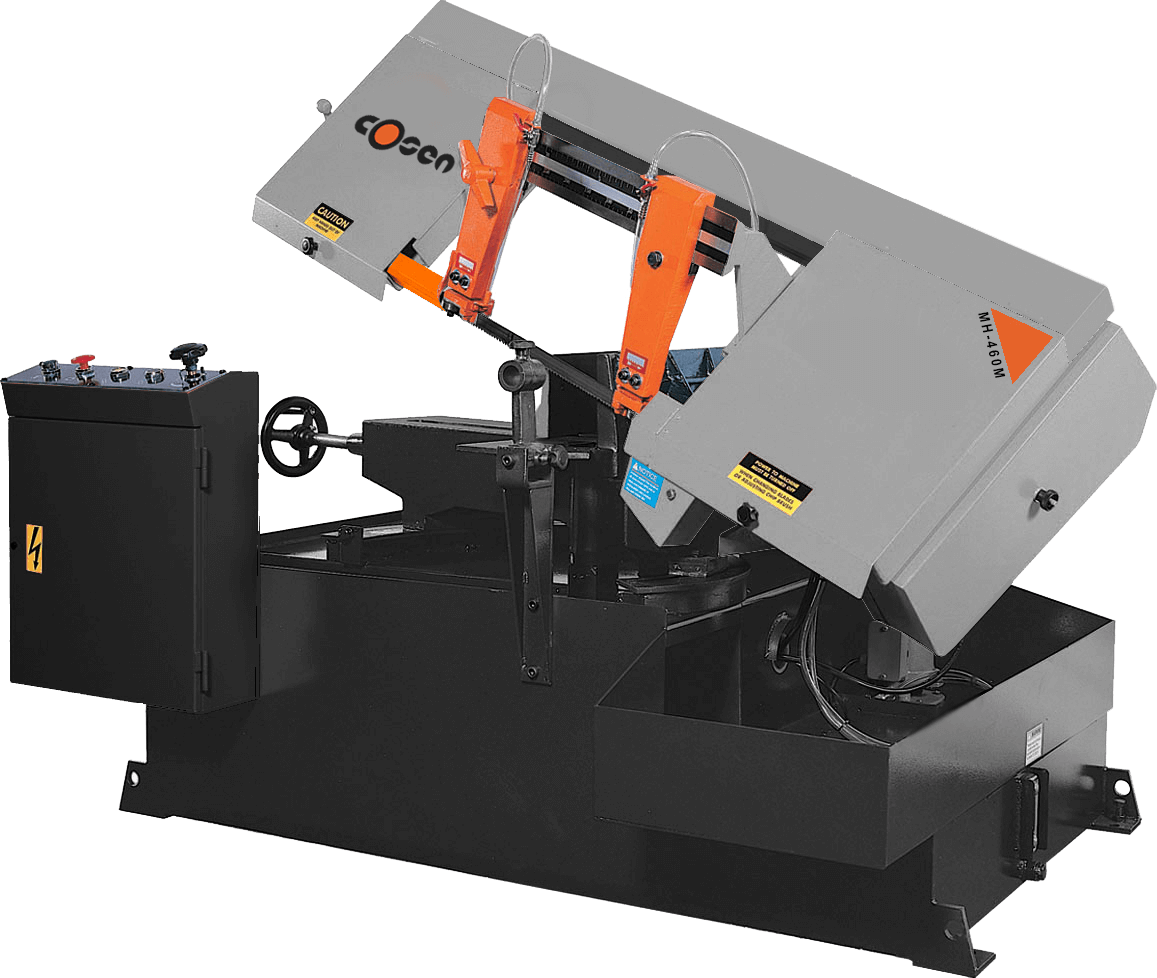

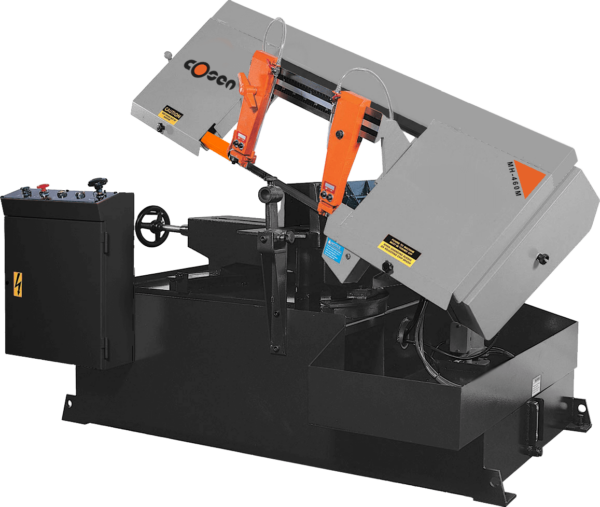

Cosen MH-460M

The Cosen MH-460M is a scissor-style band saw for structural material, built on a heavy-duty swivel center frame that makes miter setup easier. It cuts up to 10 in round or 9.1 x 18.1 in rectangular straight, with four blade speeds and a 2 hp motor. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Swivel center frame: a heavy-duty swivel frame makes miter cuts easier to set up.
  • Four blade speeds: 75, 121, 190 and 305 ft/min from a variable pulley drive.
  • Wide capacity: rectangular stock up to 18.1 in wide at 9.1 in tall.
  • Cast iron vises: with an adjustable material stop.
  • Feed control: an adjustable valve for down feed and pressure.
  • Hinged scissor design: a hydraulic cylinder and precision-ground hinge support the saw frame, with rigid cast iron guide arms and carbide blade guides.

Specifications at a Glance

  • Capacity, straight cut: 10 in round; 9.1 x 18.1 in rectangular
  • Blade: 11 ft 6 in x 1 in x 0.035 in
  • Blade motor: 2 hp
  • Coolant tank: 10.6 gal
  • Weight: 1,433 lb

Who It’s For

Limited-run production and tool room work on structural material up to 18.1 in wide.

Sales & Service from Icon

Icon Machine Tool sells Cosen machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Talk to a Specialist: (816) 300-0019
