Ercolina TB80 Top Bender

The Ercolina TB80 Top Bender is a rotary draw bender for tube up to 3 in (.120 wall), Schedule 40 pipe up to 2-1/2 in and square tube up to 2-1/2 in. It has a heavy-duty steel gear case, bends right or left, and is mandrel ready with an optional accessory. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

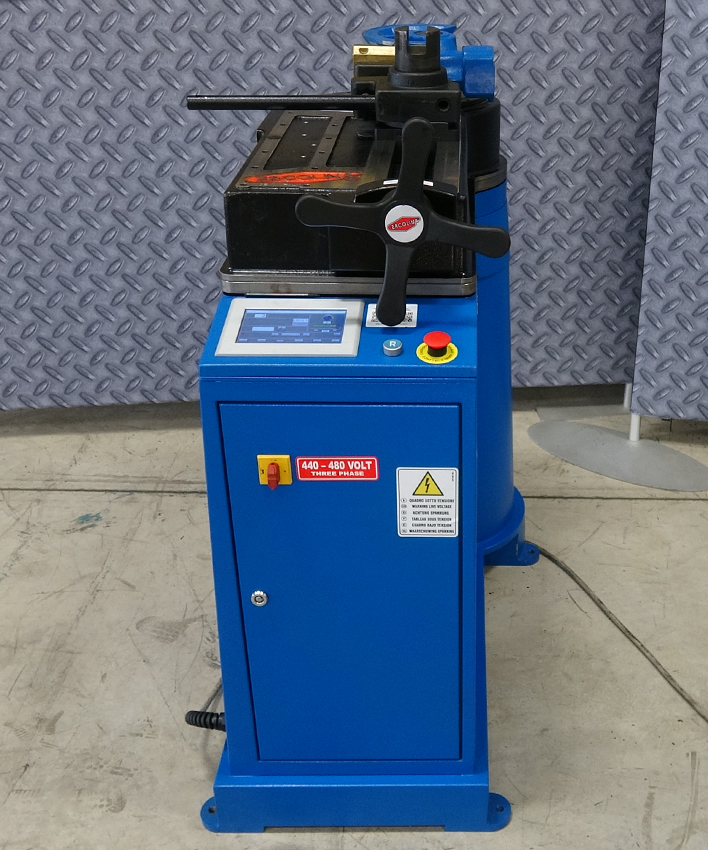

  • Touchscreen control: an icon menu for automatic and manual modes, programming in inches or metric, diagnostics and multiple languages.
  • Bend control: digital display of bend angle and speed, with independent springback and speed compensation for each bend.
  • Quick-change tooling: with multiple radii available.

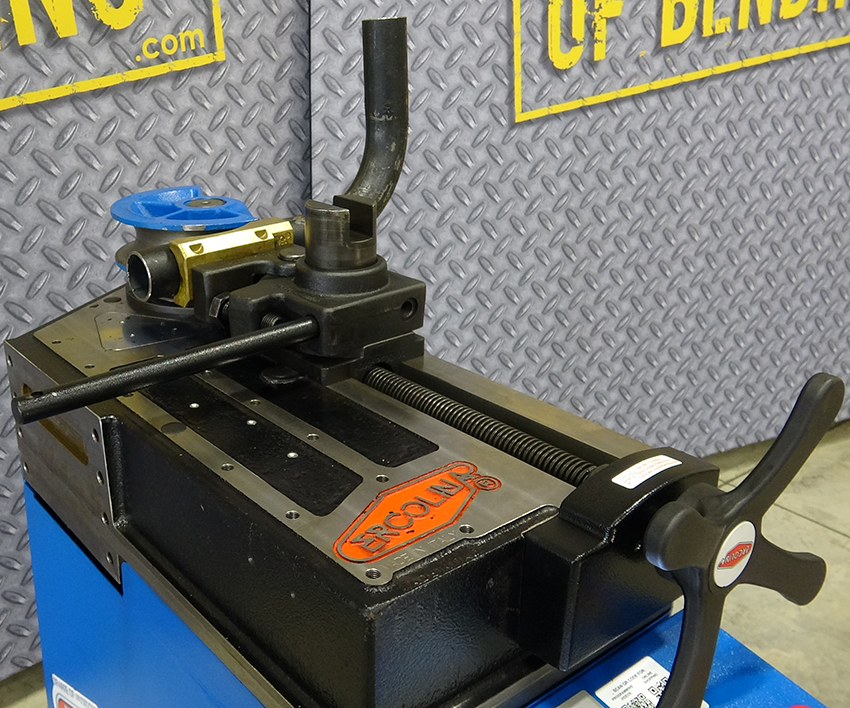

  • Swing-away counterbending die vise: for easy material handling, with die position monitored electronically.
  • Heavy-duty steel gear case: bends right or left, with no hydraulic components for quiet operation.
  • Mandrel ready: with an optional accessory.

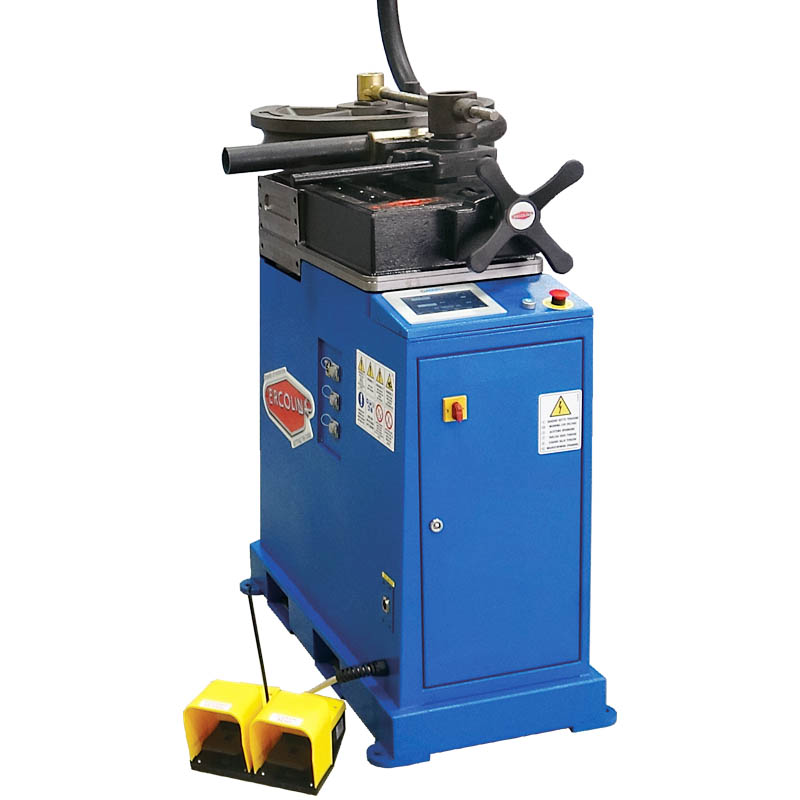

  • Foot pedal: controls bend and return.

Specifications at a Glance

  • Tube: up to 3 in, .120 wall
  • Pipe: up to 2-1/2 in Sch. 40
  • Square tube: up to 2-1/2 in, .125 wall
  • Centerline radius: as small as 2D; up to 16-1/2 in
  • Power: 3-phase
  • Size and weight: 20 x 34 x 47 in; 980 lb

Who It’s For

Fabricators bending tube, pipe, squares and solids up to 3 in, including parts that need a mandrel.
