Ercolina TB130 Top Bender

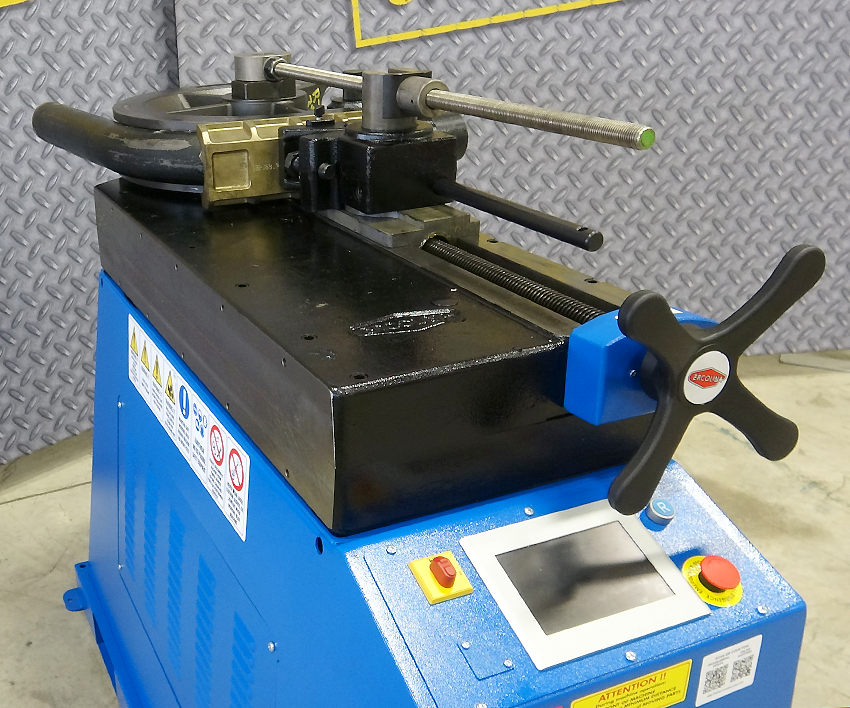

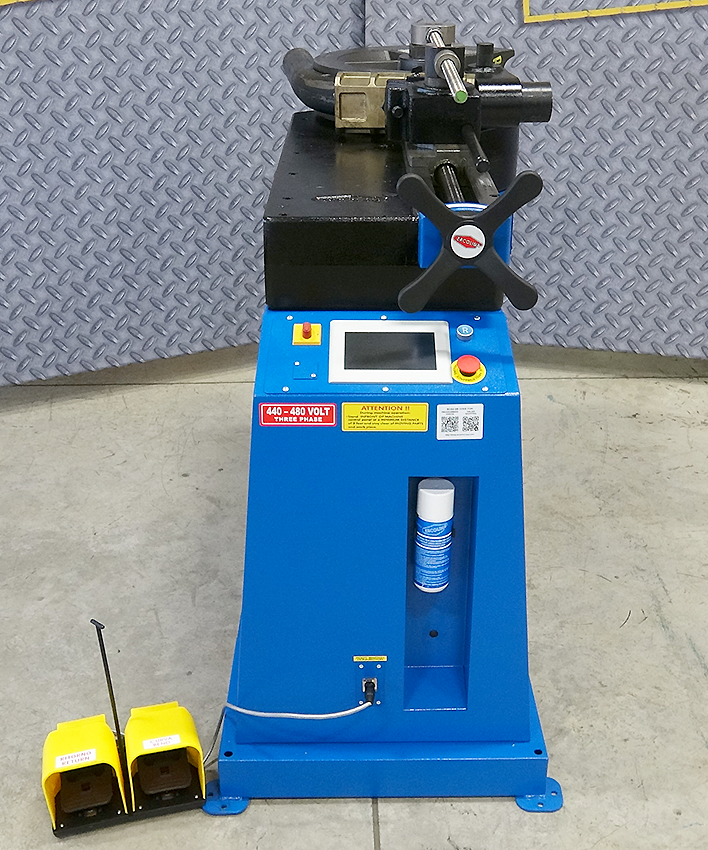

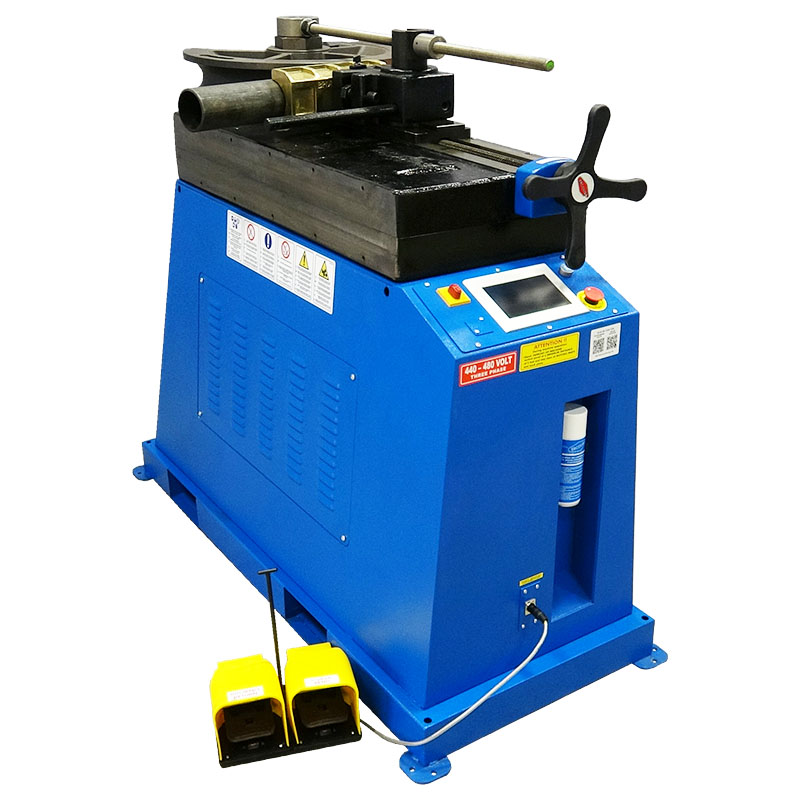

The Ercolina TB130 Top Bender is a rotary draw bender for tube up to 5 in, Schedule 40 pipe up to 4 in and square tube up to 4 in (.187 wall), with centerline radii up to 27-1/2 in. It has touchscreen programming and a heavy-duty steel gear case with no hydraulics. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Touchscreen programming: sets bend angle, with system diagnostics in multiple languages and unlimited program storage with USB.
  • Springback compensation: with a digital display of bend angle.
  • Quick-change tooling: with multiple radii available.
  • Counterbending die: position monitored electronically for accuracy and repeatability.
  • Heavy-duty steel gear case: with no hydraulic components.
  • Foot pedal: controls bend and return.

Specifications at a Glance

  • Tube: up to 5 in
  • Pipe: up to 4 in Sch. 40
  • Square tube: up to 4 in, .187 wall
  • Centerline radius: as small as 2D; up to 27-1/2 in
  • Power: 220V or 480V 3-phase
  • Size and weight: 34 x 34 x 47 in; 1,330 lb

Who It’s For

Fabricators bending large tube, pipe and square tube up to 5 in, including large-radius bends.

Sales & Service from Icon

Icon Machine Tool sells Ercolina machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Ercolina Catalog Page (PDF)  Talk to a Specialist: (816) 300-0019
