Ercolina TB60-TC Top Bender

The Ercolina TB60-TC Top Bender is a programmable rotary draw bender for tube up to 2-1/2 in, Schedule 40 pipe up to 2 in and square tube up to 2 in. It stores unlimited bend programs on a touchscreen, runs on 220V single-phase power and has no hydraulics. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

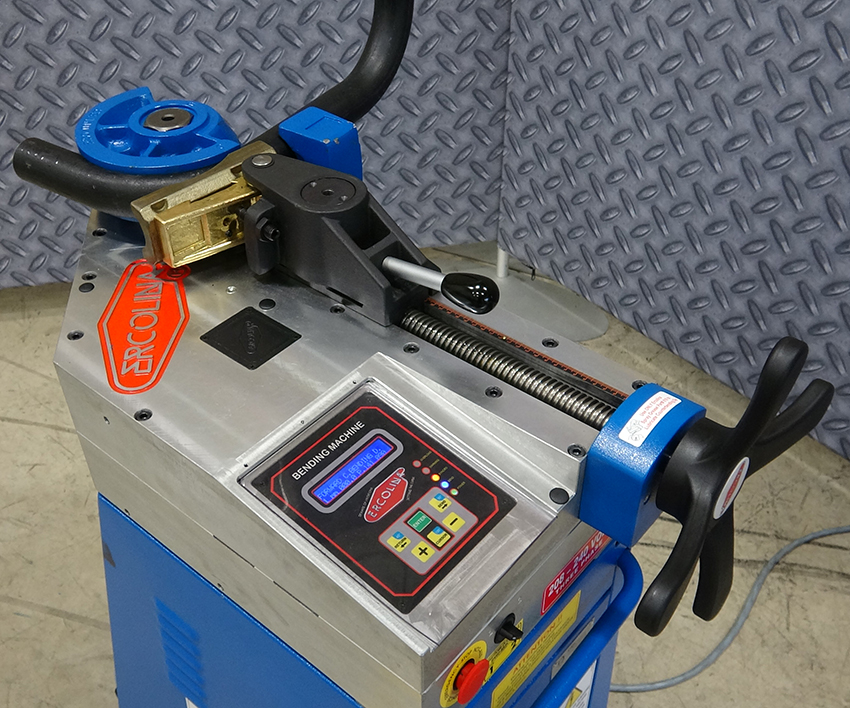

  • Touchscreen control: a Windows-based touchscreen shows position, status and alarms, and sets bend angle, springback and bend speed for each angle.
  • Unlimited program storage: for quick recall of repeat jobs.
  • Automatic speed control: adjusts bending speed through the cycle and stops at the programmed angle.
  • Swing-away counterbending die vise: patented, for easy loading and unloading, with die position monitored electronically.

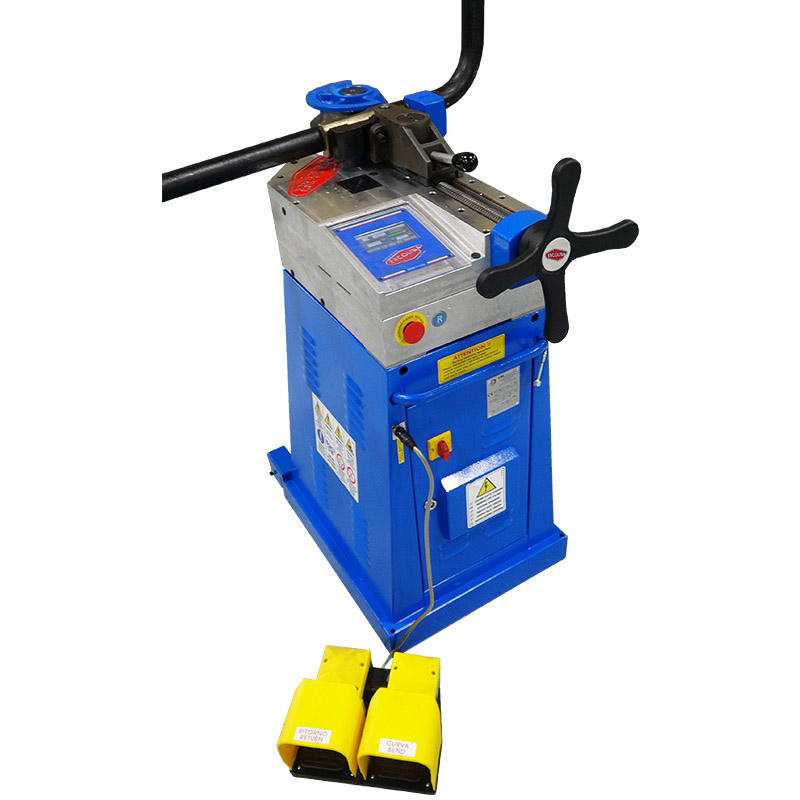

  • Right- or left-hand bending: with the vise accessory; start a bend from the control panel or a foot pedal.
  • A40-P positioner: accepts Ercolina’s two-axis positioning table for multiple and sequential bends.
  • No hydraulics: electromechanical drive with no hydraulic components.

Specifications at a Glance

  • Tube: up to 2-1/2 in
  • Pipe: up to 2 in Sch. 40
  • Square tube: up to 2 in, .125 wall
  • Centerline radius: as small as 2D; up to 15 in
  • Power: 220V single-phase
  • Size and weight: 27 x 15 x 36 in; 430 lb

Who It’s For

Shops bending handrails, frames and repeat parts in tube and pipe up to 2-1/2 in that want stored programs.

Sales & Service from Icon

Icon Machine Tool sells Ercolina machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
