Scotchman Non-Ferrous Cold Saws

Scotchman non-ferrous cold saws cut aluminum, copper and plastic with carbide blades at 3,000 rpm. The line runs from the CPO 350 NF pivot saws, in manual to semi-automatic versions, to the SUP upcut miter saws that cut up to 9 in round and the automatic GAA-500. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • CPO 350 NF series: American-made pivot saws with a 350 mm carbide blade and 45° left and right miters: manual, PK with an air vise, or semi-automatic PKPD.

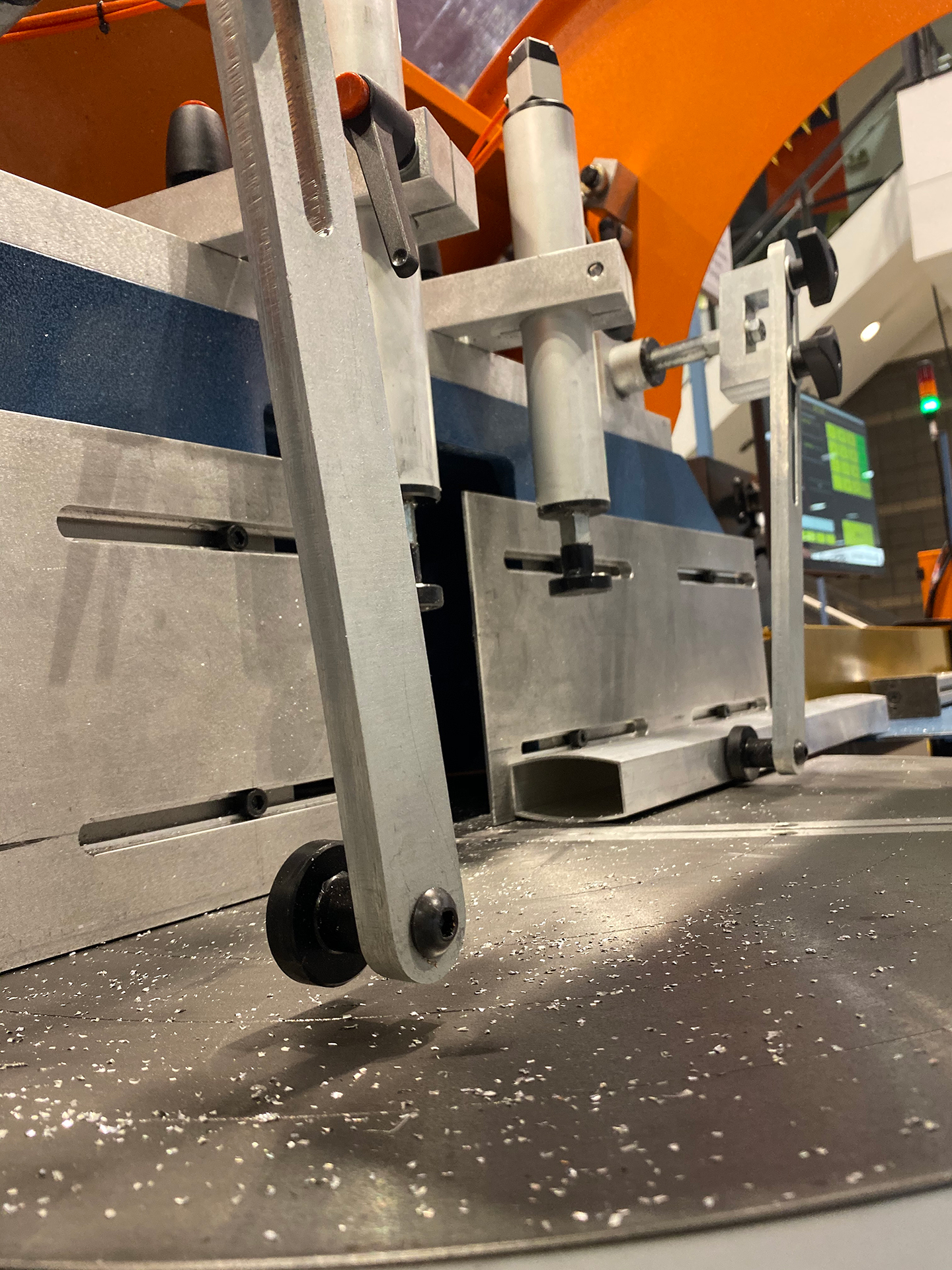

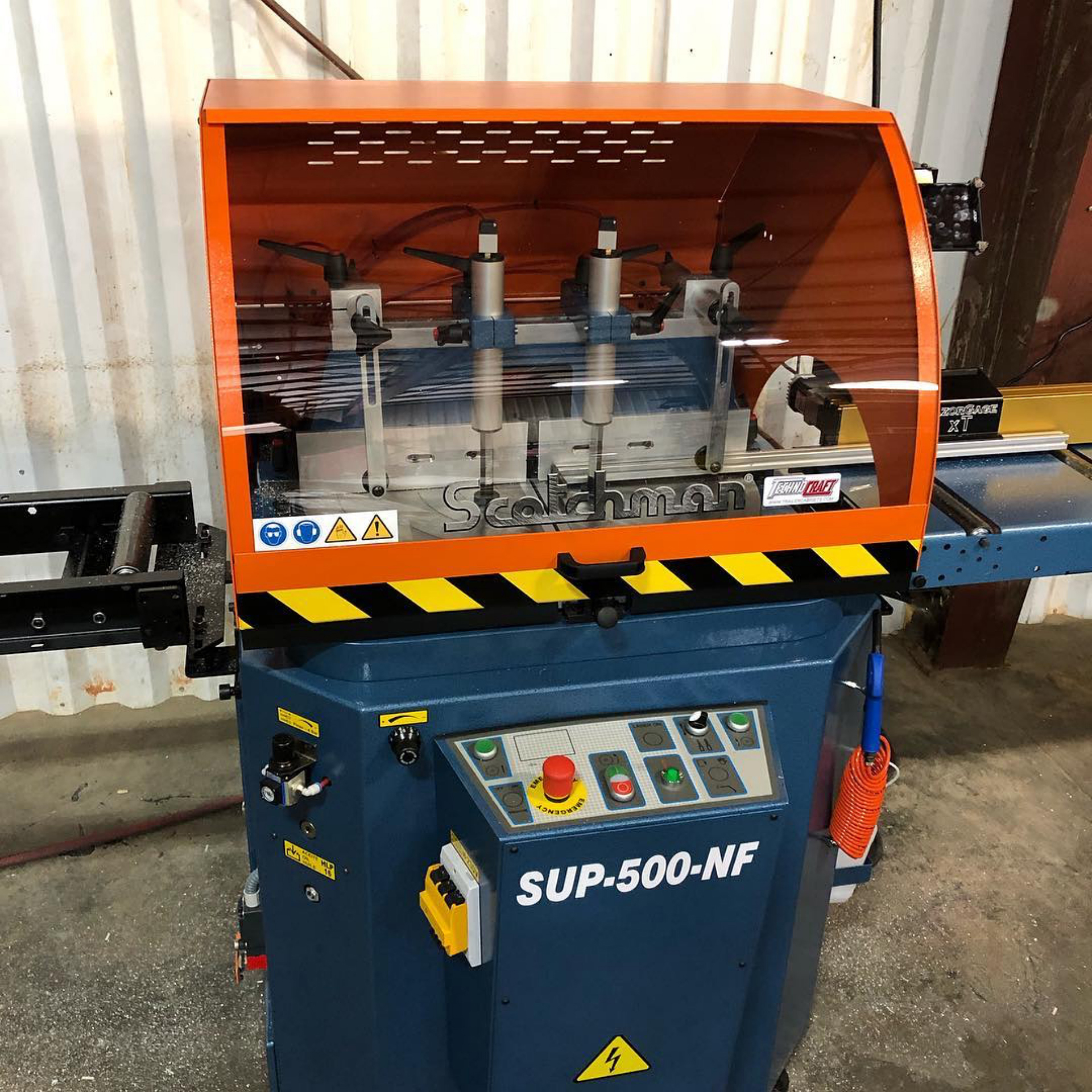

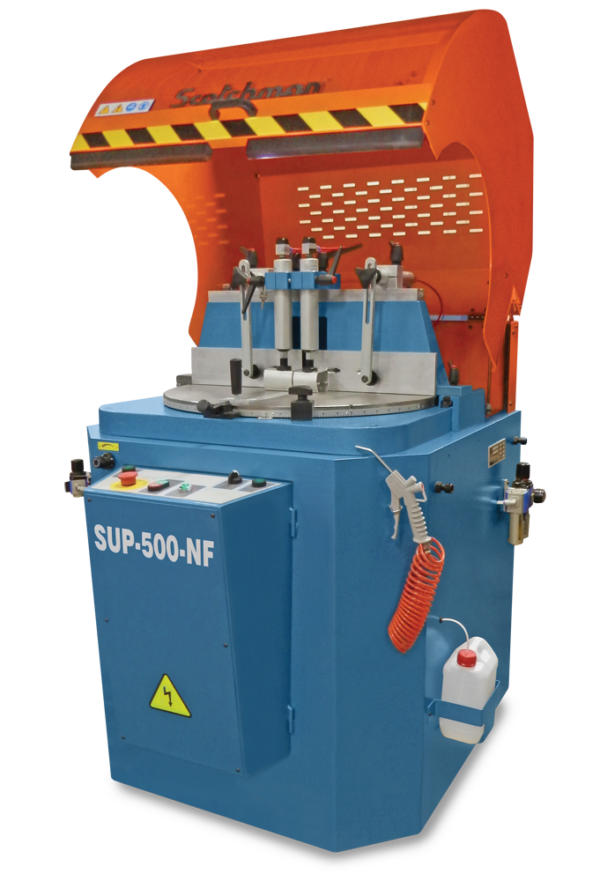

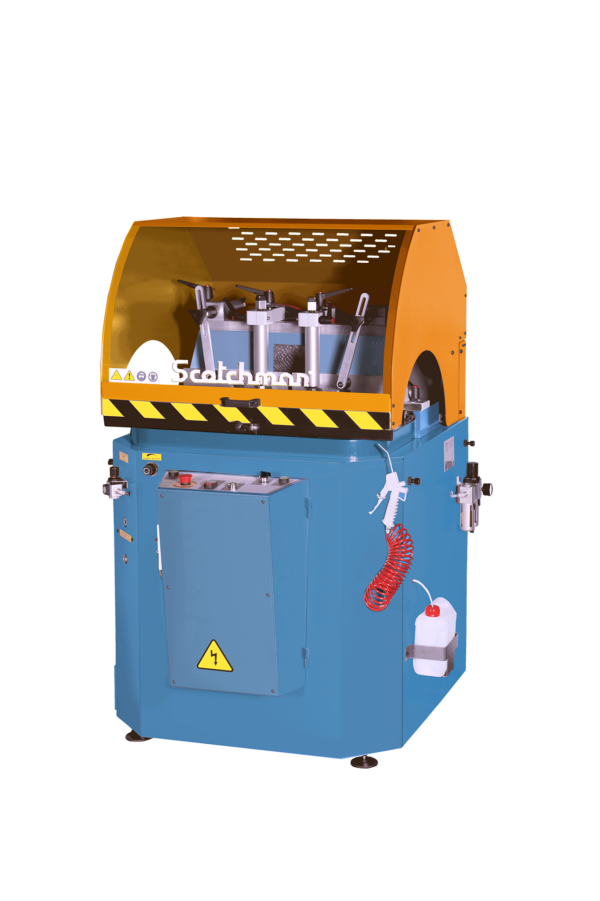

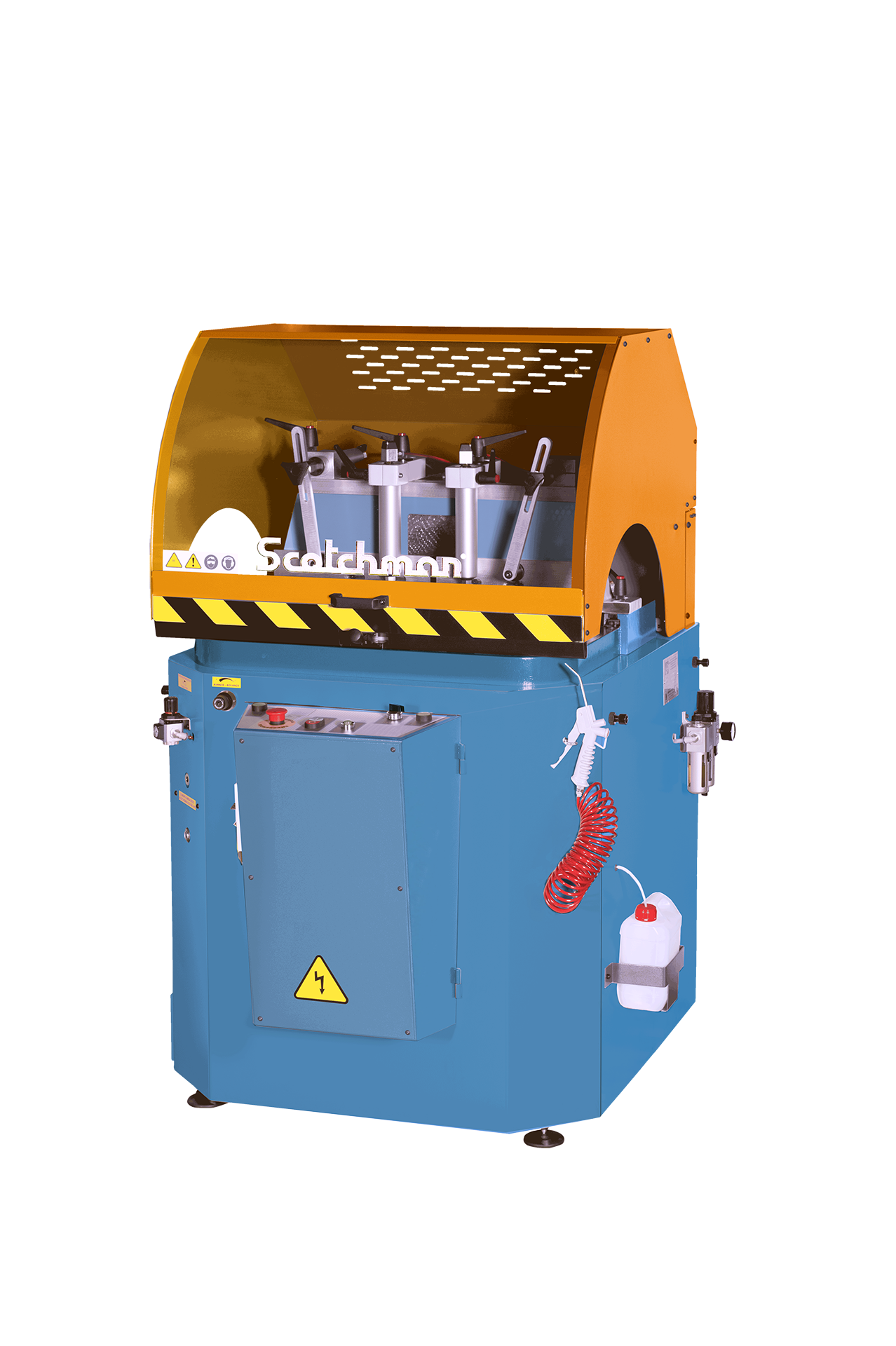

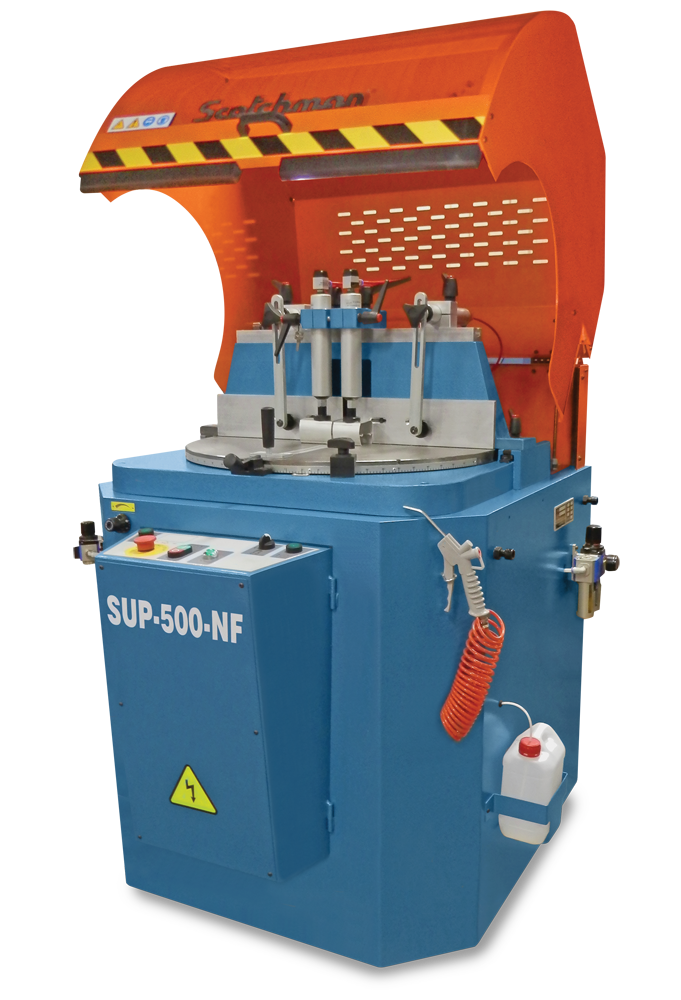

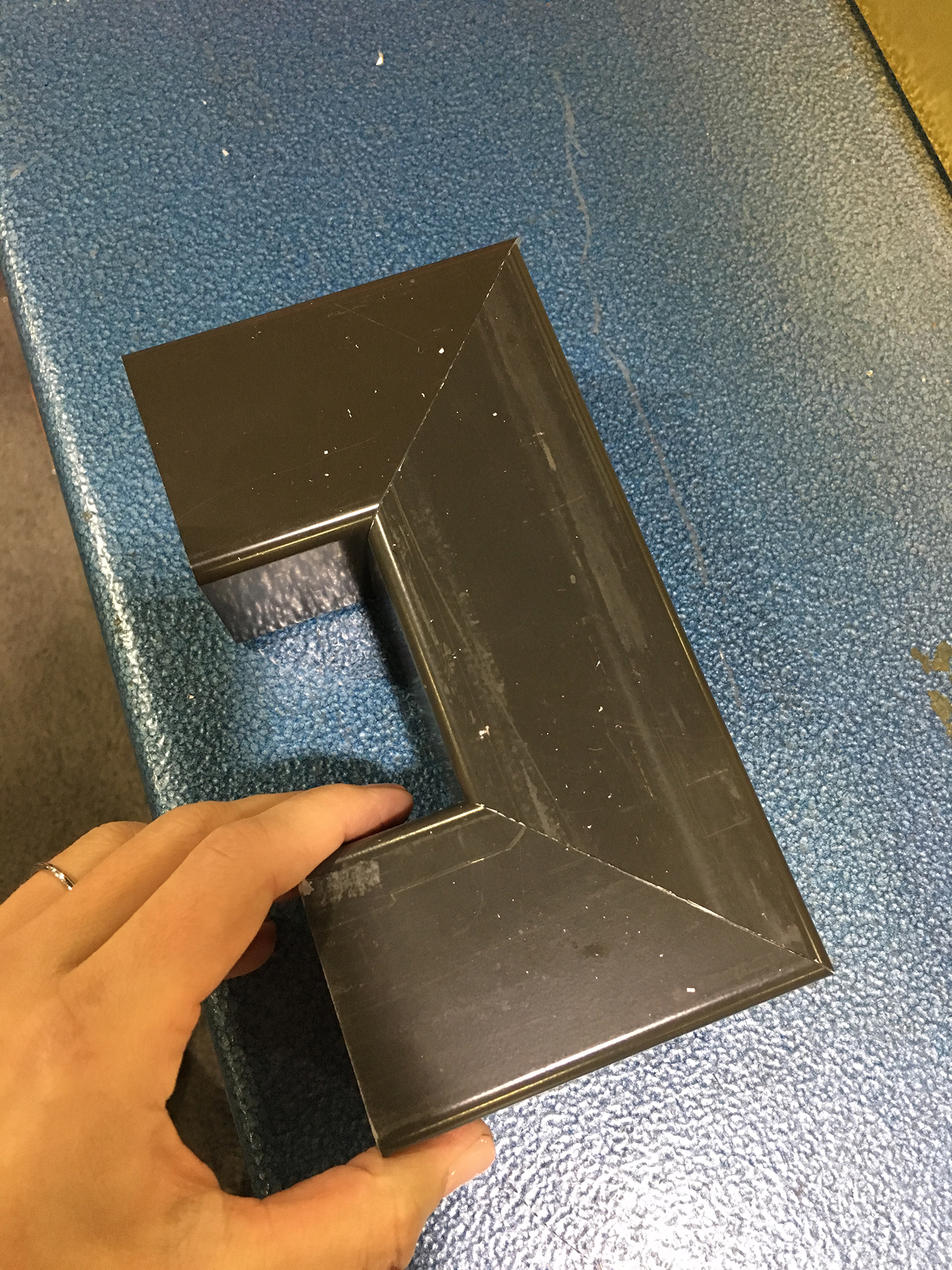

  • SUP-500 and SUP-600: upcut miter saws made in Spain, with fixed miter stops at 22.5°, 45°, 90°, 135° and 157.5°, two horizontal and two vertical pneumatic clamps, and dual palm buttons.
  • SUP-600 AngleMaster: a programmable feed that pushes stock into the saw and rotates it to the next angle automatically, from 22° to 159°, with cut lists stored on a touchscreen.
  • GAA-500: an automatic upcut saw with a shuttle feed for cutting to length in volume; see its own page.
  • Mist coolant and chip collection: on every model.

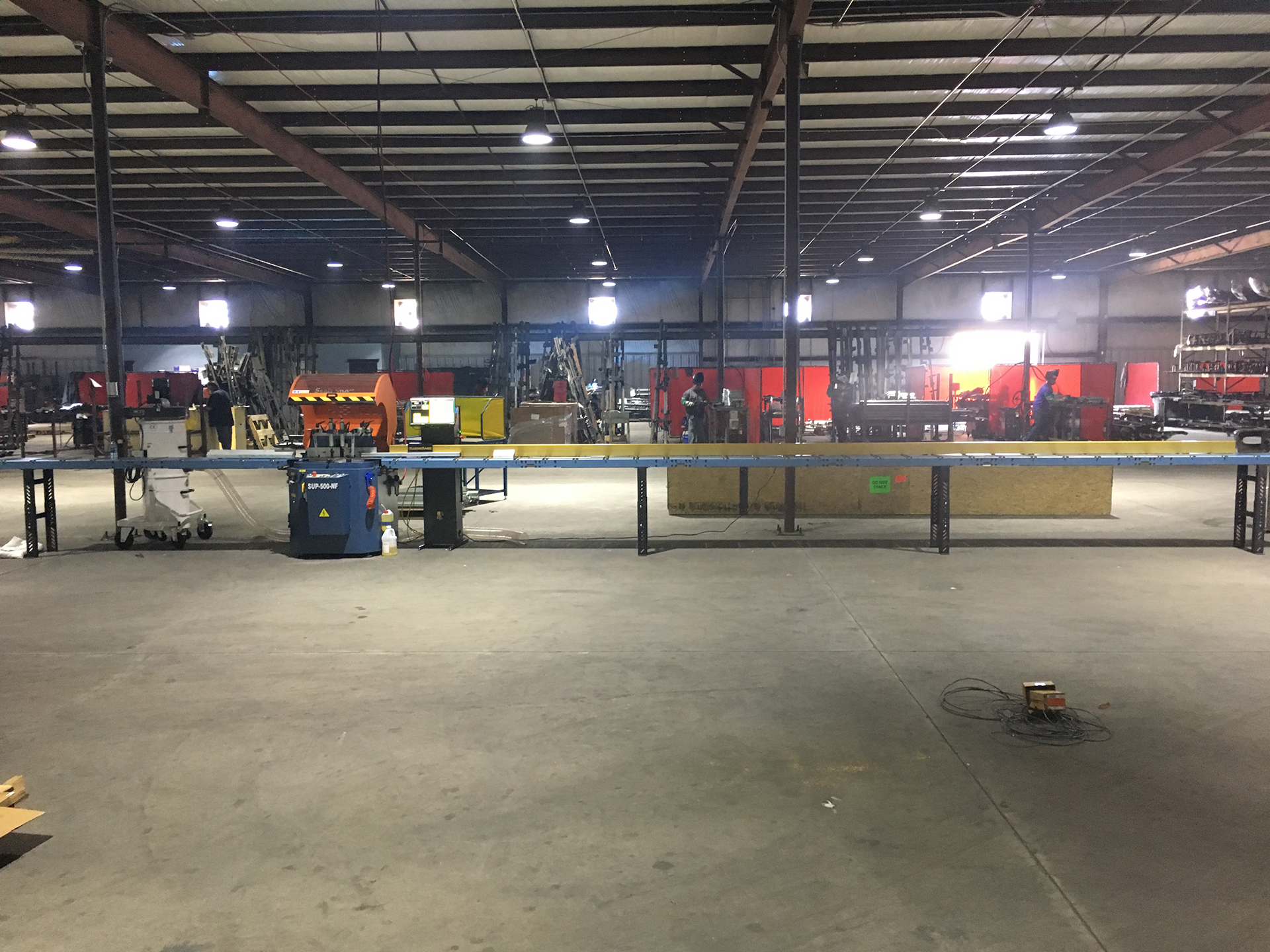

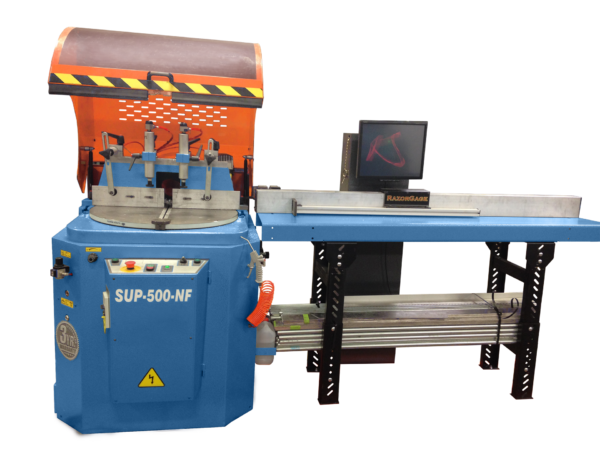

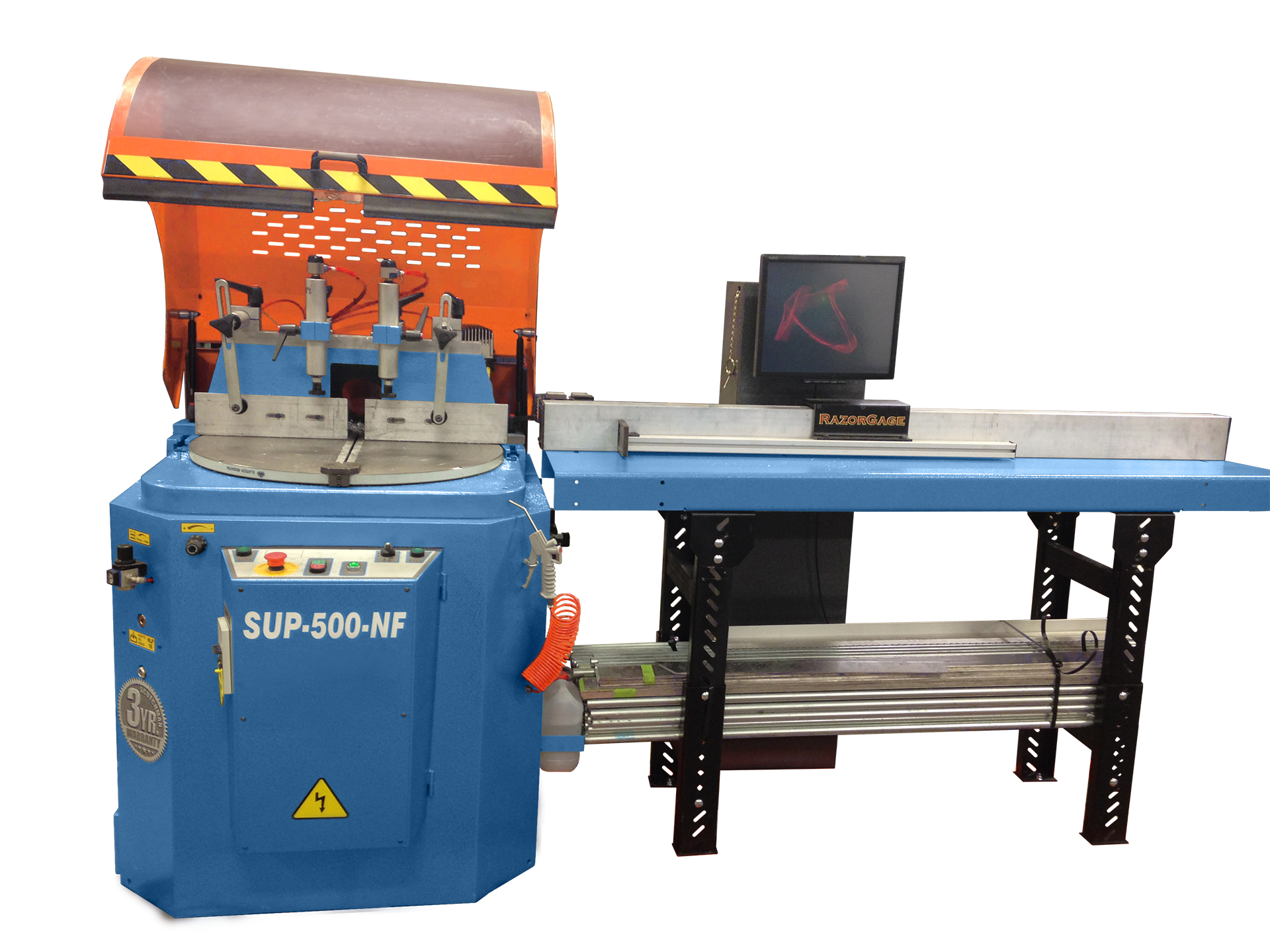

  • Measuring systems: add a Scotchman stop or feed system, from manual to fully automatic.

Specifications at a Glance

  • CPO 350 NF at 90°: 4-1/2 in round tube; 3 in round or 3 x 3 in square solid
  • SUP-500 at 90°: 7 in round; 6 in square (500 mm blade)

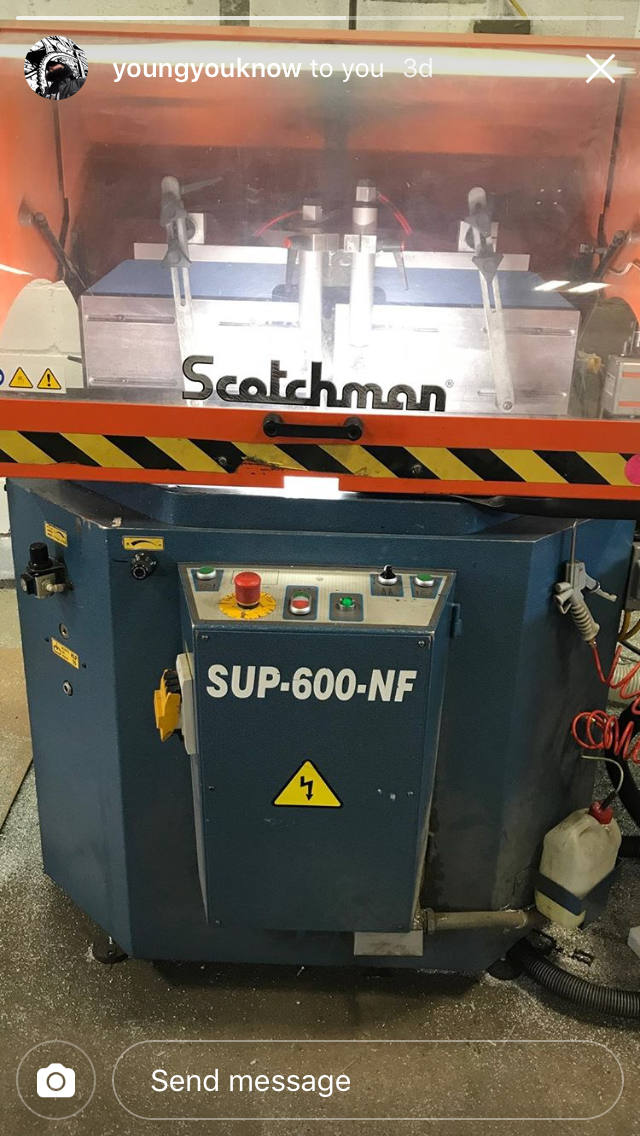

  • SUP-600 at 90°: 9 in round; 8 in square; 15 x 6 in rectangle (600 mm blade)
  • SUP-600 AngleMaster at 90°: 8 in round; 7 in square; 9 x 5 in rectangle; feed lengths 10 to 30 ft
  • Motors: 5 hp (CPO 350 NF); 5.5 hp (SUP series); all 3,000 rpm

Who It’s For

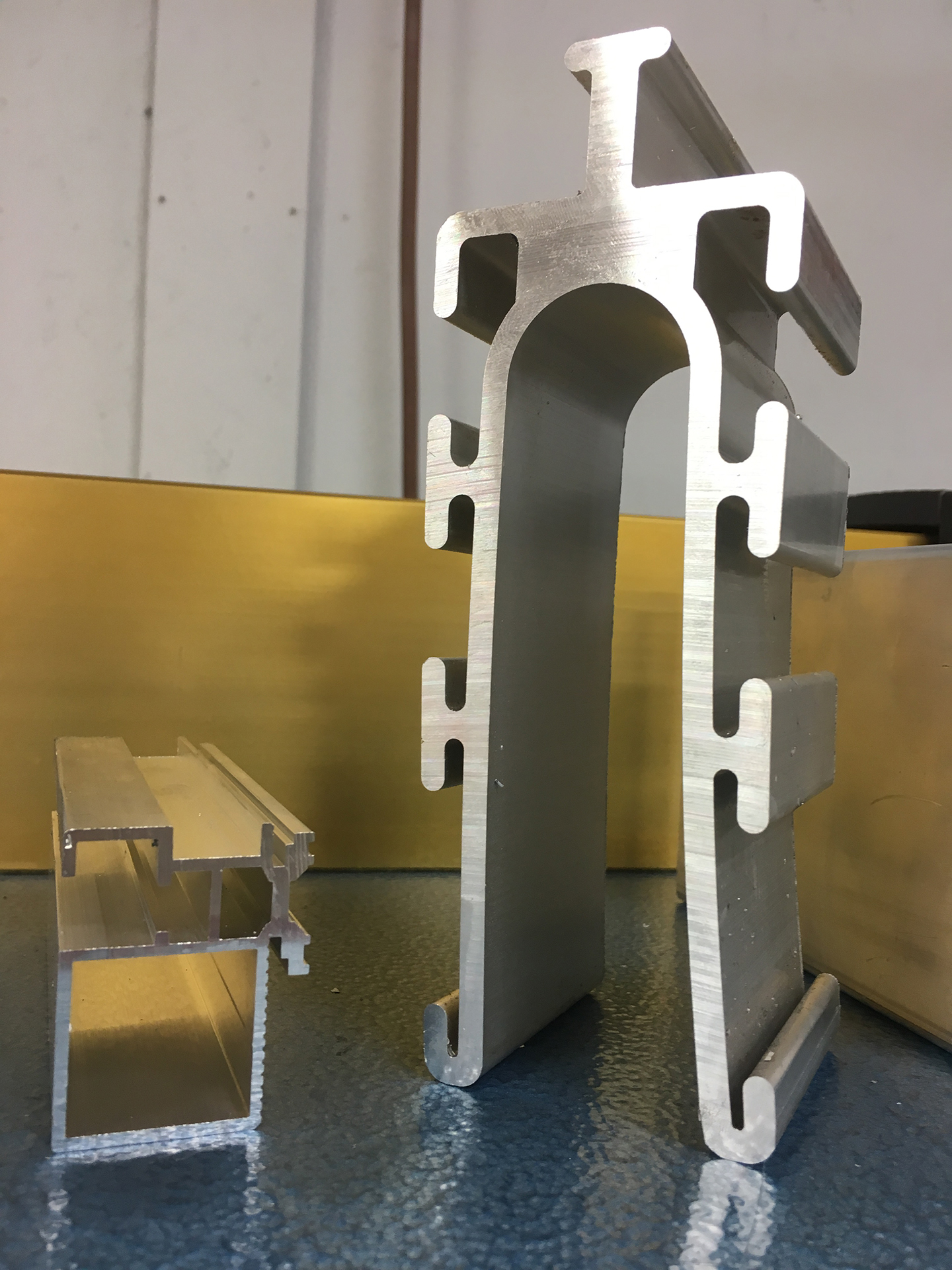

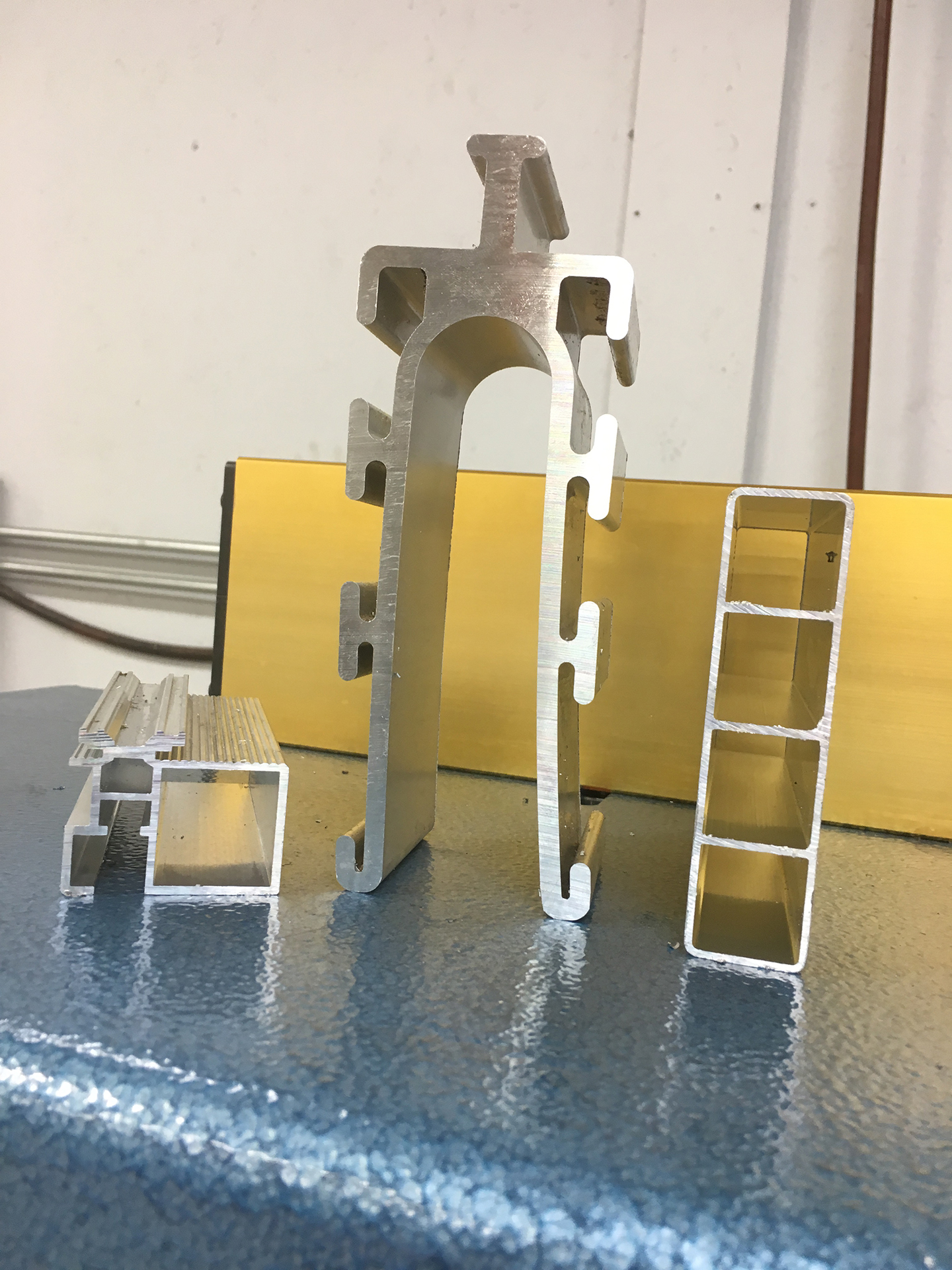

Shops and extruders cutting aluminum, copper and plastic tube, solids and extrusions, from single miters to programmed production.

Sales & Service from Icon

Icon Machine Tool sells Scotchman machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Scotchman SUP Series Catalog Page (PDF)  Talk to a Specialist: (816) 300-0019
