Description
Key Features

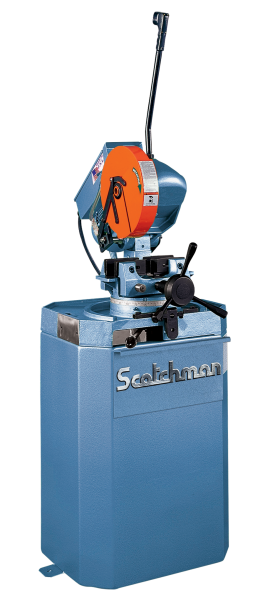

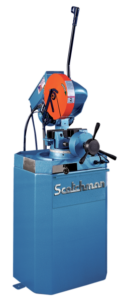

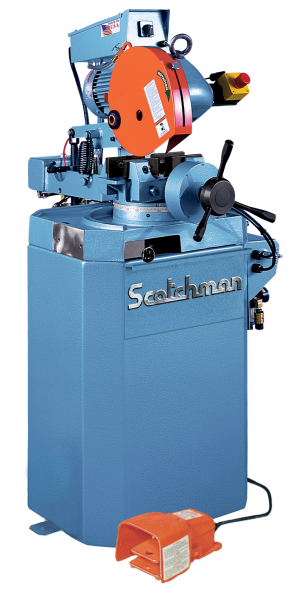

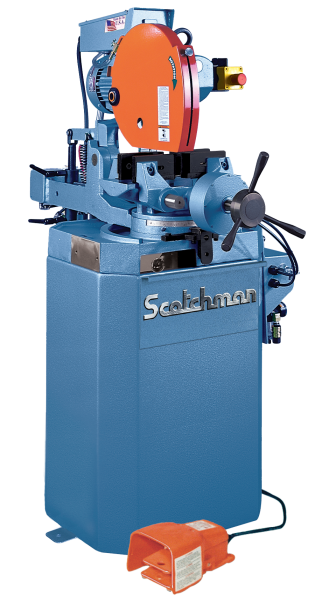

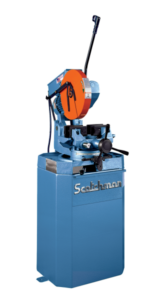

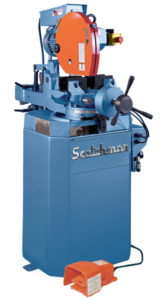

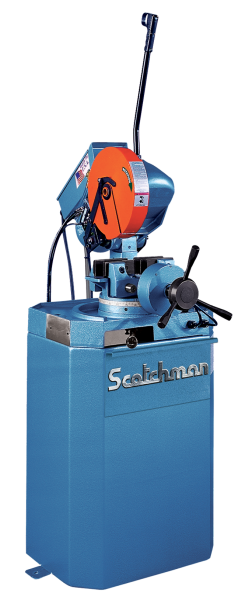

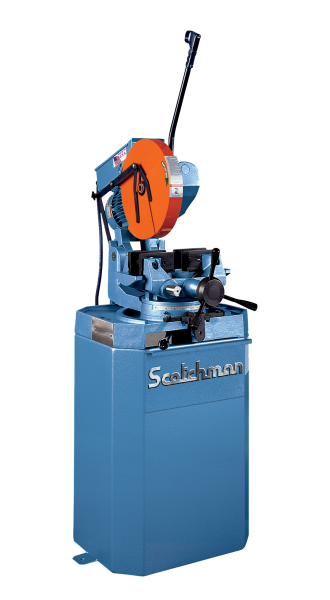

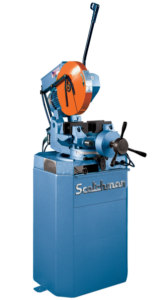

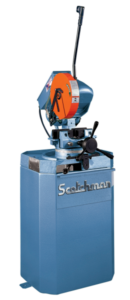

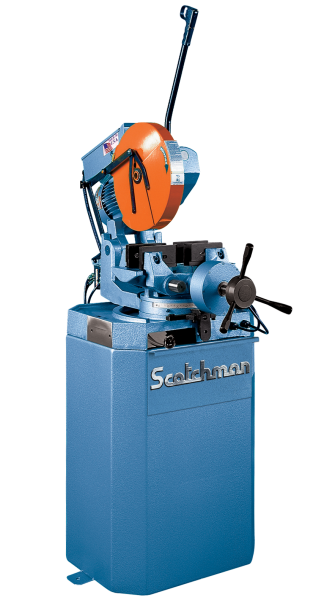

- Three versions of each saw: manual with a hand vise and trigger switch; PK with an air-operated vise; PKPD semi-automatic with an air vise and pneumatic power down feed.
- Mitering: 45° left to 45° right on both saws, which can also slot; on the CPO 350 models a miter-locking device sets quick stops at 45° left, 90° and 45° right.
- Double self-centering vise: clamps the material for burr-free cuts.
- Gearbox: double reduction, hardened and ground worm and wheel gearbox.
- Coolant and chips: a 7-gallon flood coolant tank with pump and a chip drawer.

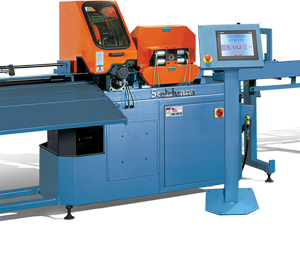

- Made in the USA: complies with ANSI B11.10 safety standards, with a three-year warranty on parts. Add a Scotchman measuring system to set lengths from a touchscreen.
Specifications at a Glance
- Blade: up to 275 mm (10-3/4 in) on the CPO 275; up to 350 mm (14 in) on the CPO 350
- Tube at 90°: 3-3/8 in round, 3 x 3 in square (CPO 275); 4-1/2 in round, 4-1/4 x 4-1/4 in square (CPO 350)
- Solid at 90°: 1-1/2 in round or square (CPO 275); 1-3/4 in round or square (CPO 350)
- Cutting speeds: two-speed or single-speed motors; 11 to 177 rpm variable speed available on the CPO 350
- Power: 3-phase or 220 V single-phase (specify when ordering)
Who It’s For
Fabrication shops cutting steel tube, pipe and solids to length and at miters, from occasional cuts to production runs.
Sales & Service from Icon
Icon Machine Tool sells Scotchman machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
Scotchman Catalog Pages (PDF) Talk to a Specialist: (816) 300-0019
