Scotchman GAA-500

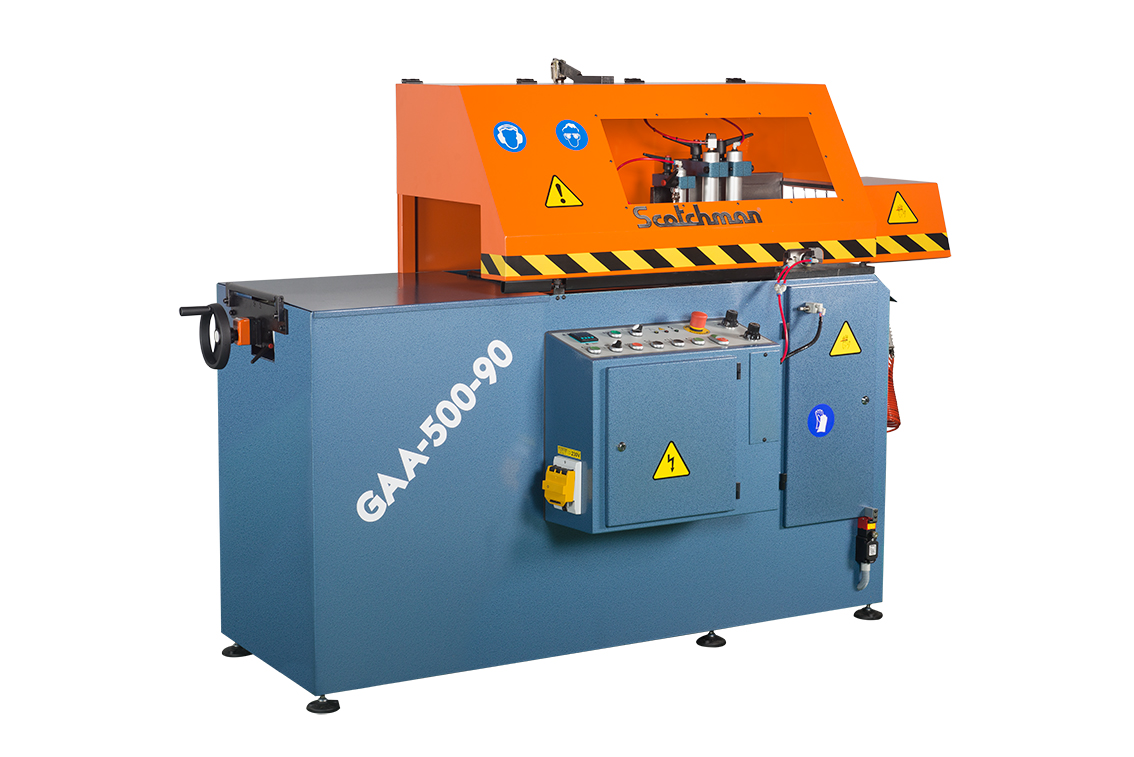

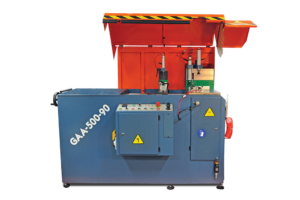

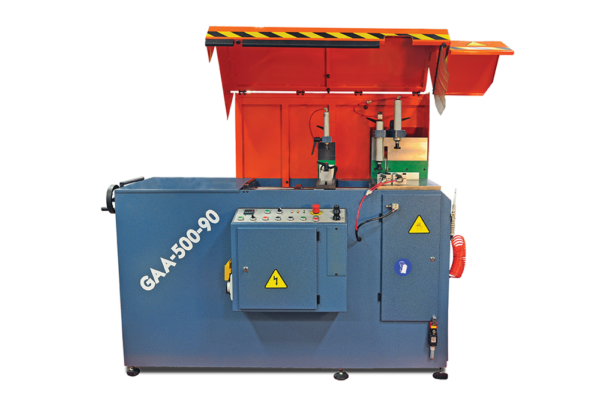

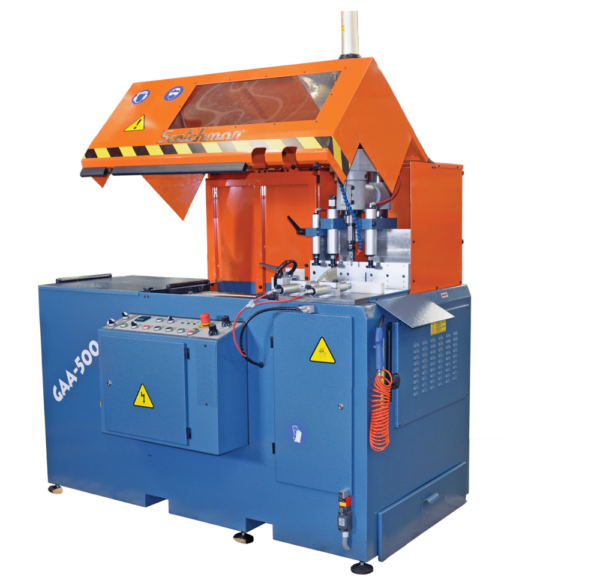

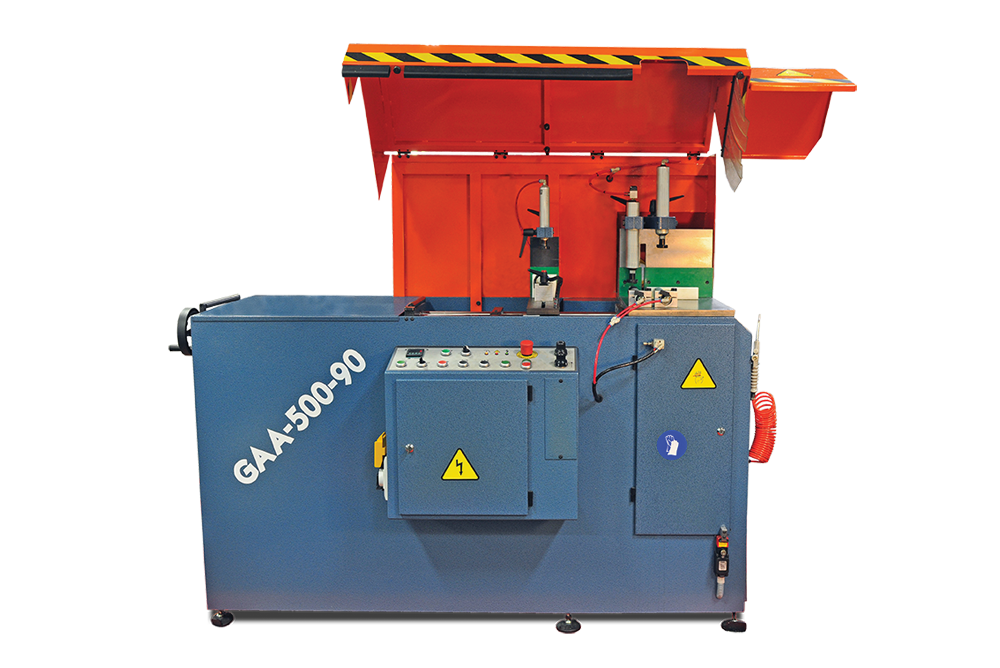

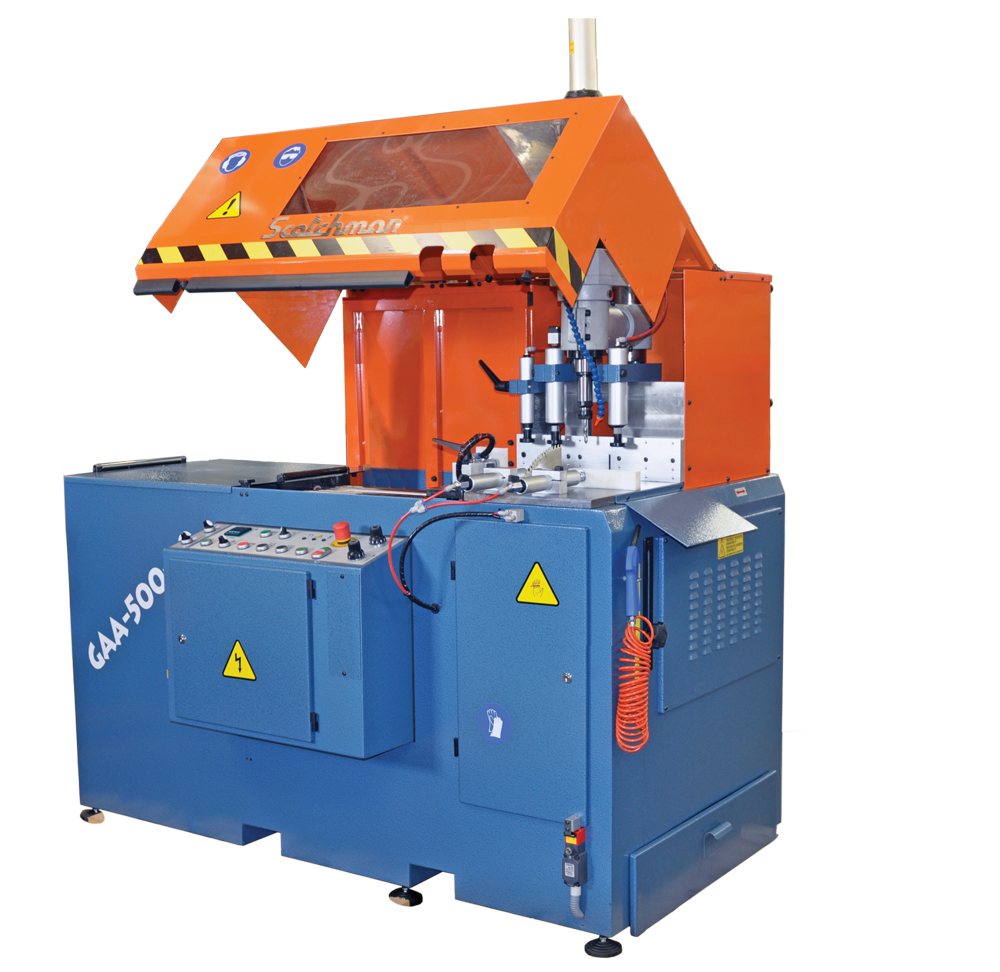

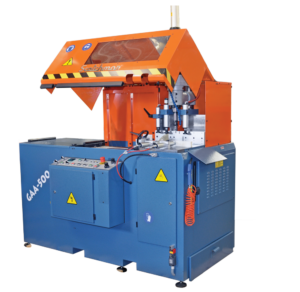

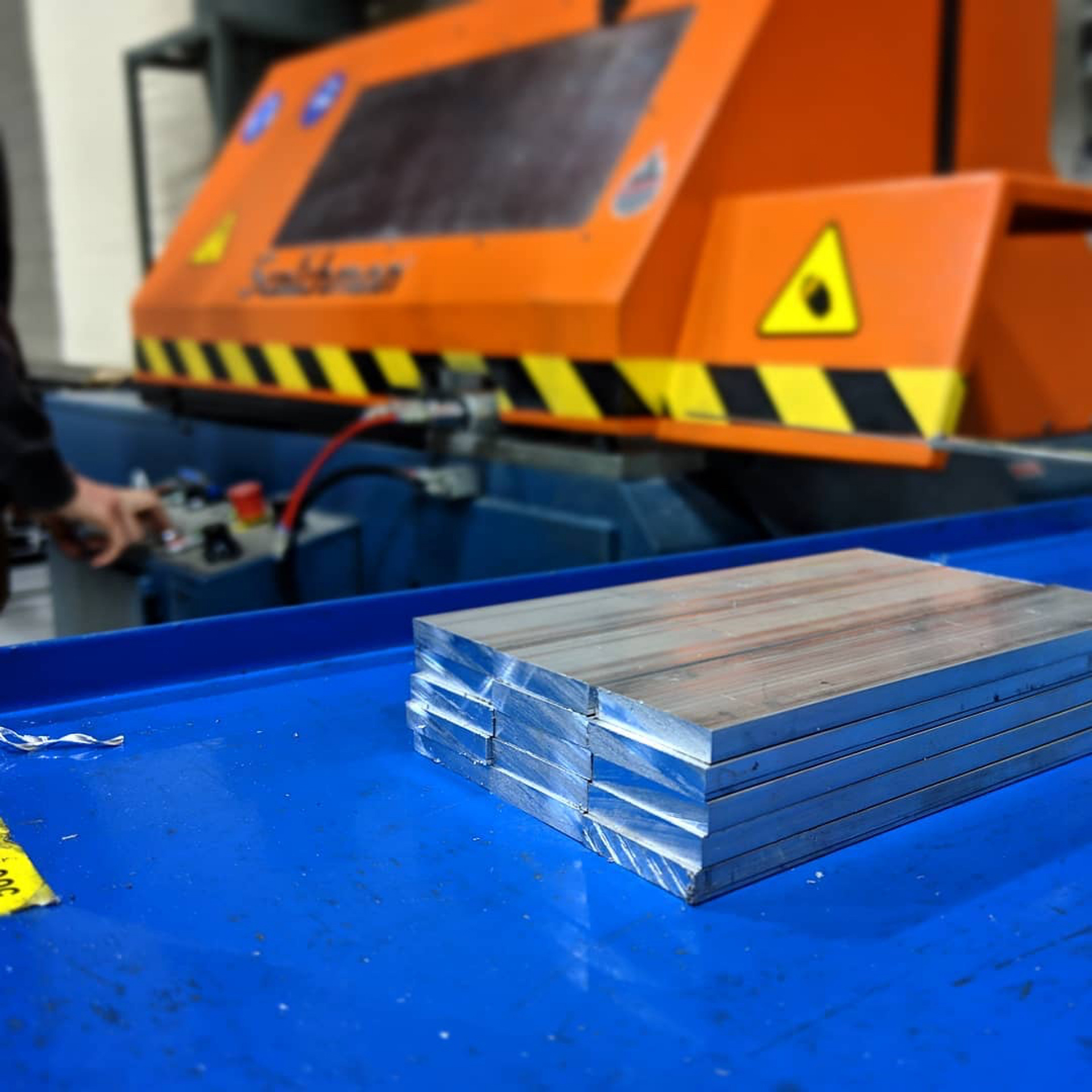

The Scotchman GAA-500 is a large-capacity upcut saw for aluminum and other non-ferrous materials. Its 500 mm carbide blade cuts up to 6 in round or square at 90°, and a shuttle feeder runs it automatically or semi-automatically. The DT20 option adds drilling and tapping. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Shuttle feed: an automatic feeder with a 20 in stroke and a 20 + 20 in maximum double advance, and an adjustable length selector from 0.200 in to 20 in.
  • Clamping: three horizontal and three vertical pneumatic clamps fit almost any profile and hold ±0.006 in per index.

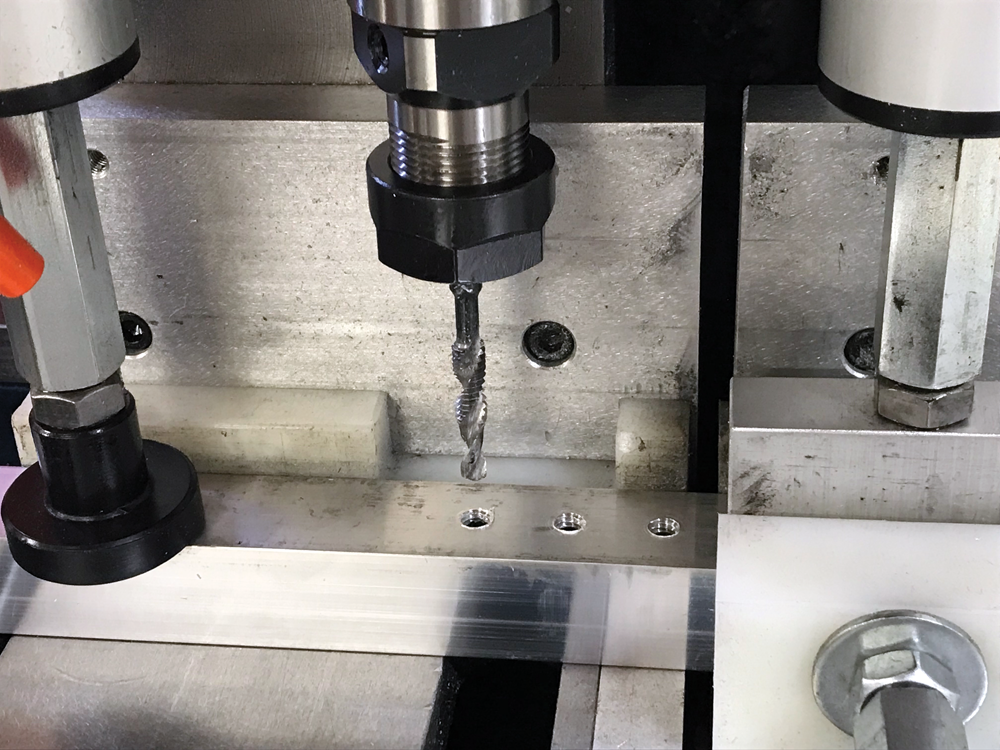

  • DT20 option: adds 20 mm drilling and tapping; CNC features are also optional.
  • Adjustable cutting: adjustable cutting and feeding speeds, with a 7.5 hp motor at 3,000 rpm.

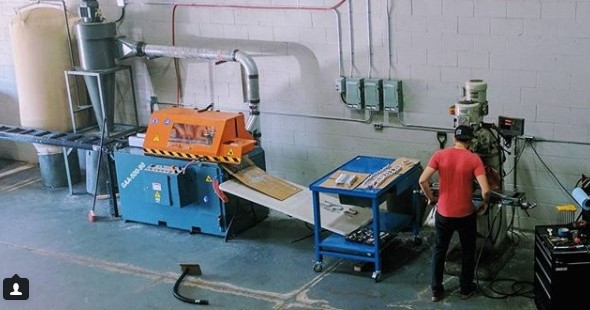

  • Chips and safety: a base built for chip collection with two extraction ports, mist coolant, a powered hood lift, LED lighting and an emergency stop.
  • Warranty: two years on parts; made in Spain.

Specifications at a Glance

  • Capacity at 90°: 6 in round; 6 x 6 in square; 10 x 3 in rectangle
  • Blade: 500 mm (20 in) carbide; 50 mm arbor
  • Motor: 7.5 hp, 3,000 rpm; 230/460 V, 3-phase
  • Length tolerance: ±0.006 in per index
  • Size and weight: 75 x 42 in footprint, 60-1/4 in tall; 1,300 lb shipping

Who It’s For

Shops and extruders cutting aluminum and other non-ferrous profiles to length in volume, including parts that need holes drilled or tapped.
