Ercolina CE70H3-RLI Angle Roll

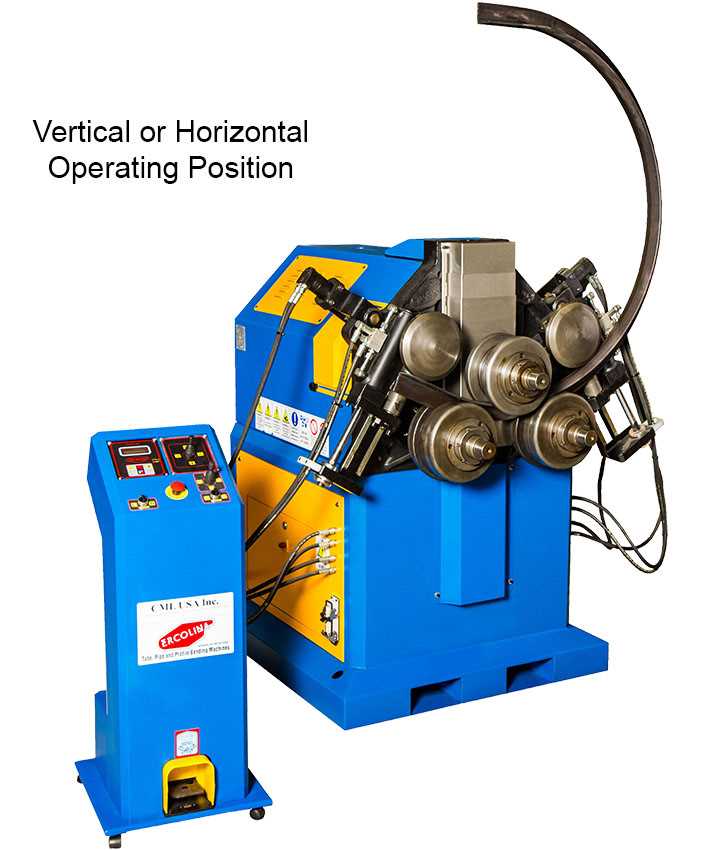

The Ercolina CE70H3-RLI is a hydraulic angle roll with a three-axis hydraulic twist system for bending angle iron leg-in. It bends pipe up to 3 in Sch. 40, angle up to 3 x 3 x 3/8 in and tube up to 3-1/2 in, with 22 tons on the center roll. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

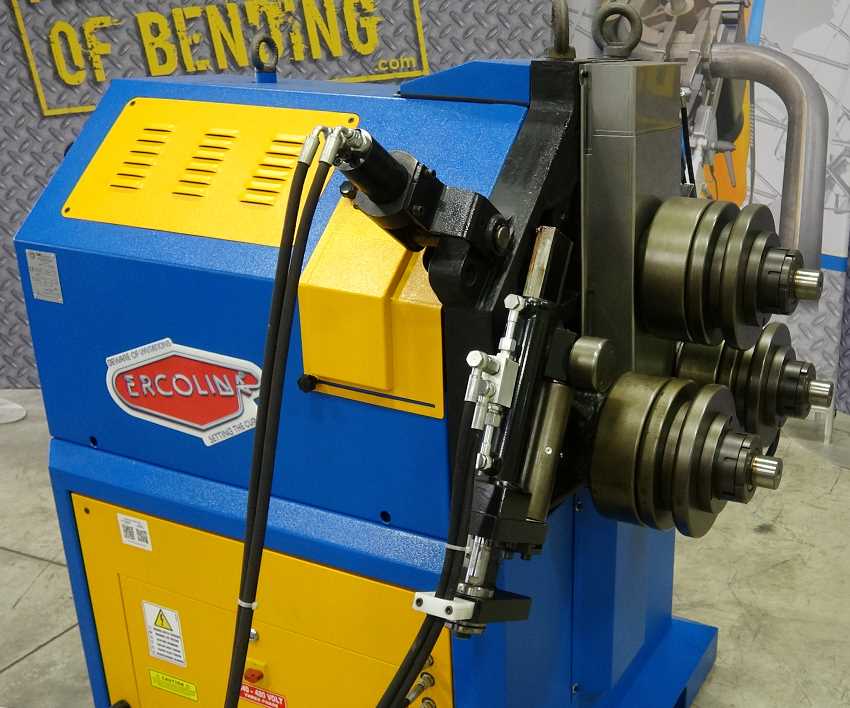

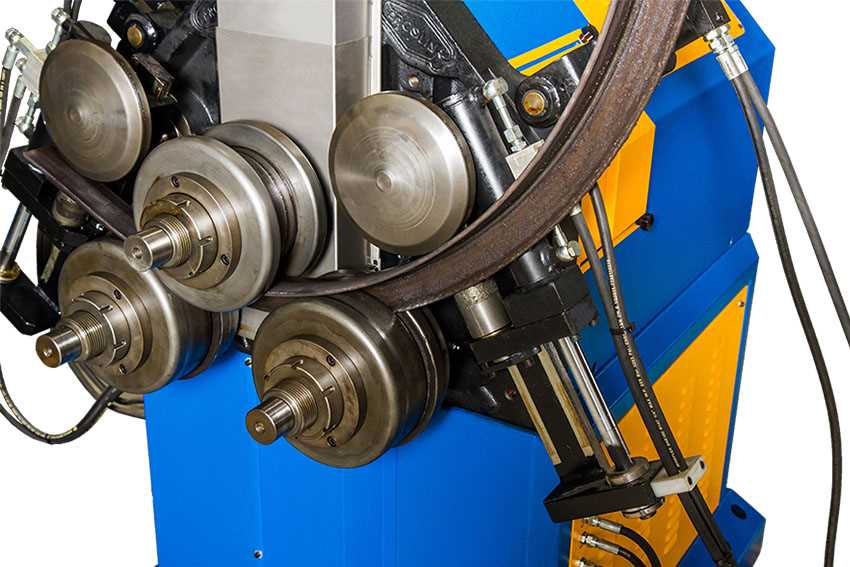

  • Three-axis hydraulic twist system: corrects twist when bending angle iron “leg in”.
  • Hydraulic center roll: 22 tons, with programmable touchpad controls and a digital center roll position display.
  • Programs: memory for 8 individual programs with unlimited passes.
  • Drive: inline direct drive with a motor and brake on each roll shaft.
  • Simultaneous downfeed and roll movement: patented by Ercolina to minimize deformation.
  • Roll shafts: forged and precision ground, with threaded shafts and micrometric flange adjustment that helps eliminate spacers.
  • Remote pendant: low-voltage controls and a foot pedal switch.

Specifications at a Glance

  • Pipe: up to 3 in Sch. 40
  • Angle: up to 3 x 3 x 3/8 in
  • Tube: up to 3-1/2 in, .216 wall
  • Roll shafts: 70 mm; 8 rpm; 15 in between shafts
  • Power: 220V or 480V 3-phase
  • Size: 54 x 43 x 57 in

Who It’s For

Fabricators rolling angle iron leg-in, heavy-wall tube and pipe up to 3 in.

Sales & Service from Icon

Icon Machine Tool sells Ercolina machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Ercolina Catalog Page (PDF)  Talk to a Specialist: (816) 300-0019
