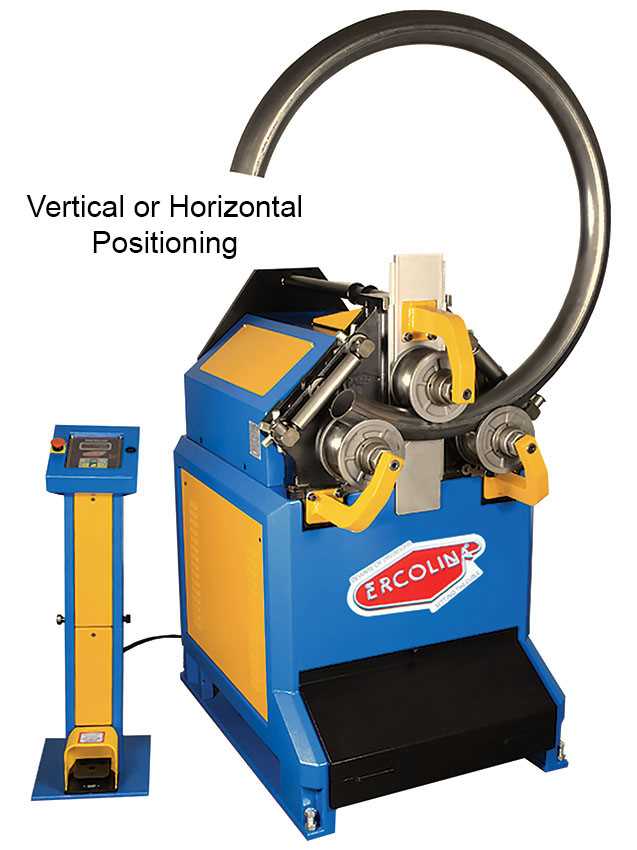

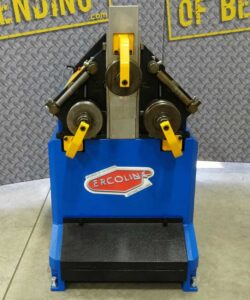

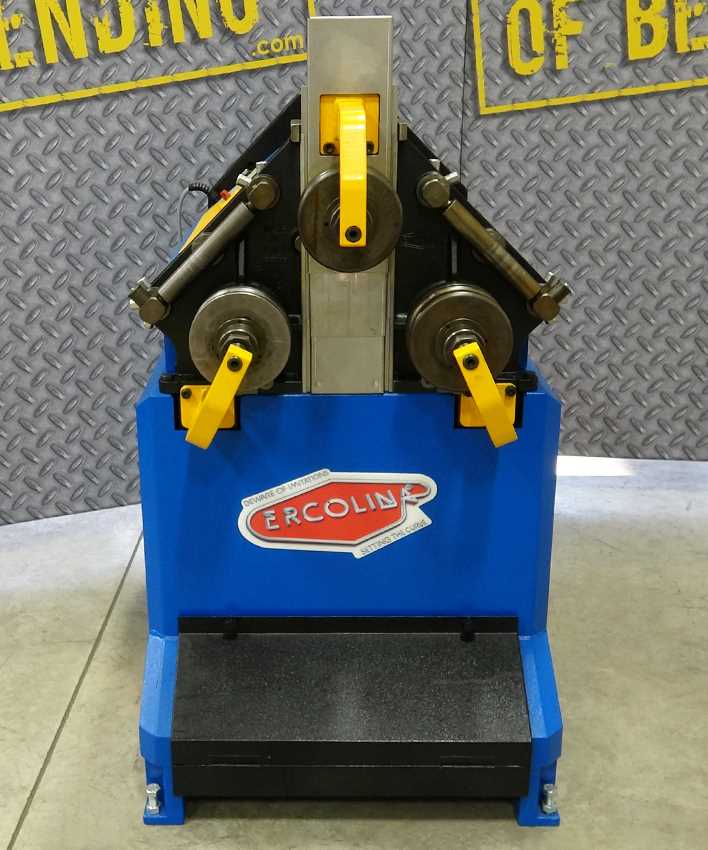

Ercolina CE60H3 Angle Roll

The Ercolina CE60H3 is a hydraulic angle roll with all three rolls driven and 17.6 tons on the center roll. It bends tube up to 3-1/2 in, angle up to 2-1/2 x 2-1/2 x 3/8 in and 3 in Sch. 10 pipe, and uses the same tooling as the CE50H3. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Hydraulic center roll: 17.6 tons, with touchpad controls and a digital center roll position display.
  • Programs: memory for 8 individual programs with unlimited passes.

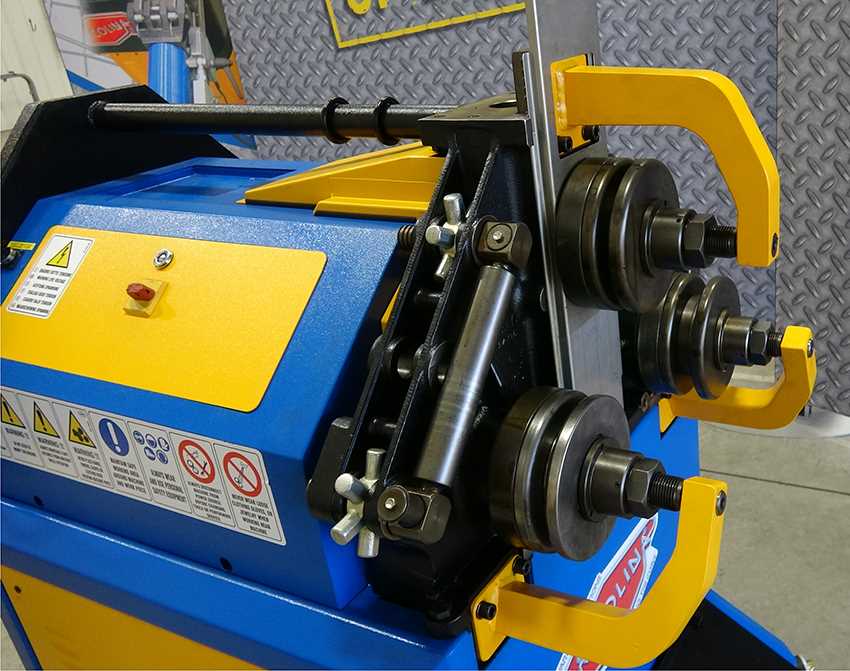

  • 3-roll drive: all three rolls are driven, with tie bar supports for each shaft.
  • Shared tooling: uses the same tooling as the CE50H3; a 7 in OD universal set comes with the machine.
  • Simultaneous downfeed and roll movement: patented by Ercolina to minimize deformation.
  • Roll shafts: forged and precision ground, with threaded shafts and micrometric flange adjustment that helps eliminate spacers.
  • Option: anti-twist device for angle iron “leg in” work.

Specifications at a Glance

  • Pipe: up to 3 in Sch. 10
  • Angle: up to 2-1/2 x 2-1/2 x 3/8 in
  • Tube: up to 3-1/2 in, .120 wall
  • Roll shafts: 50 mm; 9 rpm; 15 in between shafts
  • Power: 220V or 480V 3-phase
  • Size: 48 x 29 x 52 in

Who It’s For

Fabricators rolling heavier tube and angle than a CE50H3 handles, who want to share tooling between machines.
