Ercolina CE100 Angle Roll

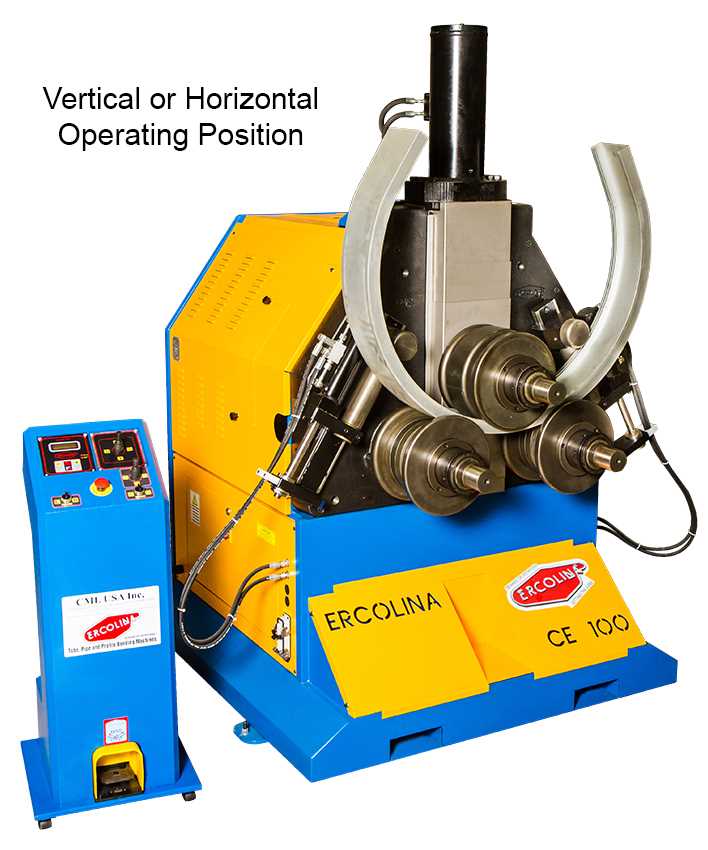

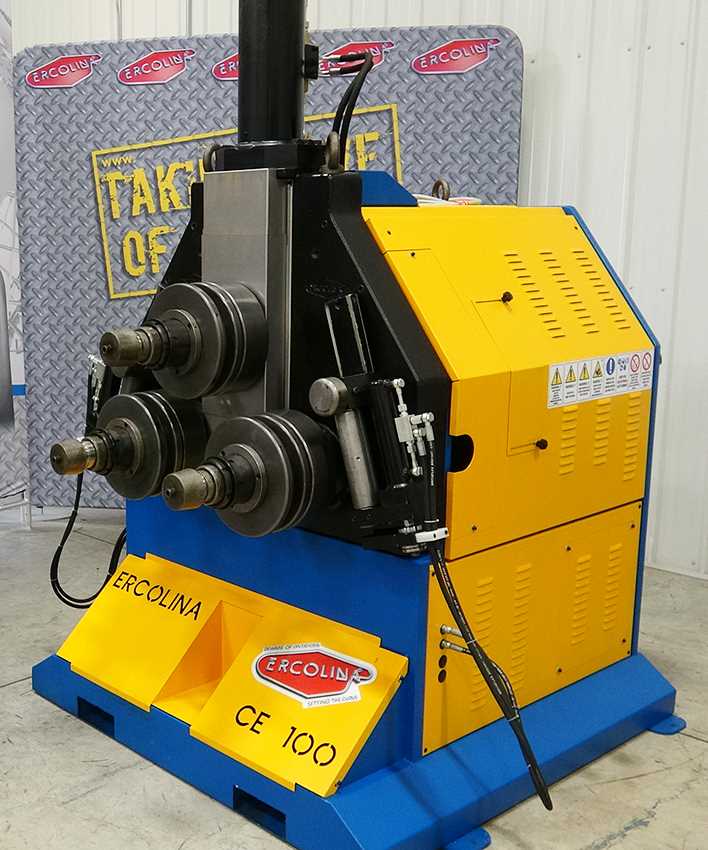

The Ercolina CE100 is a heavy hydraulic angle roll for pipe up to 4 in Sch. 40, angle up to 4 x 4 x 1/2 in and tube up to 4-1/2 in. It has 30 tons on the center roll, 100 mm roll shafts and a three-axis hydraulic twist system for angle iron leg-in. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Three-axis hydraulic twist system: corrects twist when bending angle iron “leg in”.
  • Hydraulic center roll: 30 tons, with programmable touchpad controls and a digital center roll position display.
  • Programs: memory for 8 individual programs with unlimited passes.
  • Drive: inline direct drive with a motor and brake on each roll shaft.
  • Universal tooling included: a 12-5/8 in OD set.
  • Simultaneous downfeed and roll movement: patented by Ercolina to minimize deformation.

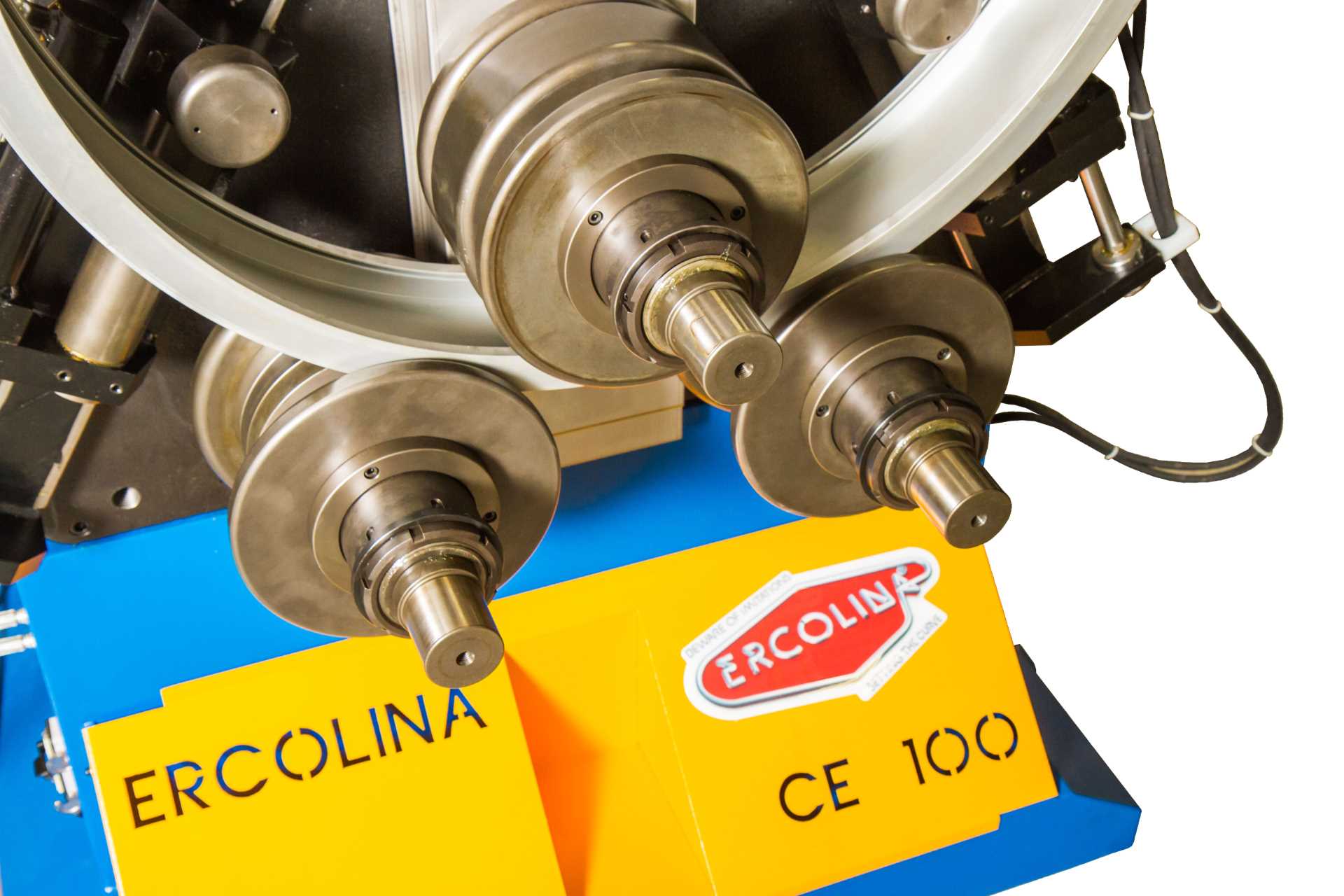

  • Roll shafts: forged and precision ground, with threaded shafts and micrometric flange adjustment that helps eliminate spacers.

Specifications at a Glance

  • Pipe: up to 4 in Sch. 40
  • Angle: up to 4 x 4 x 1/2 in
  • Tube: up to 4-1/2 in, .237 wall
  • Roll shafts: 100 mm; 6 rpm; 19-1/4 in between shafts
  • Power: 220V or 480V 3-phase
  • Size: 66 x 58 x 83 in

Who It’s For

Structural and pipe fabricators rolling large pipe, angle, beams and heavy-wall tube up to 4 in pipe.

Sales & Service from Icon

Icon Machine Tool sells Ercolina machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Ercolina Catalog Page (PDF)  Talk to a Specialist: (816) 300-0019
