Ercolina CE50H3 Angle Roll

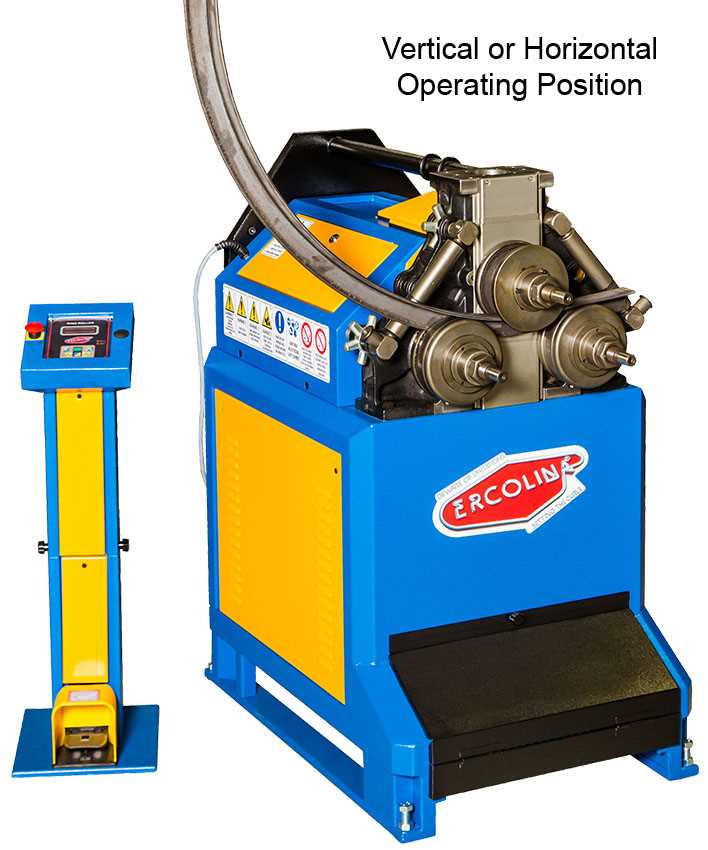

The Ercolina CE50H3 is a hydraulic angle roll that bends pipe up to 2-1/2 in Sch. 40, angle up to 2-1/2 x 2-1/2 x 1/4 in and tube up to 3 in. It stores 8 programs with unlimited passes and works in the vertical or horizontal position. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Hydraulic center roll: 10 tons, with NC touchpad controls and a digital center roll position display.
  • Programs: memory for 8 individual programs with unlimited passes.
  • Simultaneous downfeed and roll movement: patented by Ercolina to minimize deformation.
  • Universal tooling included: a 7 in OD set comes with each machine.

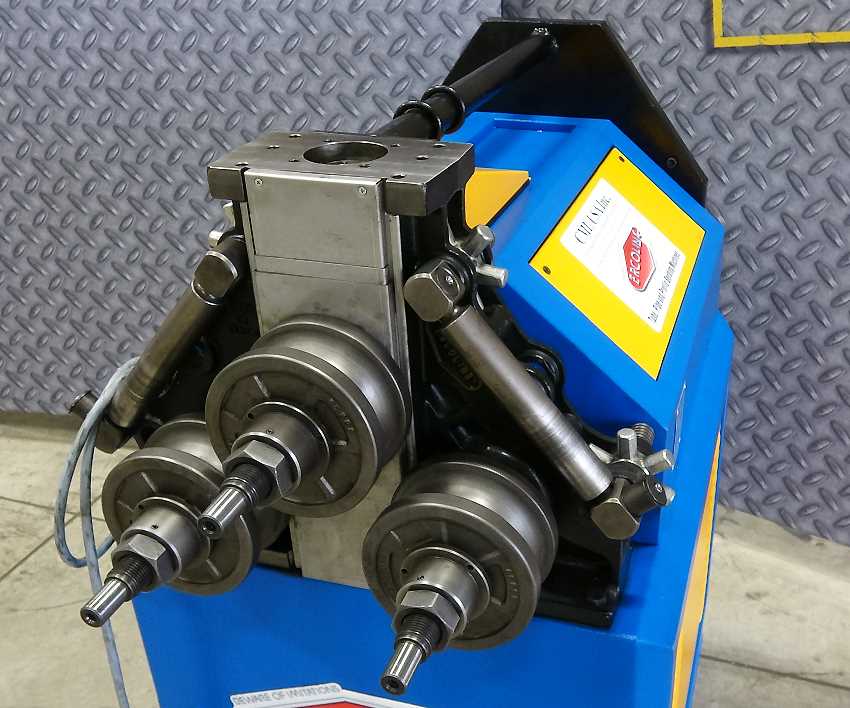

  • Roll shafts: forged and precision ground, with threaded shafts and micrometric flange adjustment that helps eliminate spacers.

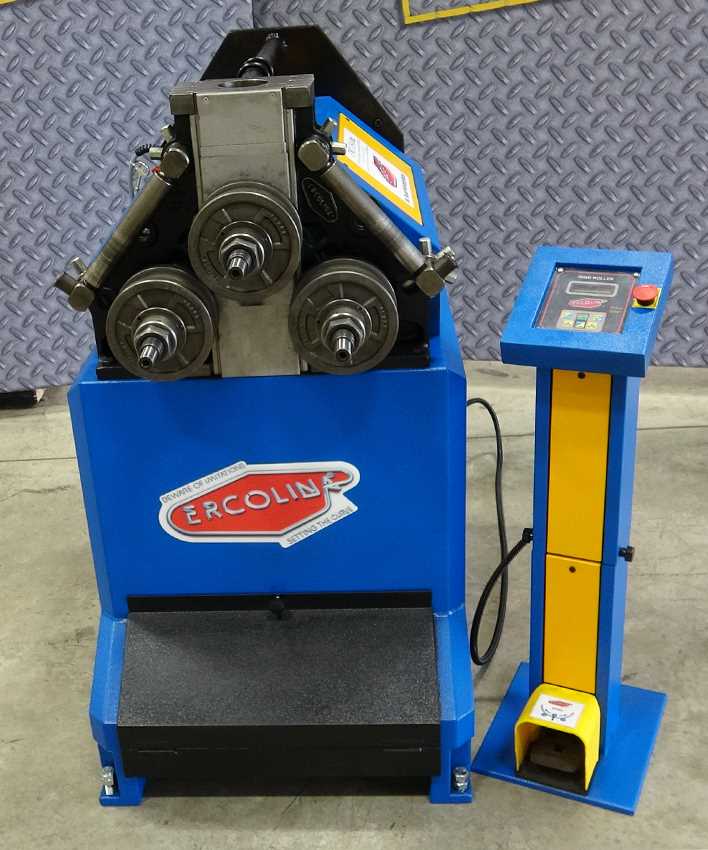

  • Remote pendant: low-voltage controls and a foot pedal switch.
  • Options: anti-twist device for angle iron “leg in” work, scroll curling, bar twisting, large spiral bending, tie bar and small radius tooling.

Specifications at a Glance

  • Pipe: up to 2-1/2 in Sch. 40
  • Angle: up to 2-1/2 x 2-1/2 x 1/4 in
  • Tube: up to 3 in, .095 wall
  • Roll shafts: 50 mm; 9 rpm; 11-7/8 in between shafts
  • Power: 220V or 480V 3-phase
  • Size: 45 x 29 x 52 in

Who It’s For

Fabricators rolling pipe, tube, angle and other profiles up to 2-1/2 in pipe who want programs for repeat work.
