Scotchman Fully Integrated Ironworkers

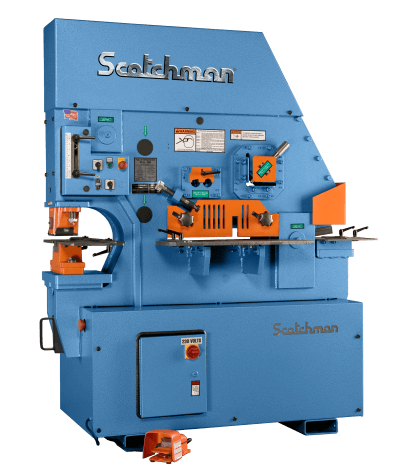

Scotchman Fully Integrated ironworkers have five tool stations permanently built in, for repetitive work and higher-volume jobs. Choose the 85-ton FI 8510-20M, the 125-ton FI 12510-20M, or the 85-ton DO 8514-20M, which lets two operators work at once. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Five built-in stations: punch, slug-less angle shear, flat bar shear and rectangle notcher on every model, plus a rod shear (FI 8510-20M, DO 8514-20M) or a 4 in slug-less channel shear (FI 12510-20M).
  • Single or dual operator: the FI models are single-operator with a two-stage hydraulic pump; the DO 8514-20M has a tandem pump so two people work at full pressure and speed at once.
  • Punch station: keyed punch ram, punch gauging table with fence and scale, adjustable swing-away stripper, punch jog control, and one round punch and die up to 1-1/4 in.

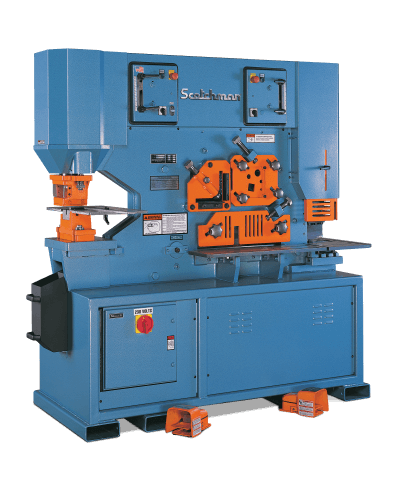

  • Convertible notcher (DO 8514-20M): the rectangle notcher converts to a V-notcher, a 50-ton punch or an open end brake.
  • Optional tooling: press brakes, tube shears, picket tools and custom-built tooling.
  • Built in the USA: LED work lights, guards to ANSI B11.5 safety standards, forklift accommodations, and a three-year warranty on parts.

Specifications at a Glance

  • Models: FI 8510-20M, FI 12510-20M, DO 8514-20M
  • Punching: 85 ton, 1-1/16 in hole in 1 in (FI 8510-20M, DO 8514-20M); 125 ton, 1-1/2 in hole in 1 in (FI 12510-20M), mild steel
  • Throat depth: 10 in (FI models); 14 in (DO 8514-20M)
  • Flat bar shear: 20 in long, up to 3/4 x 20 in
  • Angle shear: 6 x 6 x 1/2 in at 90°, all models
  • Shipping weight: 4,554 lb (FI 8510-20M); 4,750 lb (FI 12510-20M); 5,504 lb (DO 8514-20M)

Who It’s For

Shops doing repetitive punching, shearing and notching in higher volumes that want every tool set up and ready.

Sales & Service from Icon

Icon Machine Tool sells Scotchman machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Scotchman FI 8510-20M Spec Sheet (PDF)  Talk to a Specialist: (816) 300-0019
