Description
Key Features
- Two operators at once: a tandem hydraulic pump and two valves give each station full pressure and speed, so one person can punch while another notches or shears.

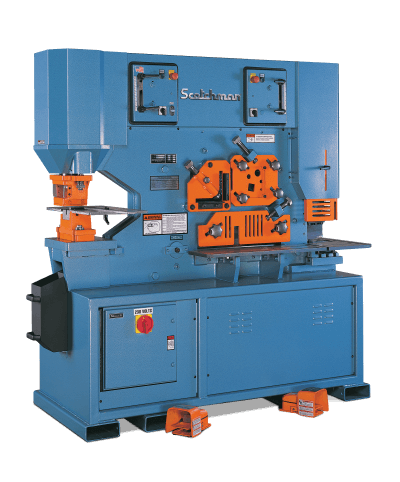

- Five stations: punch, angle shear, flat bar shear and rectangle notcher on every model, plus a tool table work area (a rod shear on the DO 8514-20M).
- Punch station: keyed punch ram, punch gauging table with fence and scale, adjustable swing-away stripper, jog control, and one round punch and die up to 1-1/4 in.
- Controls: two adjustable electric stroke controls with scales and two electric remote foot pedals.
- Optional tooling: press brakes, rod shears, tube shears, picket tools and custom-built tooling swap in and out to fit the job.
- Built in the USA: LED work lights, guards to ANSI B11.5 safety standards, forklift accommodations, and a three-year warranty on parts.
Specifications at a Glance

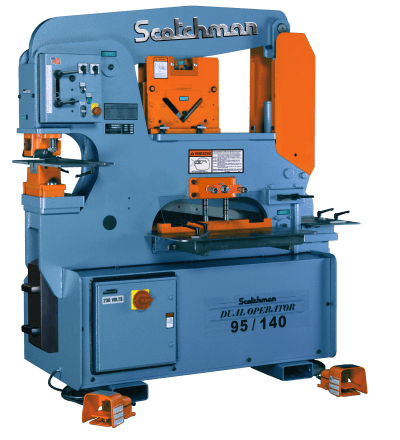

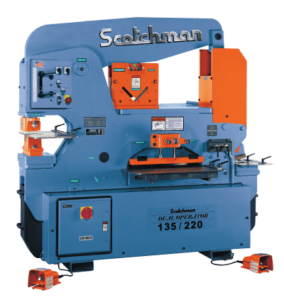

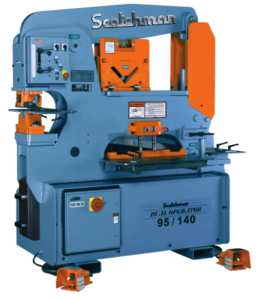

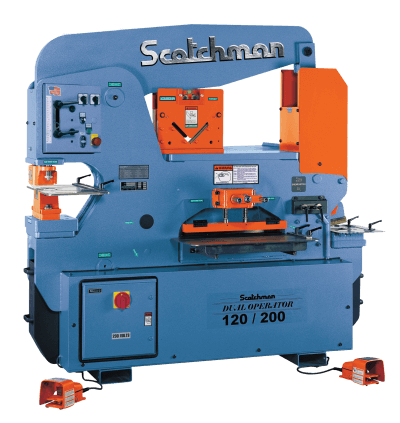

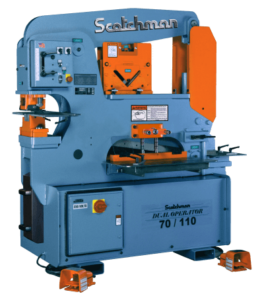

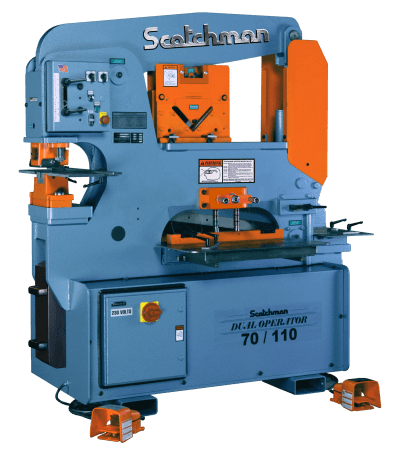

- Models: DO 70/110-24M, DO 8514-20M, DO 95/140-24M, DO 120/200-24M, DO 135/220-24M, DO 150/240-24M
- Punching: 70 to 150 ton, from a 1-1/8 in hole in 3/4 in plate (DO70) to a 1-7/8 in hole in 1 in plate (DO150), mild steel
- Throat depth: 9 in (DO70, DO95); 12 in (DO120, DO135, DO150); 14 in (DO 8514-20M)
- Flat bar shear: 24 in long (20 in on the DO 8514-20M)
- Angle shear: 6 x 6 x 1/2 in at 90°, all models
- Motor: 10 hp, 3-phase; 220 V single-phase optional
Who It’s For
Fabrication shops where two people need to punch, shear and notch at the same time without waiting on each other.
Sales & Service from Icon
Icon Machine Tool sells Scotchman machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
Scotchman Spec Sheets (PDF) Talk to a Specialist: (816) 300-0019
