Scotchman Component Tool Ironworkers

Scotchman Component Tool ironworkers are built around a tool table that takes swap-in tooling such as press brakes, rod shears, tube shears and picket tools, so one machine covers more jobs. Six American-made models run from the portable 45-ton Porta Fab 45 to the 120-ton 12012-24M. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Component tool table: a work area where optional tools mount and swap out: press brakes, rod shears, square tube shears, picket tools, pipe notchers and custom tooling.

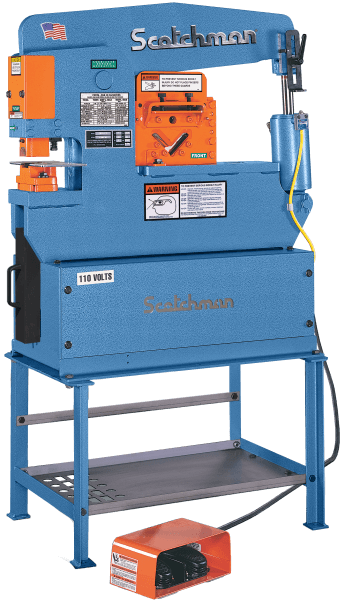

  • Porta Fab 45: portable for job-site work and runs on 110 V from a wall outlet or generator, with a 3-in-1 angle, bar and rod shear tool.

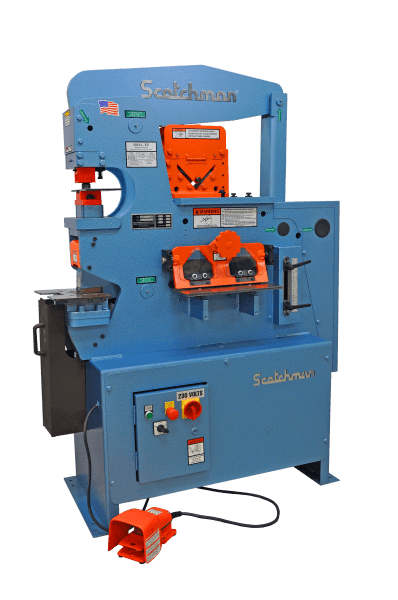

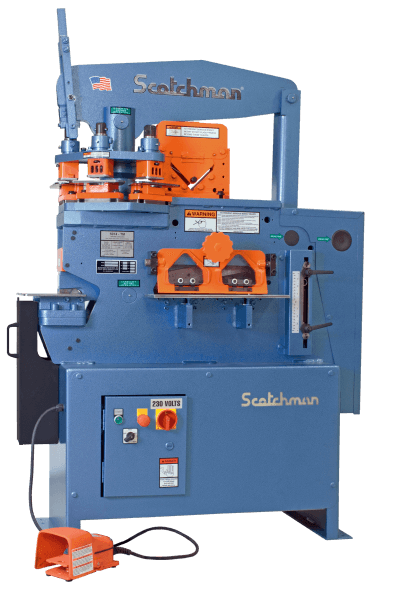

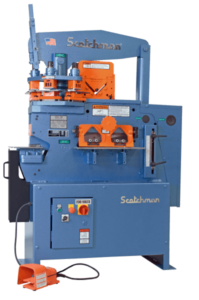

  • 50-ton models: the 50514-EC has 5 stations, including a rectangle notcher; the 5014-ET adds a 3-station revolving turret punch for quick punch changes, for 7 stations.

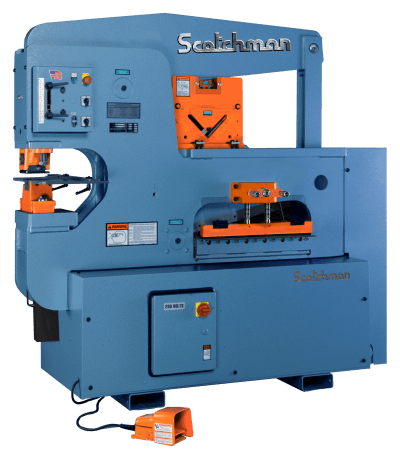

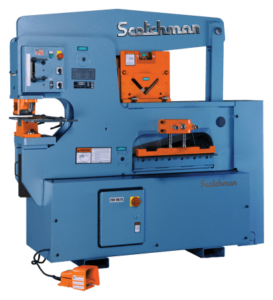

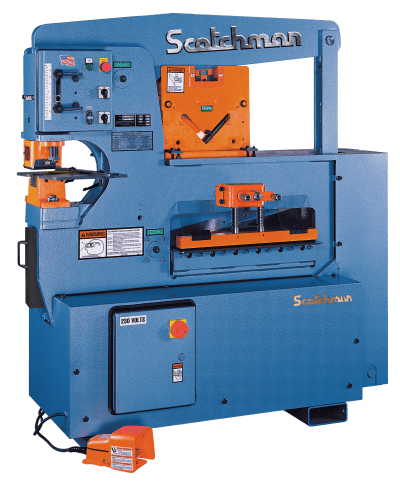

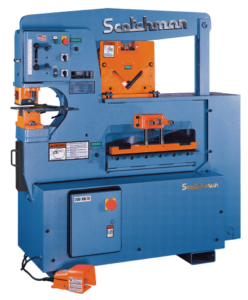

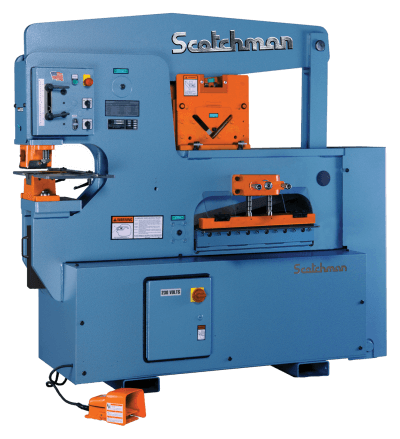

  • 65 to 120 ton models: the 6509-24M, 9012-24M and 12012-24M have 24 in flat bar shears with 4-way reversible blades, a 6 in angle shear and a punch gauging table with fence and scale.
  • Controls: an adjustable electric stroke control with scale and an electric remote foot pedal on every model.
  • Built in the USA: guards to ANSI B11.5 safety standards and a three-year warranty on parts.

Specifications at a Glance

  • Punching: 45 ton, 1-1/8 in hole in 1/2 in (Porta Fab 45); 50 ton, 13/16 in hole in 3/4 in (50514-EC, 5014-ET); 65 ton, 1-1/16 in in 3/4 in (6509-24M); 90 ton, 1-1/8 in in 1 in (9012-24M); 120 ton, 1-1/2 in in 1 in (12012-24M)
  • Throat depth: 4-1/4 in (Porta Fab 45); 6 in (50514-EC); 4 in (5014-ET); 9 in (6509-24M); 12 in (9012-24M, 12012-24M)
  • Flat bar shear: 6 in (Porta Fab 45); 14 in (50-ton models); 24 in (65 to 120 ton), up to 1 x 12 in or 1/2 x 24 in on the 12012-24M
  • Angle shear at 90°: 3 x 3 x 5/16 in (Porta Fab 45); 4 x 4 x 3/8 in (50-ton models); 6 x 6 x 3/8 in (6509-24M); 6 x 6 x 1/2 in (9012-24M, 12012-24M)
  • Motor: 2 hp, 110 V (Porta Fab 45); 3 hp, 3-phase (50-ton models); 5 hp, 3-phase (65 to 120 ton); single-phase options

Who It’s For

Shops that want one ironworker to handle punching, shearing, bending and notching, from job-site work to medium and larger fabrication.

Sales & Service from Icon

Icon Machine Tool sells Scotchman machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Scotchman Spec Sheets (PDF)  Talk to a Specialist: (816) 300-0019
