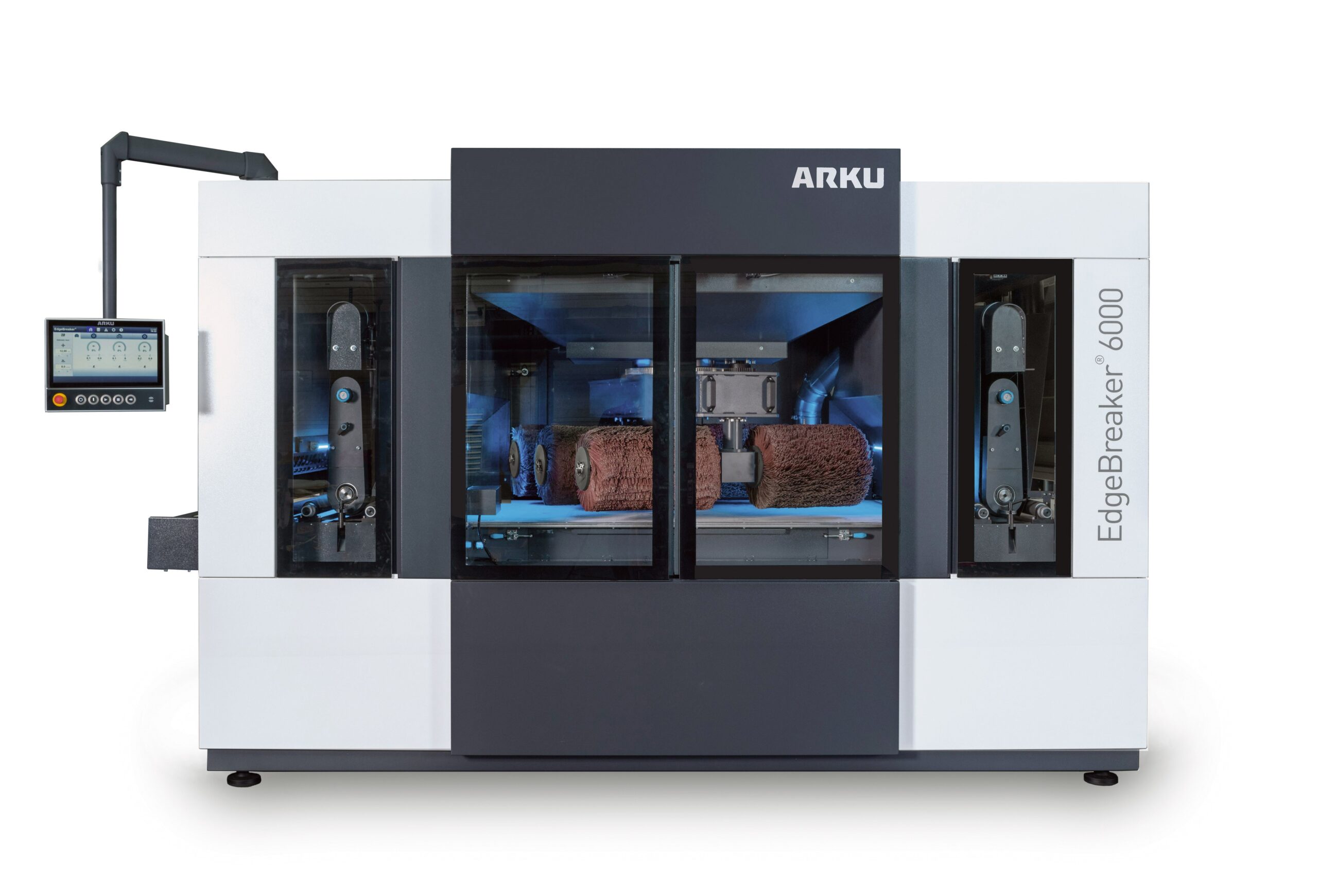

EdgeBreaker® 6000

This universal deburring machine, deburrs and edge rounds small and large materials. On top of that, it also provides a surface finish, The EdgeBreaker® 6000 impresses with a very even edge rounding result. If necessary up to a 2 mm radius.

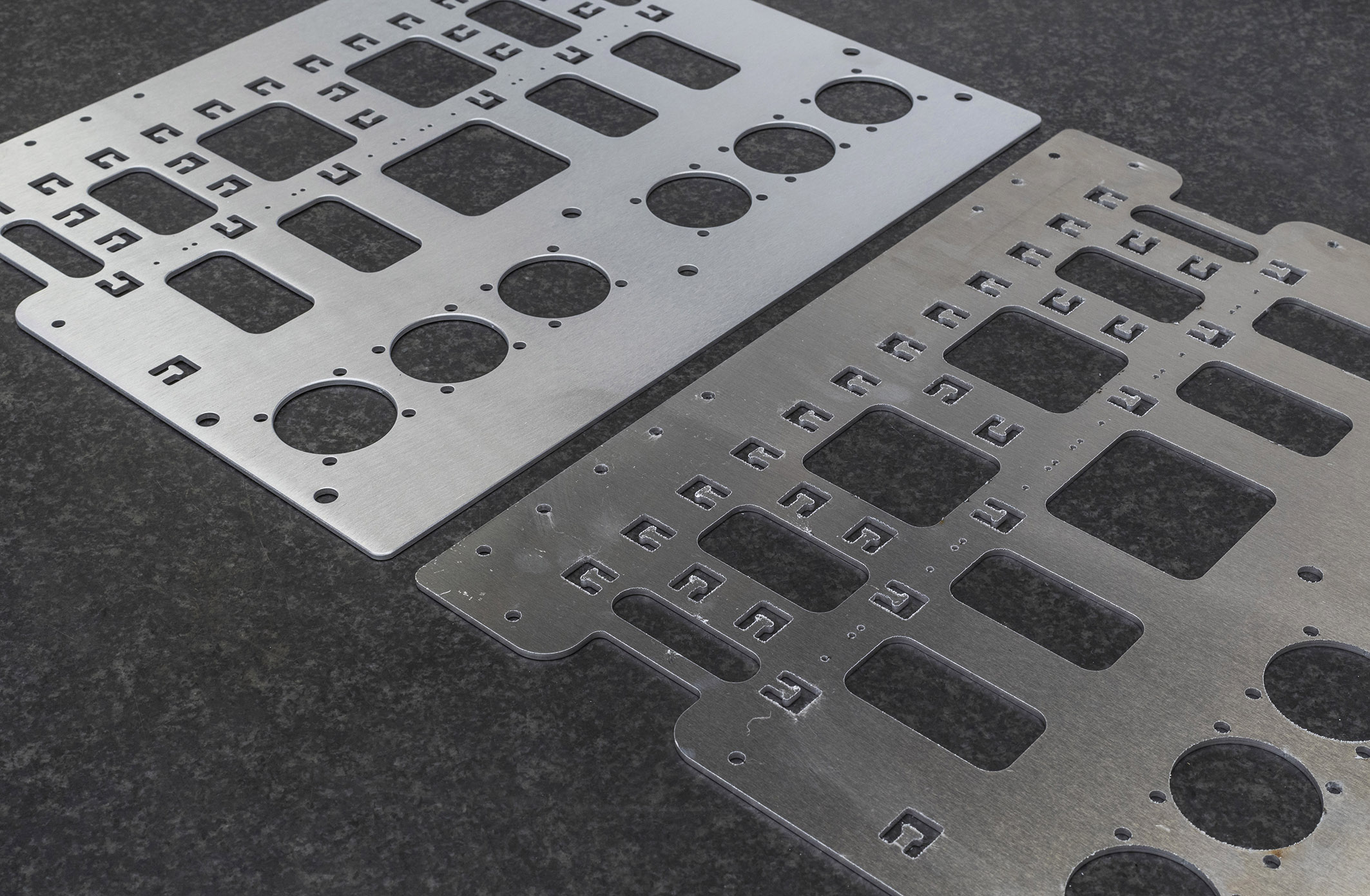

The EdgeBreaker® 6000 deburr machine is specifically designed for the complete processing of materials after punching and laser cutting. This includes deburring, edge rounding and surface finishing. The distinctive rotary brush system ensures a uniform edge rounding result and a radius of up to 2 mm. Thanks to the vacuum belt, even small parts can be processed. With the grinding belt, rotary brushes and finishing roller, the EdgeBreaker® 6000 is the most versatile deburring machine in the family of EdgeBreakers®.

Advantages:

• Application versatility
  The EdgeBreaker® 6000 is capable of processing a broad range of part sizes. From small to large parts, punched or laser cut – this machine is capable of processing your entire range of parts. Surface finishing required as well? No problem. This is the best all-around machine for a fabricator who want to be prepared for the requirements of tomorrow.
• Unmatched rounding up to 2 mm

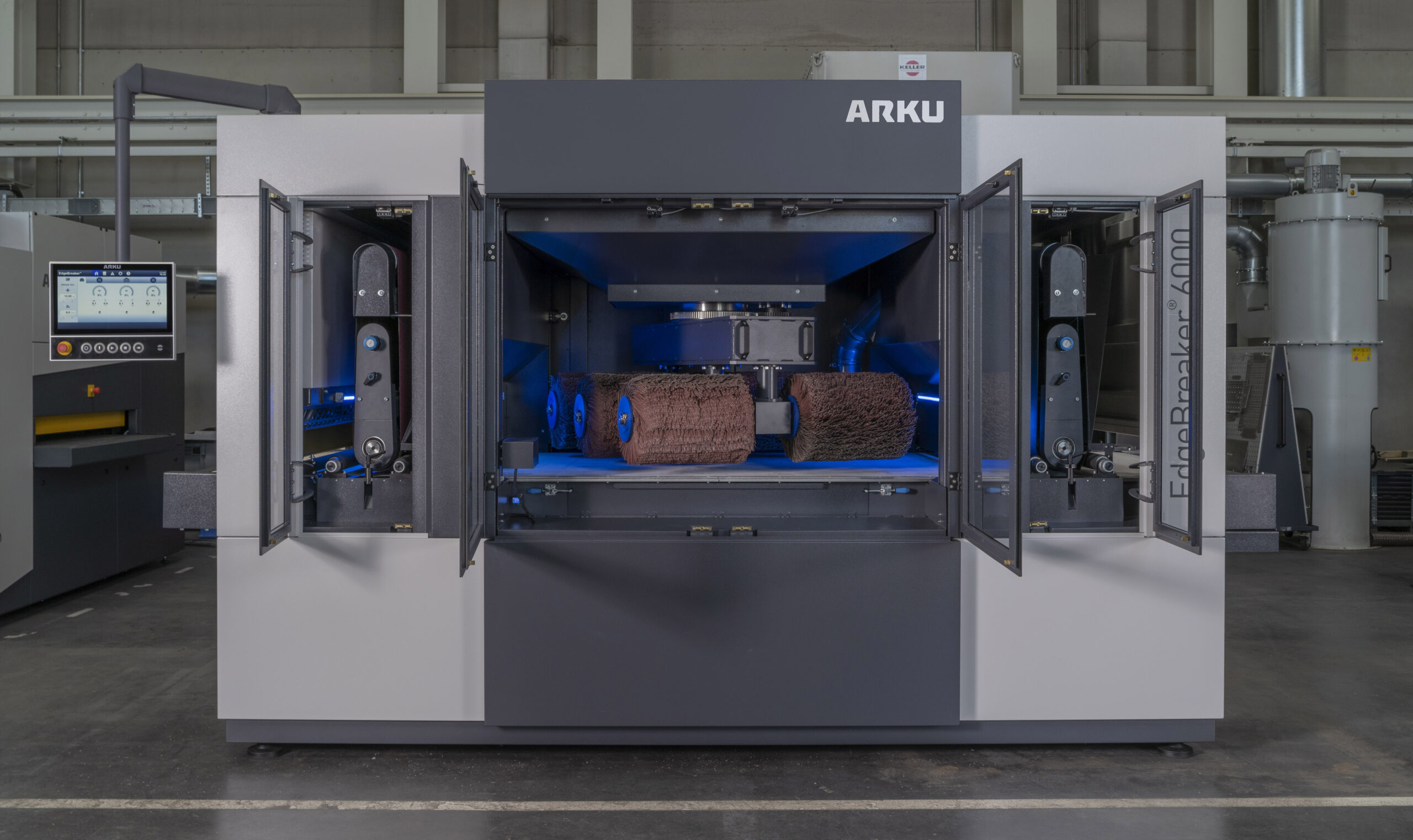

  The most distinctive unit in the EdgeBreaker® 6000 is the rotary brush system. It can achieve a unique rounding result along the edges. The brushes rotate in alternating directions, so you can achieve a consistent result on the inner and outer contours of your parts. If necessary, a radius up to 2 mm is possible.
• User-friendly
  The touchscreen HMI is truly intuitive. This feature enables even new operators to quickly and easily setup the machine. It can even give you guidance on operating and maintenance. For efficient processing and minimal operator error.
• Quick changing of abrasive media
  The EdgeBreaker® 6000 was designed with the goal of keeping downtime to a minimum. All abrasive media of the various processing units can easily be changed, and the inside of the machine is purposefully accessible for faster routine cleanings and maintenance.
• Automatic calibration / media wear compensation
  For consistent results, it’s important to know the remaining length of the abrasive media. This is crucial to producing repeatable, high-quality parts. The EdgeBreaker® 6000 measures the remaining length of the abrasive media and automatically compensates for the wear, further minimizing operator error.

Technical Data.
Processing: single-sided, dry
Material thickness: 0.5 – 25 mm (0.02″ – 0.98″)
Max. working width: 1300 mm (51″)
Weight: approx. 6,500 kg (14,300 lbs)
Dimensions: 2100 x 4200 x 2350 mm (79″ x 165″ x 92″)
