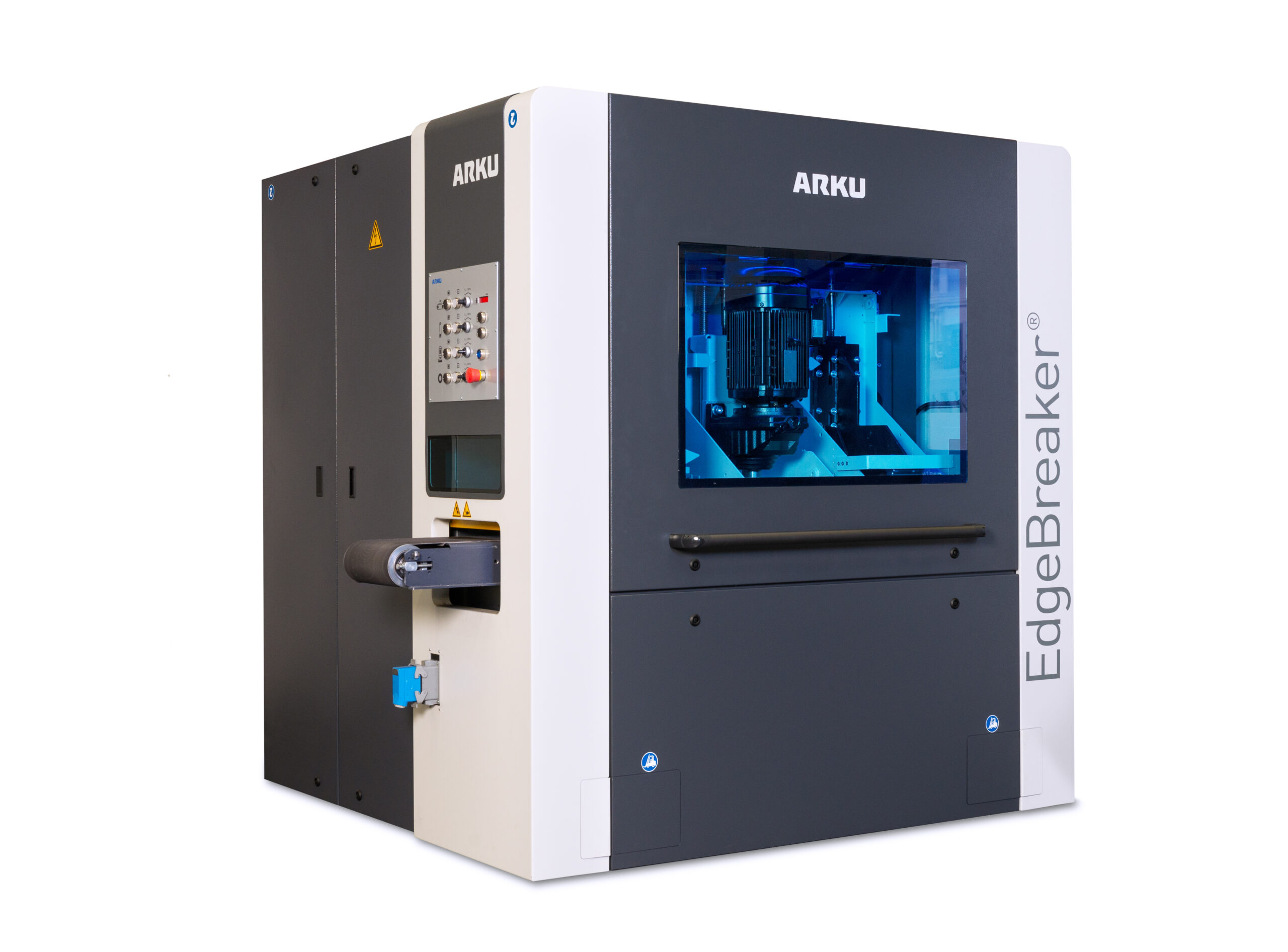

EdgeBreaker® 1000

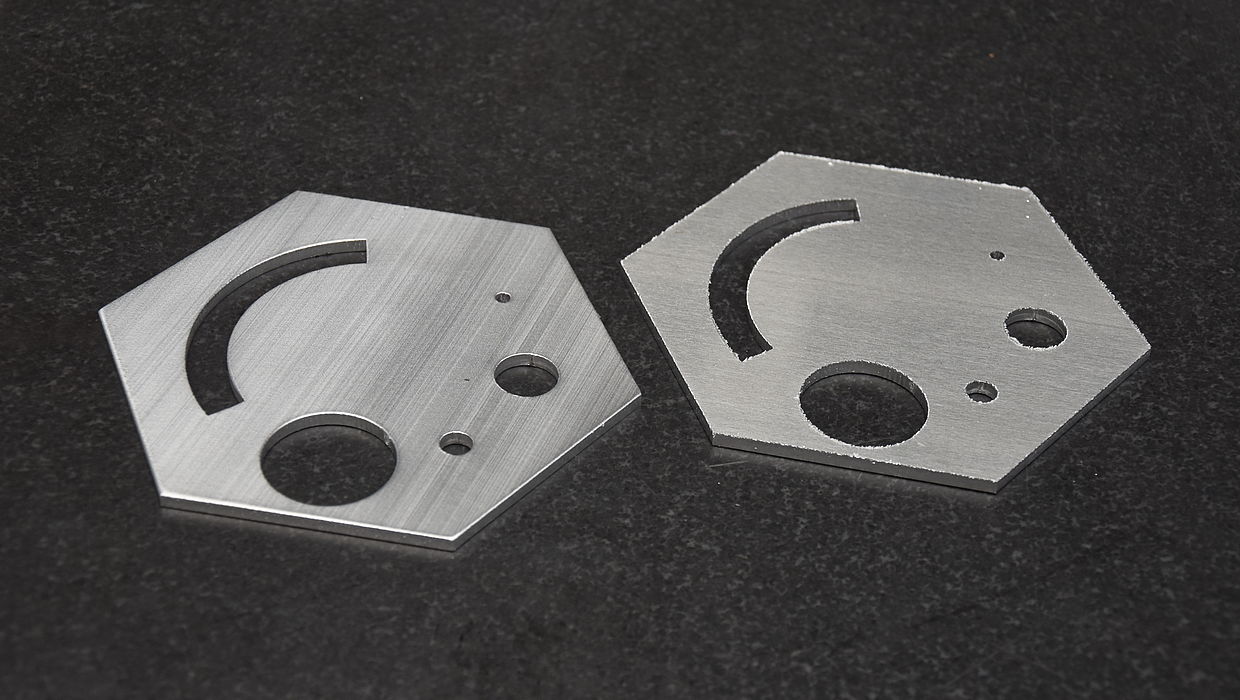

The EdgeBreaker® 1000 is ideal for small parts. It deburrs and edge rounds single-sided, while also being able to provide the material with the desired finish.

Deburr and edge round small parts cost-effectively. This is all easily possible with the EdgeBreaker® 1000. It was developed in cooperation with our customers specifically for such a task. The final result is a sophisticated piece of machinery which is highly flexible for various processing needs.


  • Compact
    The EdgeBreaker® 1000 is built in a compact way, with the necessary extraction unit already integrated.
  • Flexible

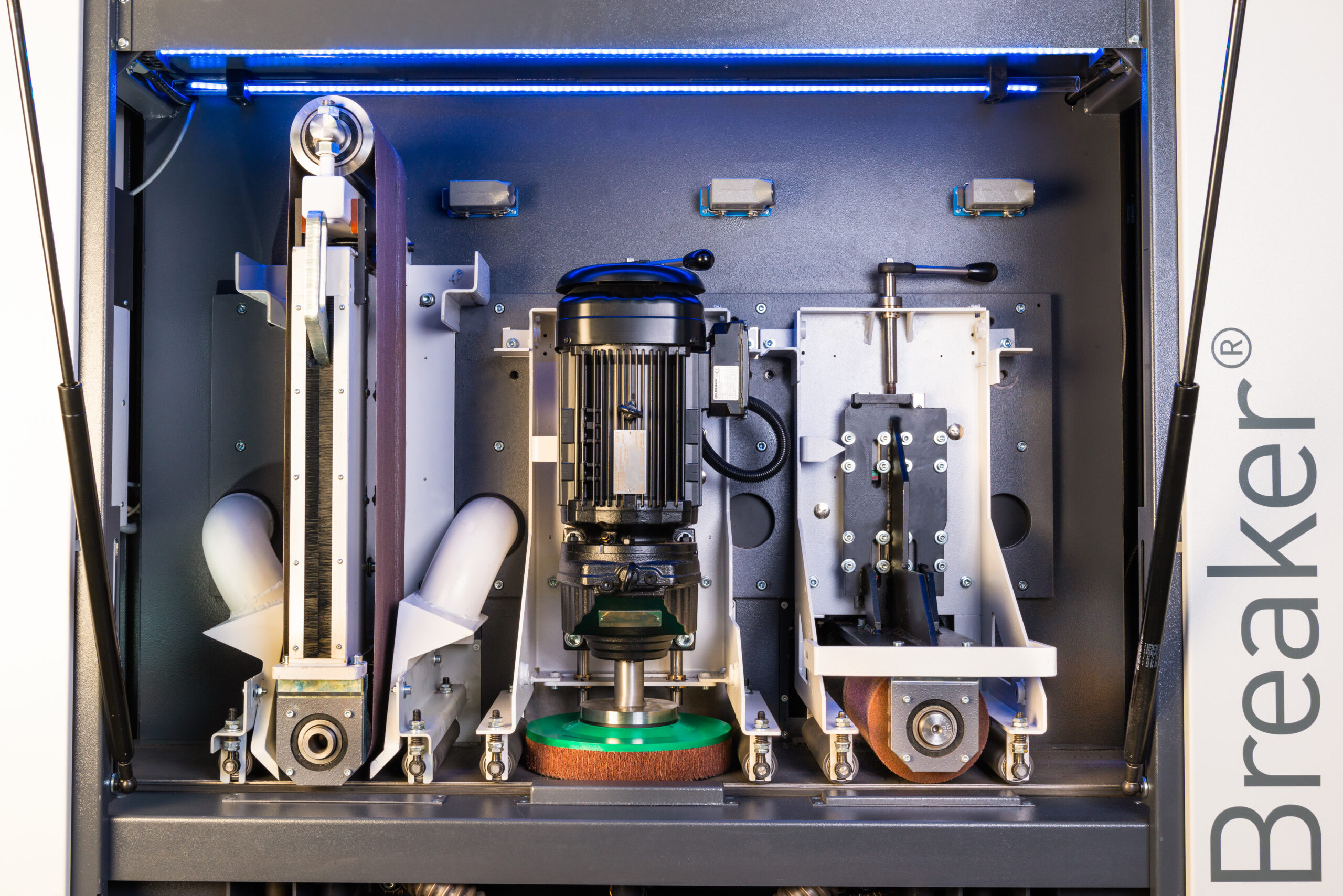

    With various procssing units and processing media, the machine is highly flexible when it comes to processing. This is ideal for your current and future tasks in deburring, edge rounding and finishing. The machine allows you to constantly adapt to your various processing needs.
  • Quick changing of abrasive media
    All processing units are equipped with a quick change system with the goal of keeping downtime to a minimum. The abrasive media can be combined depending on the requirements. This is optimal for edge and surface processing.
  • User-friendly
    The operator panel is very intuitive and easy to understand. This feature enables even new operators to quickly and easily setup the machine. For efficient processing and minimal operator error.

Technical Data
Processing type: single-sided, dry
Material thickness: 0.5 – 12 mm (0.02″ – 0.47″)
Max. working width: 250 mm (9.8″)
Weight: approx. 3,500 kg (7,700 lbs)
Dimensions: 1800 x 2000 x 2000 mm (71″ x 79″ x 79″)
