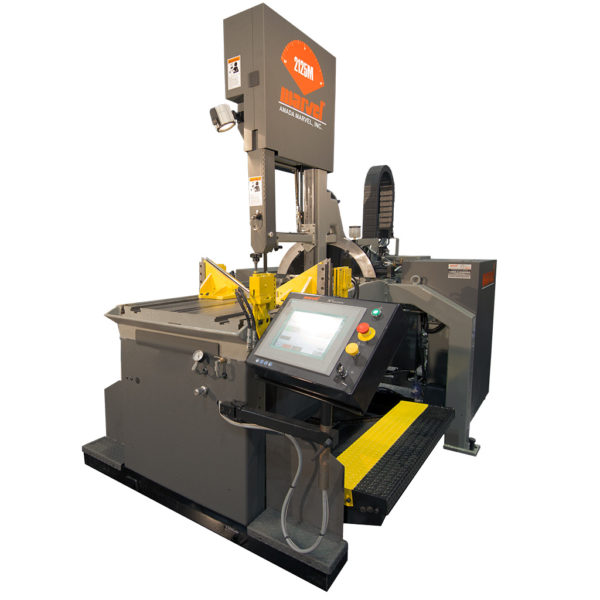

Description
Key Features
- Servo bar feed: 48 in stroke at up to 60 ft/min, servo driven with encoder feedback, double ball screws and linear guides for ±0.005 in per index. Longer shuttle tables of 8, 13 and 18 ft are optional.
- PC3 Programmable Control: 12 in color touchscreen with graphical part programming, memory for up to 500 jobs and parts, and a customizable material library.
- Electric tilt to 60°: the column tilts left and right with encoder feedback, positioned from the PC3 touchscreen.
- 3° canted column: a standard 3° forward approach angle for faster cutting of structural material.
- Easy-load blade guides: rotating combination carbide and ball bearing roller guides with a self-tensioning design; the upper guide arm positions and locks hydraulically.
- Full-stroking hydraulic vise: 9.5 in high x 15 in wide 60° faceplates that come off without tools, for miters or 90° cuts at the blade.
- Ball screw blade feed: direct force sensing electric ball screw feed, 0 to 300 lb.
Specifications at a Glance
- Capacity at 0°: 20 in round; 20 x 25 in rectangular
- Capacity at 45°: 17 in round; 20 x 17 in rectangular
- Capacity at 60°: 11.25 in round; 20 x 11.25 in rectangular
- Blade: 18 ft 2 in x 1.5 in x 0.050 in, 30 to 500 ft/min
- Motors and feed: 10 hp blade; 5 hp hydraulic; 48 in servo shuttle
Who It’s For
Production fabricators cutting large structural shapes and tube to programmed lengths and miter angles.
Sales & Service from Icon
Icon Machine Tool sells Marvel machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
