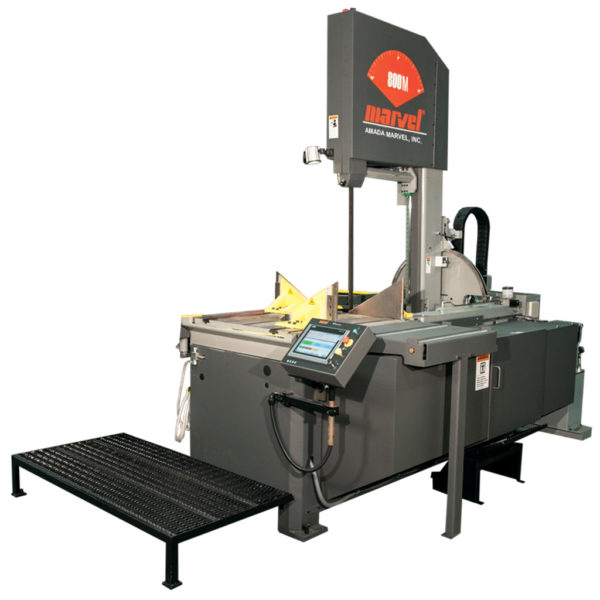

Description
Key Features
- Electric tilt to 60°: the chain-driven column tilts left and right with encoder feedback, positioned from the PC3 touchscreen.
- 3° canted head: standard for faster cutting of structural material; a straight column is optional for notching or cutting rounds and pipe.
- Easy-load blade guides: rotating combination carbide and ball bearing roller guides with a self-tensioning design; the upper guide arm positions and locks hydraulically.
- Ball screw blade feed: direct force sensing electric ball screw feed, 0 to 350 lb, with hydraulic blade tension.
- Full-stroking hydraulic vise: with work-rest rollers on the entry and discharge sides of the bed; variable vise pressure is optional.
Specifications at a Glance
- Capacity at 0°: 31.25 in round; 31.25 x 37.5 in rectangular
- Capacity at 45° right: 25.5 in round; 31.25 x 25.5 in rectangular
- Capacity at 60° right: 17.5 in round; 31.25 x 17.5 in rectangular
- Blade: 25 ft x 2 in x 0.063 in, 60 to 400 ft/min
- Motors: 15 hp blade; 5 hp hydraulic
Who It’s For
Fabricators cutting large structural beams, tube and solids up to 31.25 in wide that need miters in both directions.
Sales & Service from Icon
Icon Machine Tool sells Marvel machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
