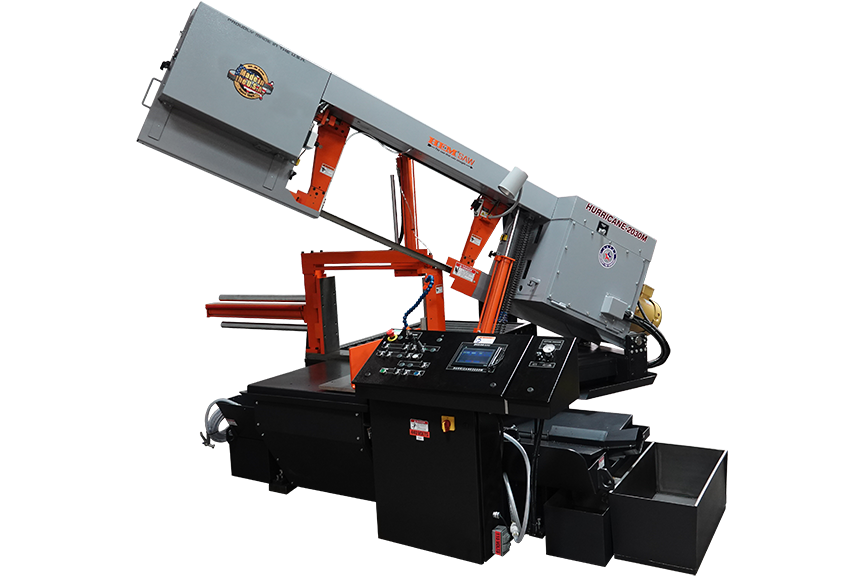

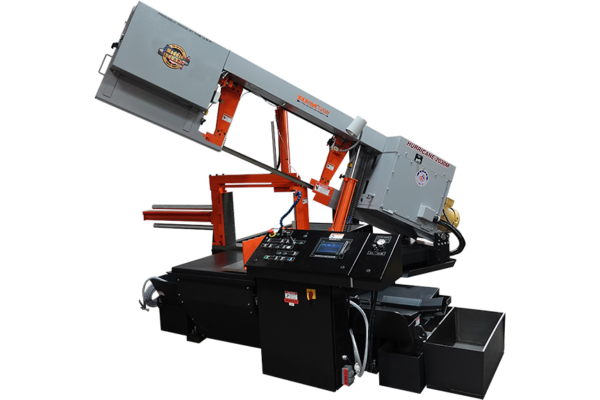

HE&M Hurricane 2030

The HE&M Hurricane 2030 is a horizontal pivot miter band saw that cuts up to 30 x 20 in and miters to 60° in one direction. It comes as the semi-automatic 2030M or the automatic 2030A-CTS, with programmable miters and a 34 in bar-feed. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Powered miter to 60°: in one direction, with an angle readout; programmable on the 2030A-CTS.
  • Touchscreen control: in a swing-away console for settings, operation and diagnostics: 7 in on the 2030M, 8 in on the 2030A-CTS.
  • Job library (2030A-CTS): saves cutting jobs for later recall, with a 34 in multiple-index hydraulic bar-feed.
  • Cut Watcher: monitors the straightness of the cut and pauses the saw if it cuts out of square for more than 20 seconds. Standard on the 2030A-CTS, optional on the 2030M.
  • 10 hp blade drive: drives a 1.5 in blade, with powered blade tension, a powered guide arm and carbide blade guides.
  • Chip auger and coolant: a chip auger, flood coolant with a wash-down hose, and a blade brush are standard.

Specifications at a Glance

  • Capacity, straight cut: 30 x 20 in rectangular; 20 in round; 20 in square
  • Blade: 20 ft 6 in x 1.5 in x 0.050 in
  • Motors: 10 hp blade; 2 hp hydraulic (2030M) or 5 hp (2030A-CTS)
  • Bar-feed (2030A-CTS): 0 to 34 in hydraulic, multiple index

Who It’s For

Fabricators cutting structural shapes, tube and solids up to 30 in wide that need miters in one direction, including bundles.

Sales & Service from Icon

Icon Machine Tool sells HE&M machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

HE&M Brochure (PDF)  Talk to a Specialist: (816) 300-0019
