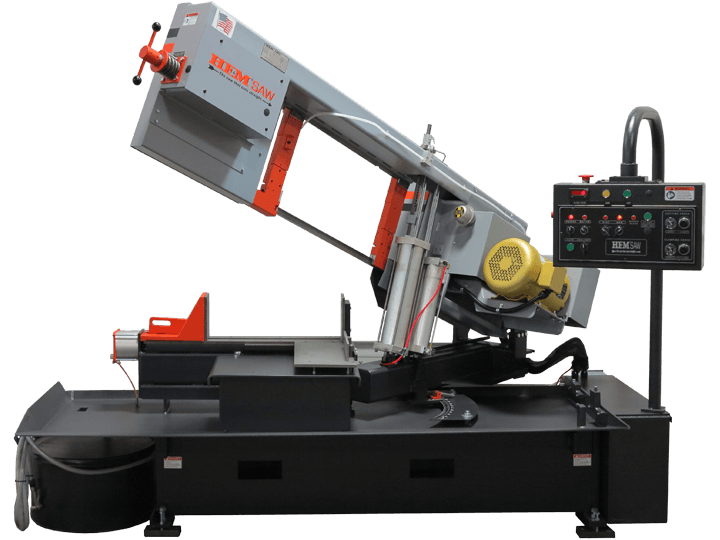

HE&M Cyclone

The HE&M Cyclone is a horizontal pivot miter band saw that cuts up to 22 x 16 in with a 7.5 hp motor and a 1.25 in blade. The semi-automatic Cyclone M miters to 60° in one direction; the automatic A-4 and A-C miter to 45° and feed material on a 24 in bar-feed. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Three versions: the semi-automatic Cyclone M; the Cyclone A-4, with up to 4 indexes of 24 in for same-length parts; and the Cyclone A-C, which saves up to 99 jobs of different lengths and quantities and runs them in sequence.
  • Miters one direction: to 60° on the Cyclone M and 45° on the automatic versions; 60° manual-cut capability is an option on the A-4 and A-C.
  • Easy View console: on the Cyclone M it is mounted on a swing arm, with push-button blade speed and adjustable cutting force and clamping pressure.
  • Cutting control: variable blade speed with an LED readout, adjustable feed rate and cutting pressure, and carbide blade guides.
  • Coolant and blade brush: flood coolant with a wash-down hose and a blade brush are standard.

Specifications at a Glance

  • Capacity: 22 x 16 in rectangular
  • Blade: 16 ft x 1.25 in x 0.042 in
  • Motor: 7.5 hp
  • Bar-feed (A-4 and A-C): 0 to 24 in air stroke

Who It’s For

Shops cutting solids and structural shapes up to 22 in wide that need miters in one direction, including bundles.

Sales & Service from Icon

Icon Machine Tool sells HE&M machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

HE&M Brochure (PDF)  Talk to a Specialist: (816) 300-0019
