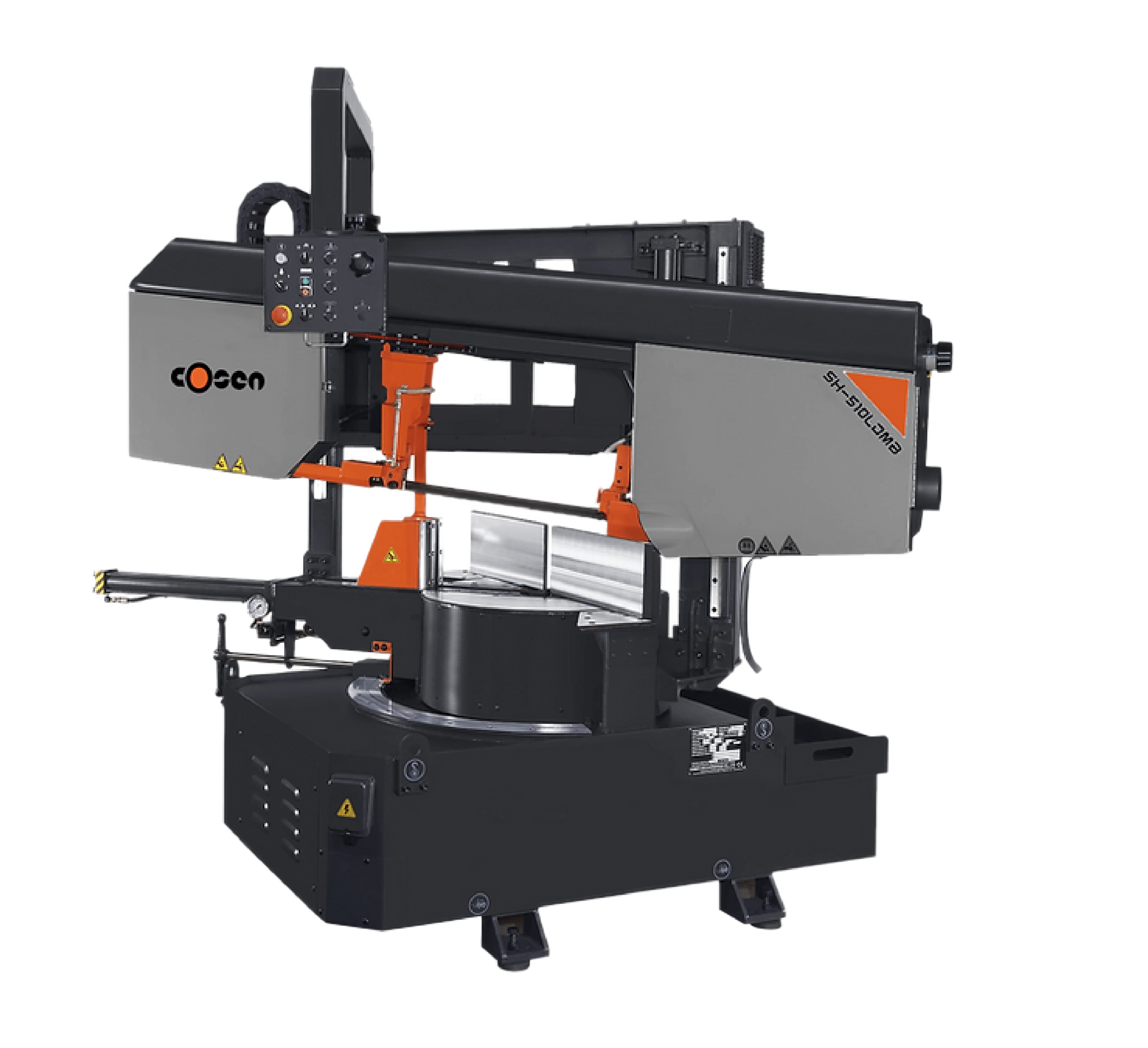

Cosen SH-510LDM

The Cosen SH-510LDM is a semi-automatic structural miter band saw. It cuts up to 12.5 in round or 13 x 20 in rectangular straight, miters to 60° both ways, and its hydraulic vise moves with the guide arm. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Miters both ways: a heavy-duty cast iron swivel base for straight cuts and miters up to ±60°.
  • Linear guide way system: the saw head runs on precision linear guides, with a cast iron guide arm.
  • Synchronized vise: the cast iron hydraulic vise moves with the guide arm, and its split jaw helps reduce burrs.
  • Variable blade speed: an inverter drive gives any speed from 82 to 328 ft/min, with hydraulic blade tensioning and carbide blade guides and bearings.
  • Simple controls: hydraulic powered controls on an adjustable control panel arm.
  • Coolant and cleanup: adjustable flood coolant, an extra hose for cleaning the work bed and chip auger, and a motor-driven blade brush.

Specifications at a Glance

  • Capacity, straight cut: 12.5 in round; 13 x 20 in rectangular
  • Capacity at 45°: 12.5 in round; 13 x 12.5 in rectangular
  • Capacity at 60°: 7.8 in round; 13 x 7.8 in rectangular
  • Blade: 16 ft 4 in x 1.25 in x 0.042 in, 3 hp motor
  • Weight: 2,992 lb

Who It’s For

Fabricators cutting structural shapes, tube and solids up to 13 in tall that need miter cuts in both directions.

Sales & Service from Icon

Icon Machine Tool sells Cosen machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
