Cosen SH-1080D

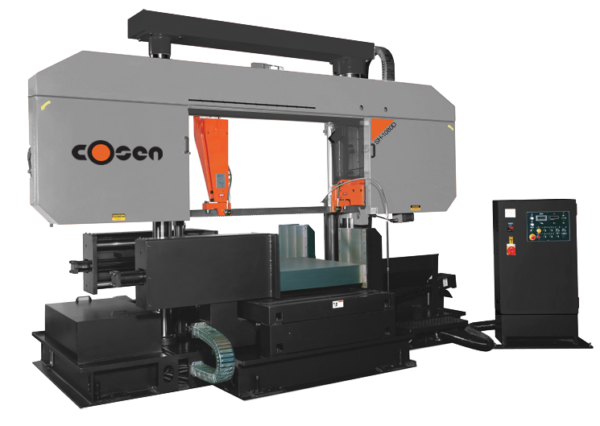

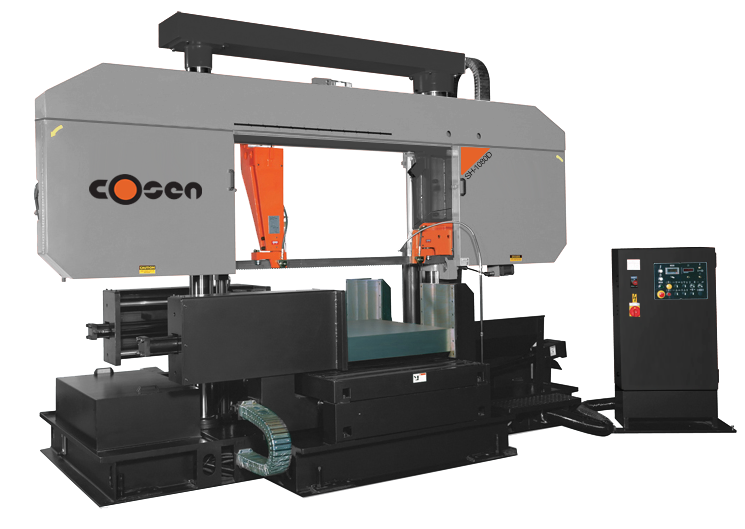

The Cosen SH-1080D is a semi-automatic dual column band saw built for billet and other large stock. It cuts up to 31.5 in round or 31.5 x 40 in rectangular, with a 15 hp blade motor and a 2.625 in wide blade. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Hydraulic dual column: the saw head rides on two columns, with a hydraulically adjusted cast iron guide arm.
  • Variable blade speed: an inverter drive gives any speed from 49 to 293 ft/min from a 15 hp motor, with hydraulic blade tensioning and carbide blade guides and bearings.
  • Feed control: dual valves set feed pressure and feed rate from hydraulic powered controls on a tethered control panel.
  • Gearbox built for side load: designed to take high lateral pressure without thermal distortion.
  • Split-jaw hydraulic vise: cast iron, and the split jaw helps reduce burrs on the cut end.
  • Coolant and blade brush: adjustable flood coolant and a motor-driven blade brush.

Specifications at a Glance

  • Round capacity: 31.5 in
  • Rectangular capacity (H x W): 31.5 x 40 in
  • Blade: 28 ft 10.5 in x 2.625 in x 0.063 in
  • Blade motor and speed: 15 hp, 49 to 293 ft/min
  • Weight: 22,000 lb

Who It’s For

Shops and service centers cutting billet and large solid bar up to 31.5 in, where capacity matters more than automatic indexing.

Sales & Service from Icon

Icon Machine Tool sells Cosen machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Cosen Spec Sheet (PDF)  Talk to a Specialist: (816) 300-0019
