Cosen C-320NC

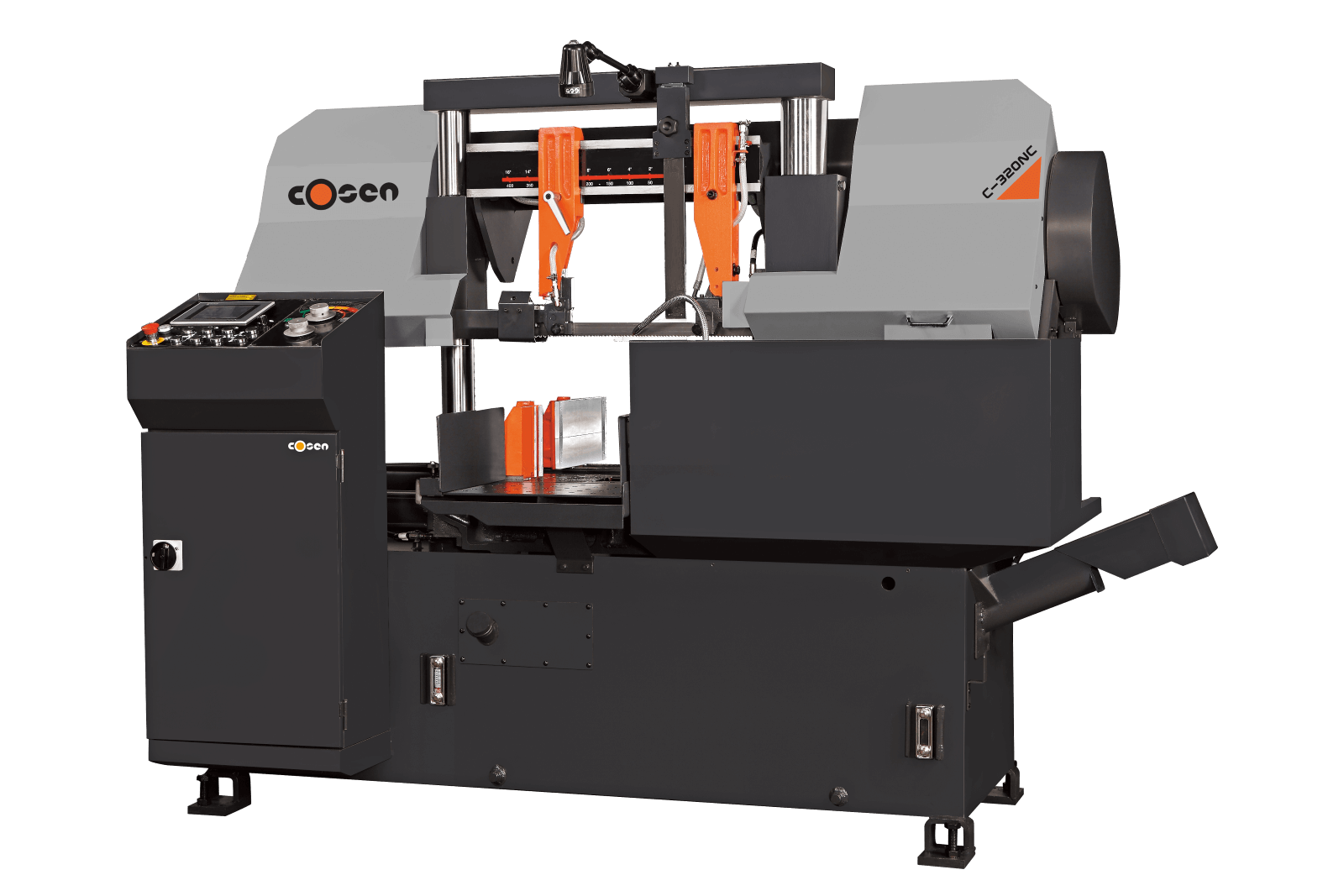

The Cosen C-320NC is an automatic dual column band saw with Cosen’s Smart NC-100 control. It stores up to 100 jobs, indexes material up to 999 in, and cuts up to 12.6 in round or 12.6 x 15 in rectangular with a 5 hp blade motor. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Smart NC-100 control: stores up to 100 jobs with quantity and length of cut, and subtracts blade kerf automatically, so the operator never works out index counts by hand.
  • 5.7 in HMI touchscreen: controls multiple indexing of material up to 999 in long.
  • Hydraulic dual column: the saw head rides on two columns, with precision valves for feed pressure and feed rate and an adjustable cast iron guide arm.
  • Variable blade speed: 66 to 328 ft/min from a 5 hp motor, with hydraulic blade tensioning and carbide blade guides and bearings.
  • Gearbox built for side load: designed to take high lateral pressure without thermal distortion.
  • Split-jaw hydraulic vise: cast iron, and the split jaw helps reduce burrs on the cut end.
  • Coolant and cleanup: adjustable flood coolant, an extra hose for cleaning the work bed and chip auger, and a motor-driven blade brush.

Specifications at a Glance

  • Round capacity: 12.6 in
  • Rectangular capacity (H x W): 12.6 x 15 in
  • Blade: 13 ft 11 in x 1.25 in x 0.042 in
  • Blade motor and speed: 5 hp, 66 to 328 ft/min
  • Weight: 3,758 lb

Who It’s For

Production shops cutting bar, tube and solids up to 12.6 in to repeat lengths, where automatic indexing frees up the operator.

Sales & Service from Icon

Icon Machine Tool sells Cosen machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Cosen Spec Sheet (PDF)  Talk to a Specialist: (816) 300-0019
