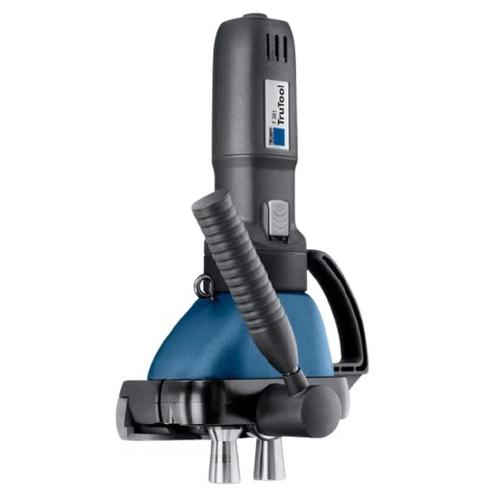

TruTool F 301
$3,600.00
The TRUMPF TruTool F 301 is built for closing Pittsburgh lock-seams on straight or curved ductwork with speed and precision. It automatically adjusts to different sheet thicknesses and requires no setup changes when moving between formed or folded duct sections.
- Sheet Thickness Range: 0.45 mm to 1.0 mm (approximately 26–19 gauge) in mild steel.
- Flange Height: Handles flange heights from 8 mm to 11 mm.
- For Curved and Straight Ducts: Works seamlessly on both inner and outer radii (minimum inner radius 150 mm, outer radius 300 mm).
- Fast Operation: Achieves working speeds between 4 and 7 meters per minute.
- Lightweight Design: Weighs only 5.2 kg with a compact, ergonomic build for easy handling.
- Automatic Adjustment: Automatically adapts to varying sheet thicknesses for consistent, tight seams.
