Description
Key Features

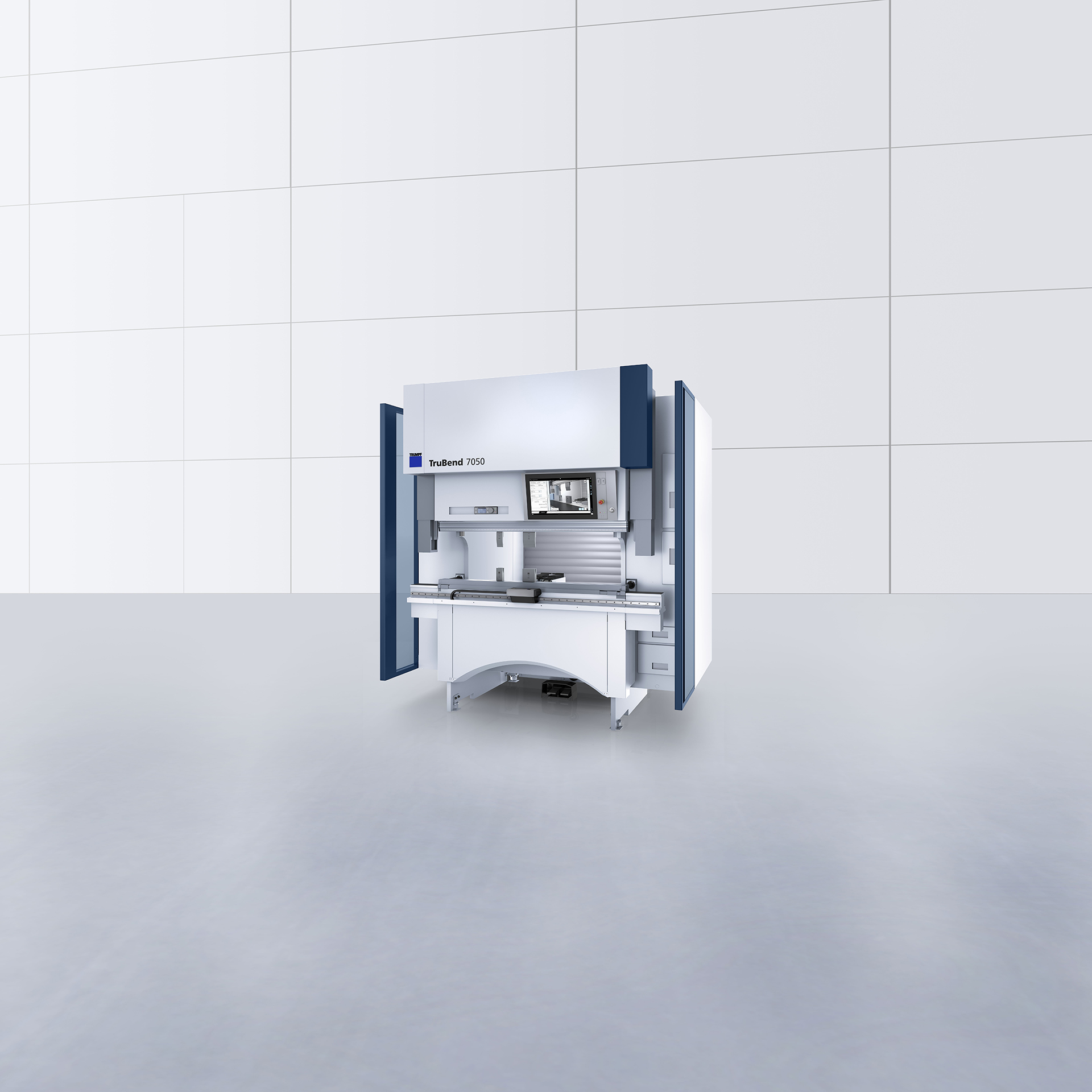

- More reach and force than the 7036: 60 in of bending length and 500 kN of press force, for longer parts and thicker sheet in the same ergonomic design.
- Built around the operator: the TruBend Series 7000 was the first bending machine with an ergonomics certificate. A sit/stand aid, adjustable support table and tilting control keep long runs comfortable.

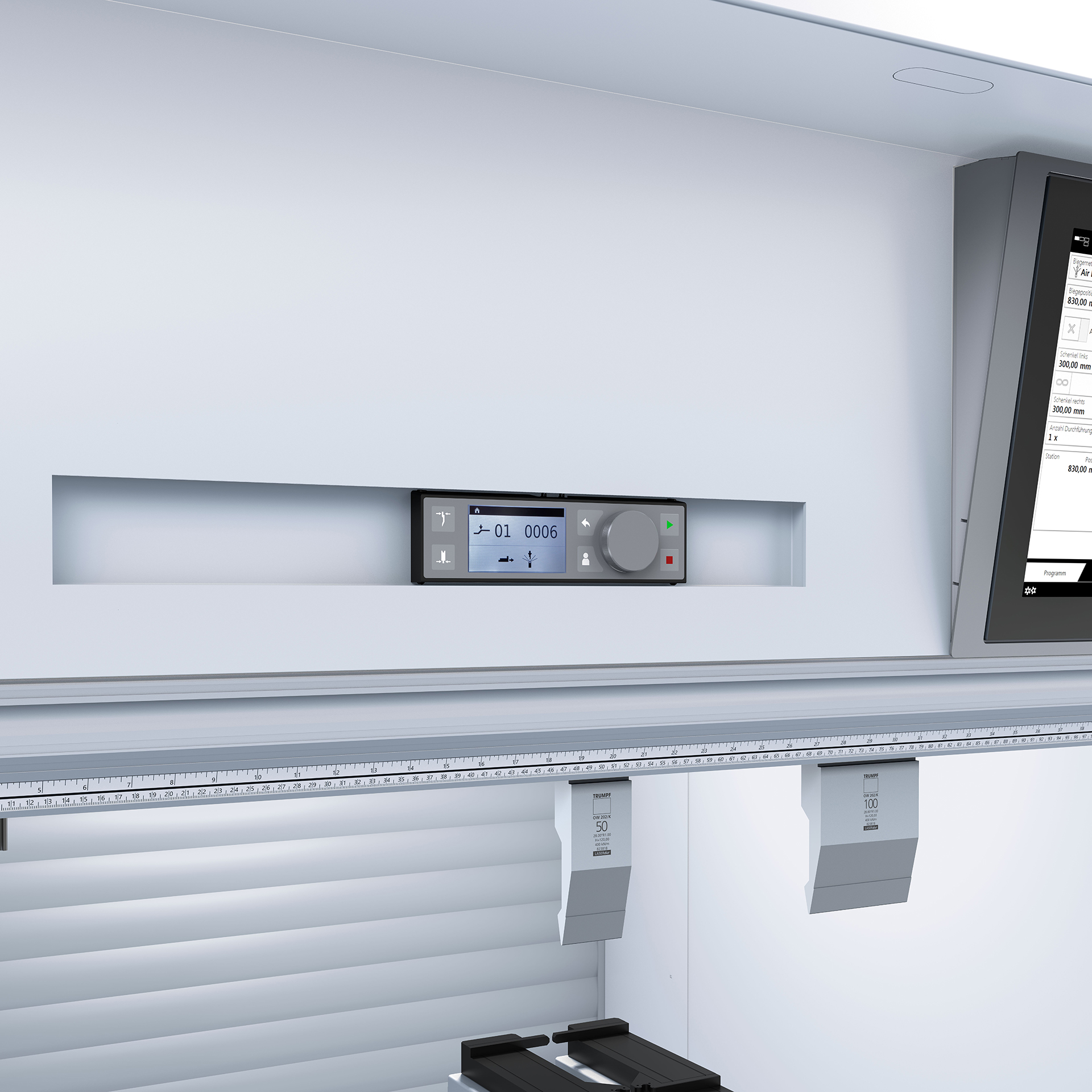

- BendGuard Automatic: the control moves the safety light field to the height of the set-up tools on its own, so setup is fast and safe.
- ACB Wireless and ACB Laser: measure and correct the bend angle automatically. With ACB Speed, springback is measured only on the first part, saving up to 35% of cycle time.
- 6-axis backgauge: positions parts precisely, and the gauge finger shape handles very short flanges without collisions.
- 2D code scanner: reads the bar code or Data Matrix code on the job paperwork and loads the right bending program.
Specifications at a Glance
- Press force: about 56 US tons (500 kN)
- Bending length: 60.2 in (1,530 mm)
- Width between columns: 51.4 in (1,305 mm)
- Usable open height and throat depth: 15.2 in (385 mm) and 9.8 in (250 mm)
- Footprint and weight: 95.3 × 71.1 in (2,420 × 1,805 mm), 12,125 lb (5,500 kg)
Who It’s For

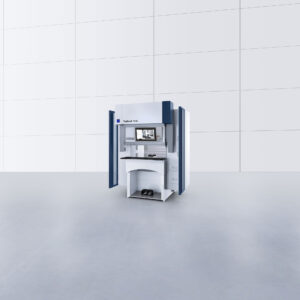

Shops bending small and medium-sized parts up to about 60 in long in volume, including thicker sheet than a TruBend 7036 can handle.
Sales & Service from Icon
Icon Machine Tool is the TRUMPF sales partner for Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
Full Specifications (PDF) Talk to a Specialist: (816) 300-0019
