Description
Key Features
- 6-axis backgauge: up to six CNC-controlled axes position parts for almost any geometry.
- ACB Wireless and ACB Laser: measure and correct the bend angle automatically, so the first part is right. With ACB Speed, springback is measured only on the first part, saving up to 35% of cycle time.
- Thickness Controlled Bending (TCB): sensors detect the sheet thickness and adjust the pressing depth automatically, so thickness variation doesn’t throw off your angles.
- Lower tool displacement: one tool setup for two bending processes, plus special applications such as folding, which saves setup time and tooling cost.
- On-Demand Servo Drive: runs only while the machine is bending, so it is quiet and saves energy, and it moves the press beam at up to 8.5 in/s.
- ToolMaster: the automatic tool changer takes over tool setup, so changeovers don’t wait on the operator.
- Touchpoint TruBend and MobileControl: a touchscreen control that works like a tablet, plus a mobile control that saves the operator walking along the machine.
Specifications at a Glance

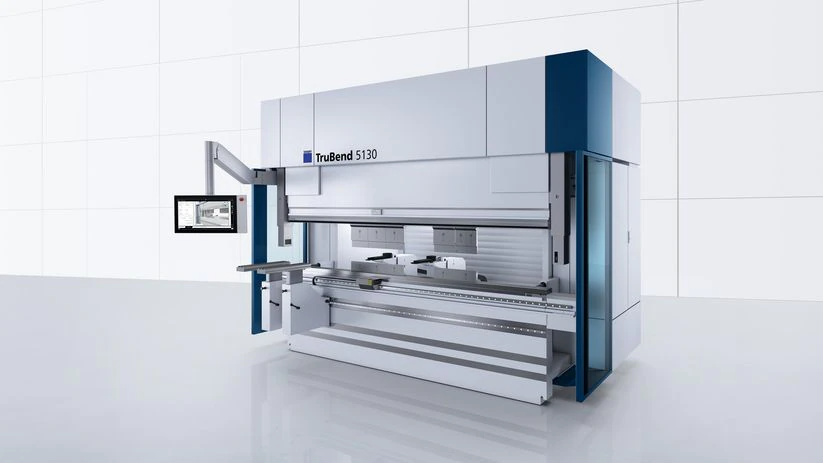

- Models and press force: TruBend 5085 to 5320, about 96 to 360 US tons (850 to 3,200 kN)
- Bending length: 87 to 174 in (2,210 to 4,420 mm), depending on model
- Usable open height: 15.2 in (385 mm) or 24.2 in (615 mm), depending on model
- Throat depth: 16.5 in (420 mm)
- Control: Touchpoint TruBend
Who It’s For
Job shops and manufacturers with a high mix of parts and frequent changeovers that need one press brake to bend thin sheet, thick parts and long profiles accurately.
Sales & Service from Icon
Icon Machine Tool is the TRUMPF sales partner for Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
Full Specifications (PDF) Talk to a Specialist: (816) 300-0019
