TRUMPF TruBend Center 7030

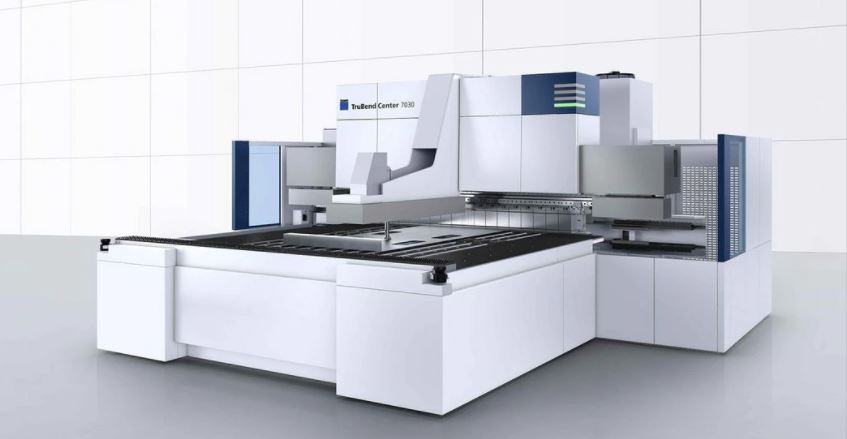

The TRUMPF TruBend Center 7030 is a fully automated panel bender for shops that bend thin sheet parts with many bends, boxes or visible surfaces. It handles sheet up to 0.157 in (4 mm) thick and 123 in (3,123 mm) long, and turns the part between bends on its own. Call Icon Machine Tool at (816) 300-0019 for pricing and a demo.

Categories: , , Brand:

Description

Key Features

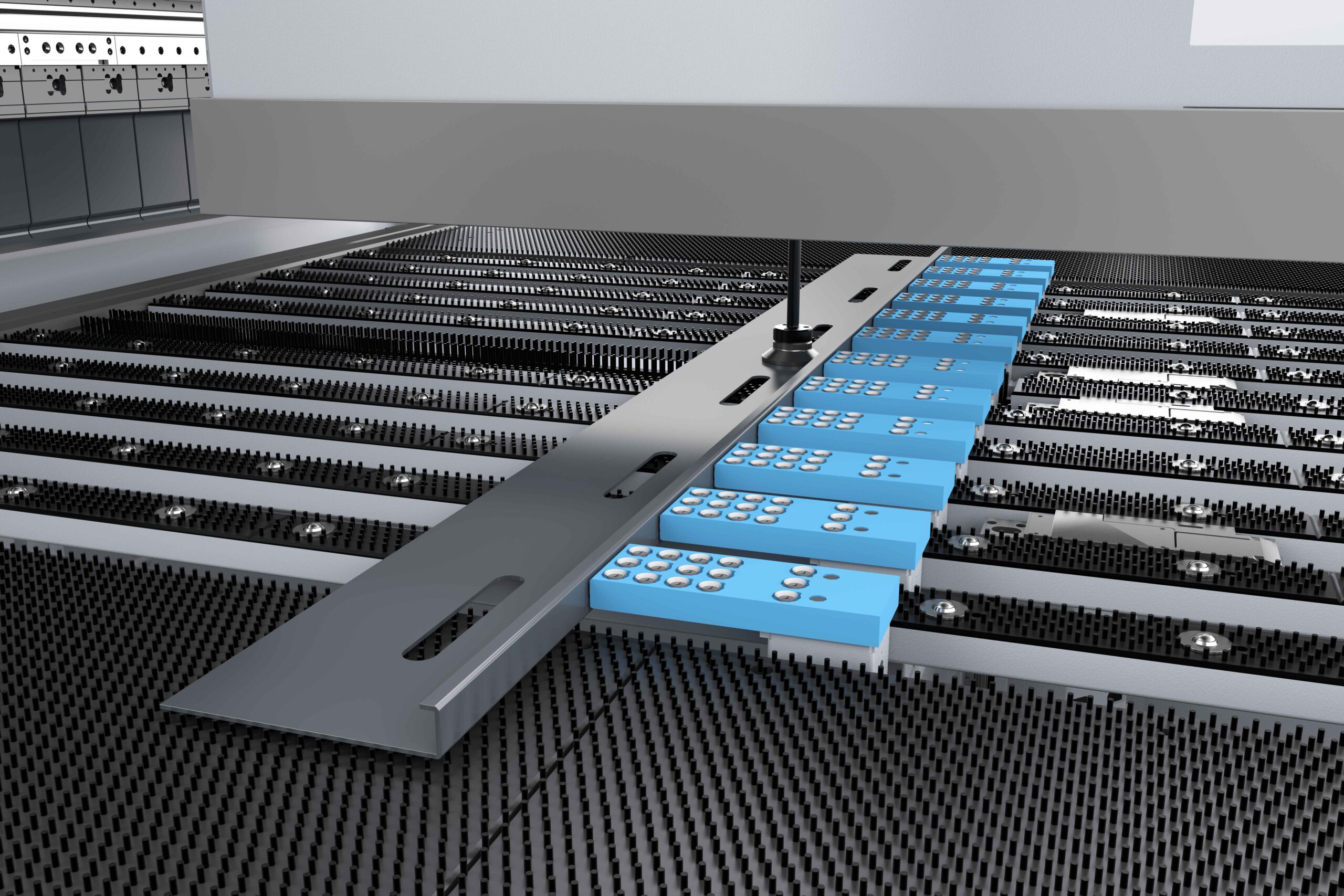

  • Hands-free part handling: after loading, the part manipulator rotates and positions the sheet for every bend, so no one turns parts by hand.
  • Up to three times faster than a press brake: positive and negative bends, radii and folds are made in one process (TRUMPF’s figure).

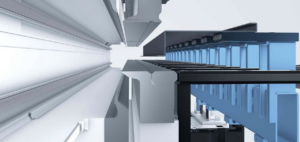

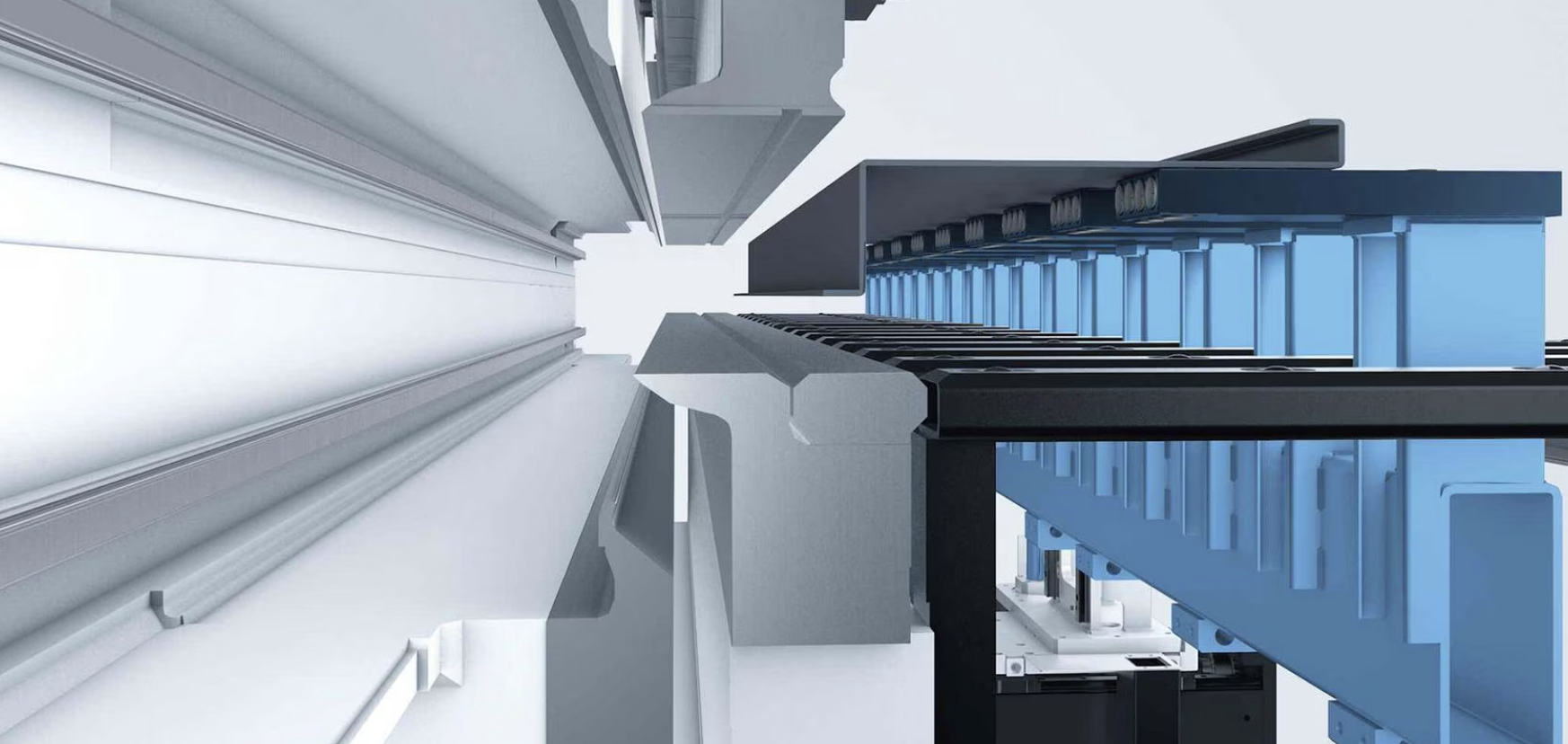

  • Virtually mark-free: the sheet stays flat on the table while the bending beam swings up or down, which protects painted, stainless and other visible surfaces.
  • Large radii with standard tools: the manipulators guide the sheet while the tools make short, closely spaced bends, for smooth curves without special radius tooling.
  • ACB Laser: measures the bend angle without contact and corrects it automatically to ±0.5°, even when sheet thickness varies.
  • Automatic blank holder setup: the machine sets the blank holder tools to each part’s length, so different jobs run back to back without manual tool changes.
  • Automation options: the LoadStation lets the operator load the next sheet while the machine bends; the SheetMaster Bend loads and unloads automatically with suction cups.

Specifications at a Glance

  • Maximum bending length: 123 in (3,123 mm)
  • Minimum bending length: 7.9 in (200 mm)
  • Maximum box height: 8.7 in (220 mm)
  • Sheet thickness: up to 0.157 in (4 mm), including mild steel
  • Angle accuracy with ACB Laser: ±0.5°

Who It’s For

Shops making enclosures, electrical cabinets, panels or drawers from thin sheet, where parts have many bends and handling time and surface marks cost money.

Sales & Service from Icon

Icon Machine Tool is the TRUMPF sales partner for Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
