Description
Key Features

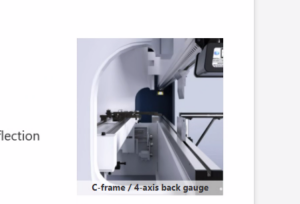

- 4-axis backgauge: positions the sheet accurately, so even complex parts bend right.
- Numerical and graphic programming: the TRUMPF control is quick to program and easy to run, so less experienced operators still turn out consistent parts.

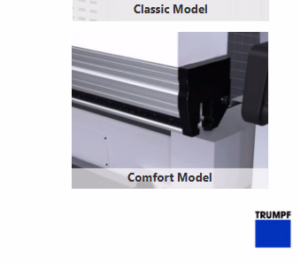

- Classic or Comfort model: two pre-configured versions. The Classic has a QuickClamp tool clamp for general bending; the Comfort adds a TRUMPF hydraulic tool clamp and CNC-controlled crowning.
- Hydraulic upper tool clamp: on the Comfort model, tool changes go quickly, so short runs don’t lose time to setup.
- TecZone Bend programming: TRUMPF’s software can build a programming suggestion, including the NC program, from 2D and 3D part data in a few seconds.
- Remote service and connectivity: TRUMPF remote service support, plus OPC UA interfaces to connect the machine to your own monitoring system.
Specifications at a Glance

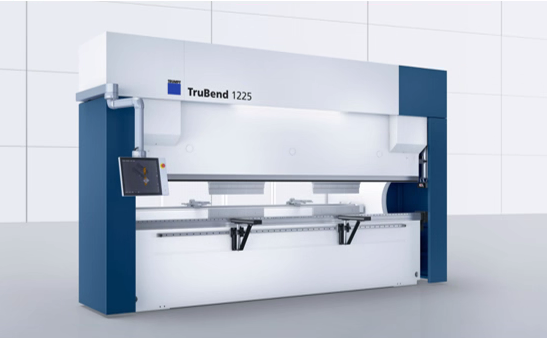

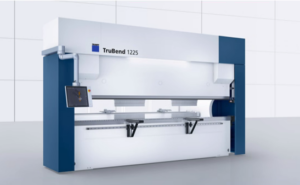

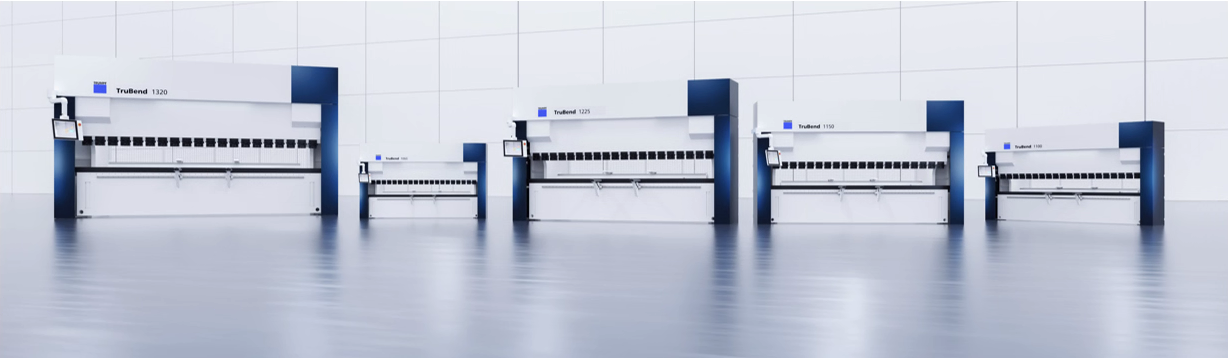

- Models and press force: TruBend 1100, 1150, 1225 and 1320, about 112 to 360 US tons (1,000 to 3,200 kN)
- Bending length: 122 in (3,100 mm) on the 1100 and 1150; 161 in (4,100 mm) on the 1225 and 1320
- Usable open height (Comfort model): 15.7 in (400 mm); 19.9 in (505 mm) on the 1320
- Throat depth: 16.1 in (410 mm)
- Machine weight: about 18,400 to 45,900 lb (8,350 to 20,800 kg), depending on model
Who It’s For
Shops that want TRUMPF part quality at an entry-level investment, whether as their first TRUMPF press brake or a second machine to absorb peak loads and extra orders.
Sales & Service from Icon
Icon Machine Tool is the TRUMPF sales partner for Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
