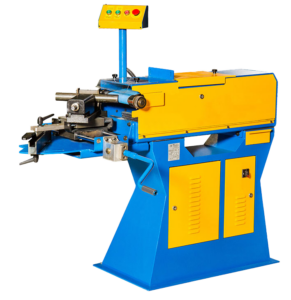

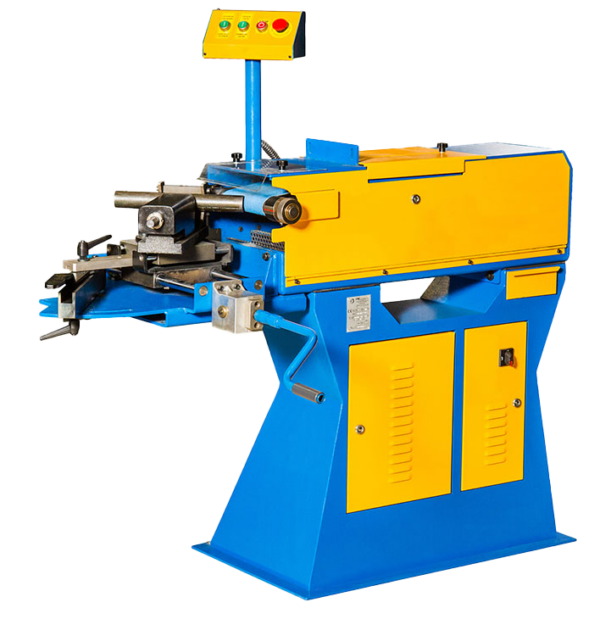

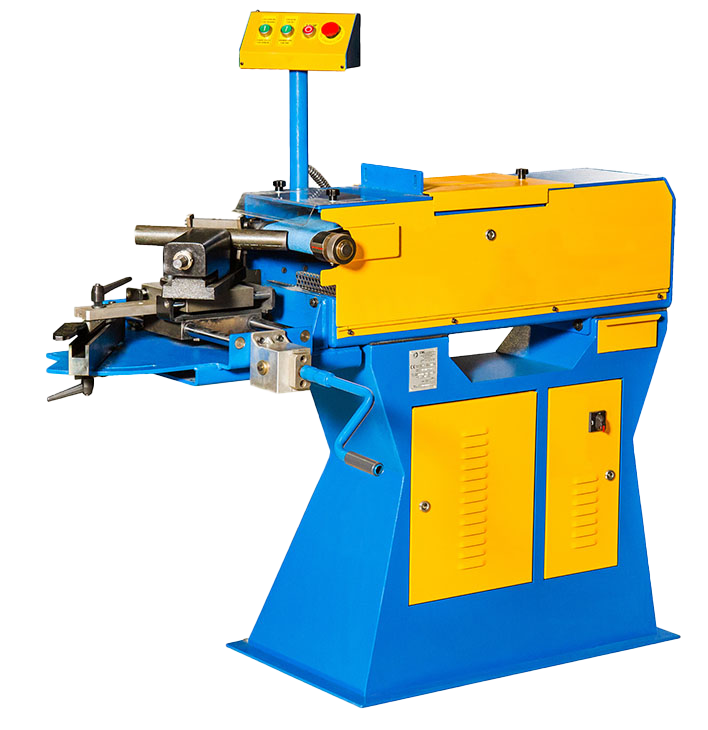

Ercolina EN180 Pipe and Tube Notcher

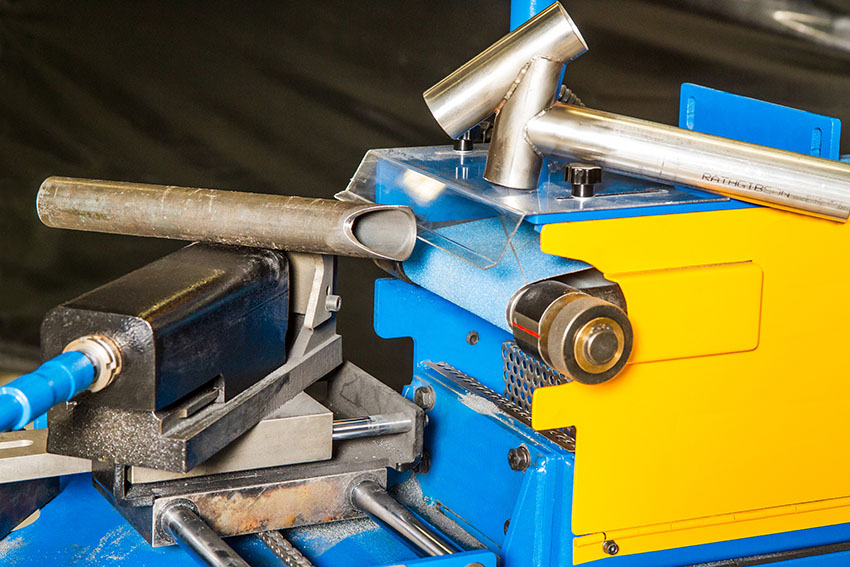

The Ercolina EN180 abrasive belt notcher grinds gap-free notches, ready for welding, in pipe and tube from 1 in to 4-1/2 in O.D. at any angle to 60°. It has a 7 in wide belt and powered dust extraction for larger tube work. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

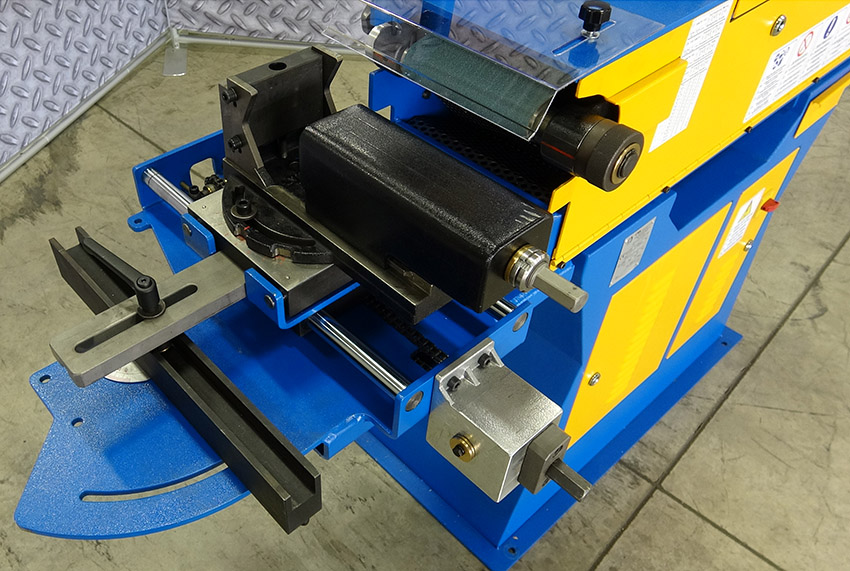

  • Notches to 60°: a graduated 0 to 60° vise with vertical adjustment for offset angles.
  • One-handle feed: moves the pipe or tube into and across the belt at the same time, which extends belt life and reduces heat (patented by Ercolina).
  • Quick-change rollers: a patented roller system, with over 25 notcher rollers available.
  • Belts and grinding: tool-free belt changes, a top-mounted deburring surface, and an optional accessory that converts it to an abrasive belt grinder.
  • Materials: carbon steel, stainless steel, Inconel, chrome-moly, aluminum and titanium with the right abrasive belt.
  • Replaces slower methods: hole saws, end mills, grinding wheels and flame cutting.

Specifications at a Glance

  • Capacity: 1 in to 4-1/2 in O.D.; full 0 to 60° range up to 3 in O.D.
  • Belt: 7 x 79 in, 100 ft/sec; powered dust extraction
  • Motor: 5-1/2 hp, 3,650 rpm; 220V or 480V 3-phase
  • Contact wheel: 5-1/4 in, optional
  • Size and weight: 60 x 24 x 57 in; 680 lb shipping

Who It’s For

Fabricators notching larger tube and pipe, up to 4-1/2 in, for railings, frames, chassis and structures.

Sales & Service from Icon

Icon Machine Tool sells Ercolina machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Ercolina Catalog Page (PDF)  Talk to a Specialist: (816) 300-0019
