Description
Key Features

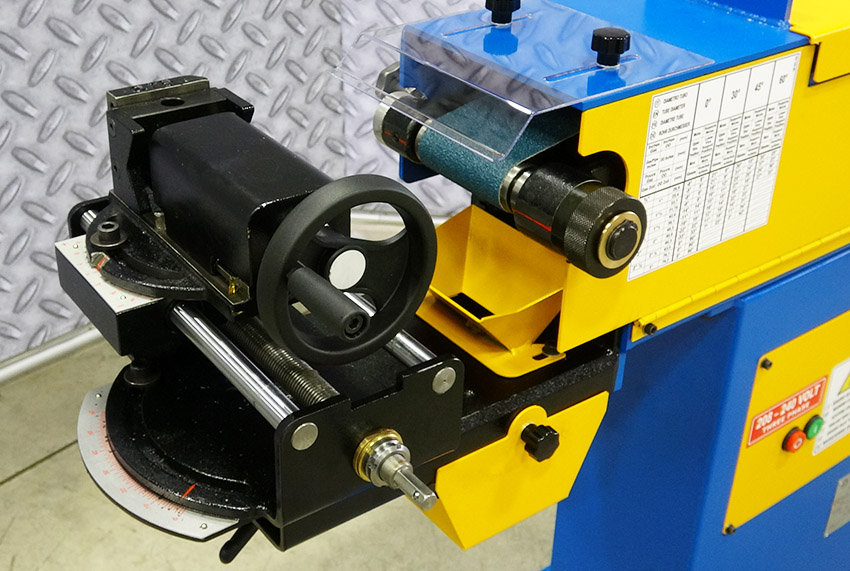

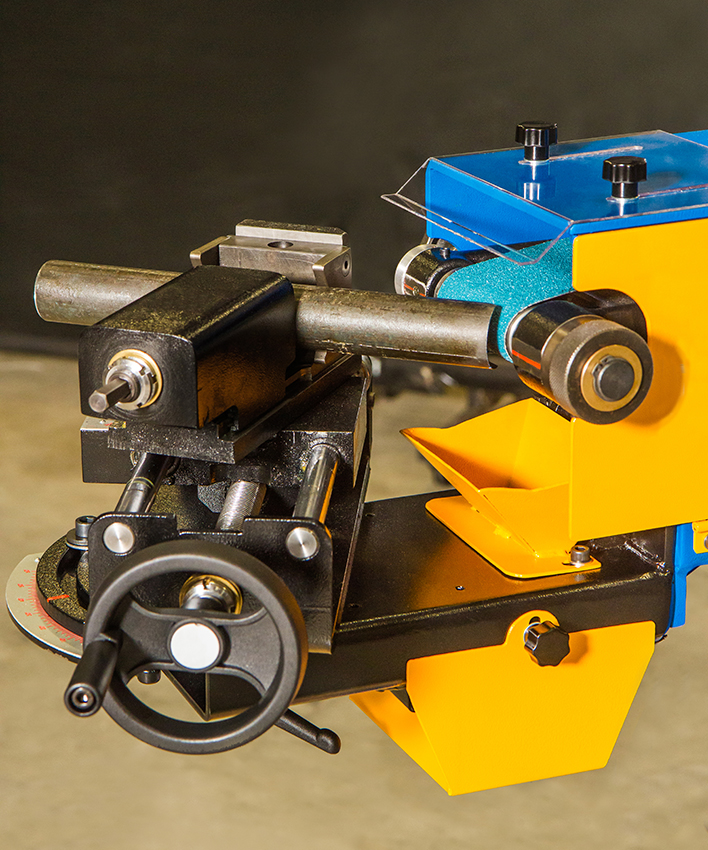

- Notches to 60°: a graduated 0 to 60° vise with vertical adjustment for offset angles.
- One-handle feed: moves the pipe or tube into and across the belt at the same time, which extends belt life and reduces heat (patented by Ercolina).
- Quick-change rollers: a patented roller system, with over 25 notcher rollers available.
- Belts and grinding: tool-free belt changes, a top-mounted deburring surface, and an optional accessory that converts it to an abrasive belt grinder.
- Materials: carbon steel, stainless steel, Inconel, chrome-moly, aluminum and titanium with the right abrasive belt.
- Replaces slower methods: hole saws, end mills, grinding wheels and flame cutting.
Specifications at a Glance
- Capacity: 1 in to 3 in O.D.; full 0 to 60° range up to 2-3/8 in O.D.
- Belt: 4 x 76-3/4 in, 100 ft/sec
- Motor: 5-1/2 hp, 3,650 rpm; 220V or 480V 3-phase
- Size and weight: 52 x 22 x 43 in; 425 lb shipping
Who It’s For
Fabricators building handrails, chassis, roll cages, gates and frames from tube and pipe up to 3 in.
Sales & Service from Icon
Icon Machine Tool sells Ercolina machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
Ercolina Catalog Page (PDF) Talk to a Specialist: (816) 300-0019
