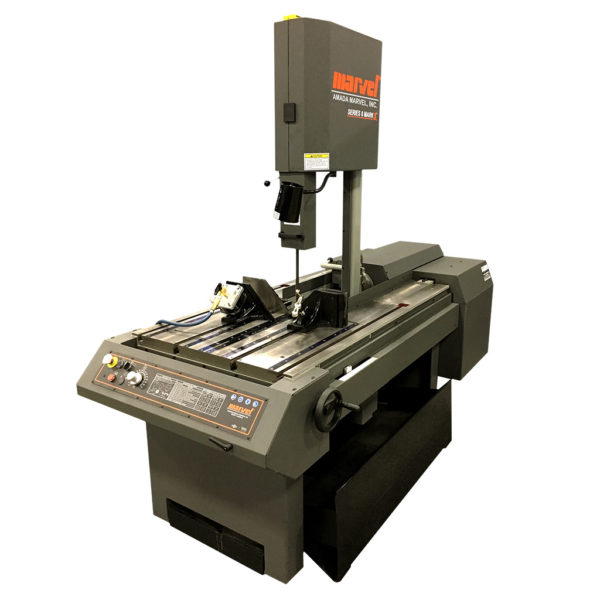

Description
Key Features
- Miter cutting: the column and blade tilt up to 45° left and right.
- T-slotted work table: 24.25 x 33 in work area at 34.5 in high, with four machined T-slots for 0.625 in T-bolts.
- Quick-action vise: 6 in high x 12 in wide jaws that shift to either side of the blade.
- Front-mounted speed control: blade speed adjusts from the operator’s station, 50 to 450 ft/min by inverter.
- Column options: straight (0°) column standard, or an optional 3° canted column; the cant is fixed, not adjustable.
- Chip and coolant cleanup: a flushing hose washes chips from hard-to-reach places, and a power chip brush works with blade wipers and flood coolant to keep the teeth clear.
Specifications at a Glance
- Capacity at 0°: 18 in round; 18 x 22 in rectangular
- Capacity at 45°: 12.75 in round; 18 x 12.75 in rectangular
- Blade: 14 ft 6 in x 1 in x 0.035 in; Eagle Beak VTR blade included
- Motor and feed: 5 hp; clutch power feed, 0 to 140 lb feed force
Who It’s For
Fabrication and maintenance shops cutting structural shapes, tube and solids, including one-off and odd-shaped parts on the large work table.
Sales & Service from Icon
Icon Machine Tool sells Marvel machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.
