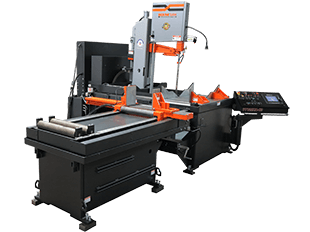

HE&M VT120 Series

The HE&M VT120 Series is a vertical double-miter band saw with a 7.5 hp motor that miters up to 60° left and right and cuts up to 18 in wide by 24 in high. It comes as the semi-automatic VT120HM-60-CTS or the automatic VT120HA-60-CTS with a 48 in bar-feed. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Miters both ways: up to 60° right and left, with a powered programmable tilt and an angle readout.
  • Automatic version: the VT120HA-60-CTS saves jobs by number with size and quantity, links jobs into a program series, and comes with a 48 in hydraulic bar-feed. 48 in or 120 in servo twin ball-screw bar-feeds are options.
  • Cut Watcher: monitors the straightness of the cut; standard on the VT120HA-60-CTS, optional on the VT120HM-60-CTS.
  • Cutting control: electronic controlled traverse sets feed rate and cutting force, with variable blade speed shown on the touchscreen, powered blade tension and carbide blade guides.
  • Chip and coolant: a hand-crank chip conveyor, flood coolant with a wash-down hose, and a blade brush; a powered chip conveyor is optional.

Specifications at a Glance

  • Capacity: 18 x 24 in rectangular; 18 in round
  • Blade: 16 ft 6 in x 1.25 in x 0.042 in
  • Motors: 7.5 hp blade; 5 hp hydraulic
  • Bar-feed (VT120HA-60-CTS): 0 to 48 in hydraulic, multiple index

Who It’s For

Fabricators cutting tall structural shapes, tube and solids that need miters in both directions, from single cuts to automatic runs.

Sales & Service from Icon

Icon Machine Tool sells HE&M machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Talk to a Specialist: (816) 300-0019
