HE&M VT100 Series

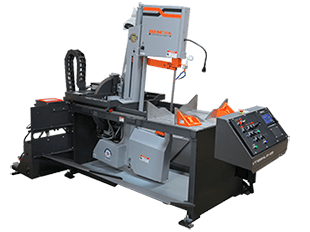

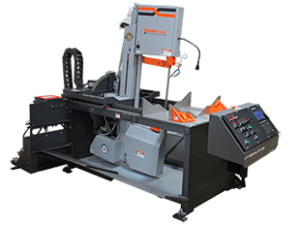

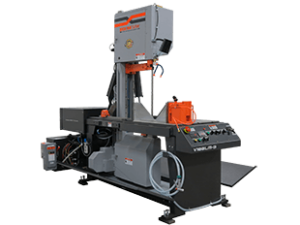

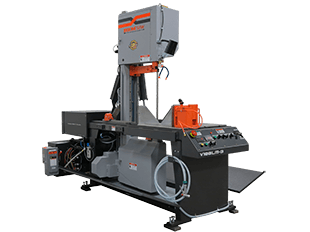

The HE&M VT100 Series is a vertical double-miter band saw that miters up to 60° in both directions and cuts up to 18 in wide by 19.5 in high. Versions run from semi-automatic to fully automatic with a 48 in bar-feed, plus a high-column model that cuts 31 in high. Call Icon Machine Tool at (816) 300-0019 for a quote.

Category:

Description

Key Features

  • Miters both ways: up to 60° left and right (45° on the VT100LM-45), with a powered tilt and an angle readout on the touchscreen.
  • Five versions: the air-operated VT100LM-60 and VT100LM-45, the hydraulic VT100HLM-60-CTS (semi-automatic) and VT100HLA-60-CTS (automatic), and the V100HA-HC-CTS high-column automatic.
  • Automatic models: a 48 in multiple-index bar-feed, programmable miter angles and lengths, and saved jobs that can be linked into programs for sub-assembly part kits.
  • High-column model: the V100HA-HC-CTS cuts up to 31 in high at 90° and 18 in at 45°, with a 15 hp motor and two vises.
  • Coolant and cleanup: flood coolant with a wash-down hose, bolt-on side wings for coolant drainage, and a blade brush.

Specifications at a Glance

  • Capacity: 18 x 19.5 in (60° models); 18 x 21.25 in (VT100LM-45); 18 x 31 in (high column)
  • Round capacity: 18 in
  • Blade (60° models): 15 ft 6 in x 1.25 in x 0.042 in
  • Motor: 5 hp; 15 hp on the high-column model
  • Bar-feed (automatic models): 0 to 48 in, multiple index

Who It’s For

Fabricators cutting structural shapes, tube and solids that need miters in both directions, such as frames and part kits.

Sales & Service from Icon

Icon Machine Tool sells HE&M machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Talk to a Specialist: (816) 300-0019
