HE&M H130 Series

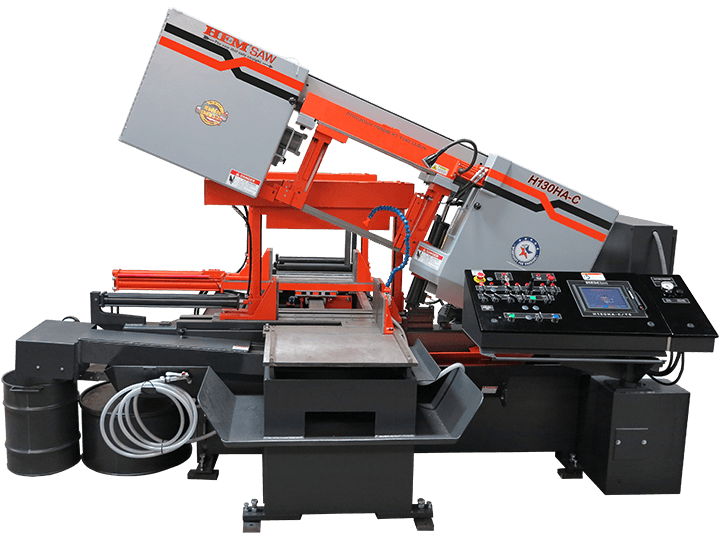

The HE&M H130 Series is a hydraulic horizontal pivot band saw with a 10 hp motor and a 1.5 in blade. It cuts up to 19 x 10 in rectangular or 16 in round, as the semi-automatic H130M or the automatic H130A with a 48 in servo bar-feed. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Heavier blade: the 1.5 in blade and 10 hp motor handle larger and harder materials; a 2 hp hydraulic motor powers the vise, guide arm and blade tension.
  • Adjustable clamping pressure: holds solids securely and allows cutting materials with thinner cross-sections.
  • Touchscreen control: a 7 in touchscreen in a swing-away console on the H130M; the H130A has HE&M’s Smart Saw console with a 9 in touchscreen and MTConnect data output.
  • 48 in servo bar-feed (H130A): twin ball-screw feed with multiple indexes for longer parts. HE&M’s Cut Watcher system monitors the straightness of the cut, and a chip auger is standard on the H130A.
  • Cutting control: variable blade speed with a touchscreen readout, adjustable feed rate and cutting pressure, carbide blade guides, and entry and exit roller guides.
  • Coolant and blade brush: flood coolant with a wash-down hose and a blade brush are standard.

Specifications at a Glance

  • Capacity: 19 x 10 in rectangular; 16 in round; 16 in square
  • Blade: 17 ft x 1.5 in x 0.050 in
  • Motors: 10 hp blade; 2 hp hydraulic
  • Bar-feed (H130A): 0 to 48 in servo twin ball-screw, multiple index

Who It’s For

Shops cutting larger and harder solids and shapes, including bundles, that need a heavier blade.

Sales & Service from Icon

Icon Machine Tool sells HE&M machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

Talk to a Specialist: (816) 300-0019
