HE&M H105 Series

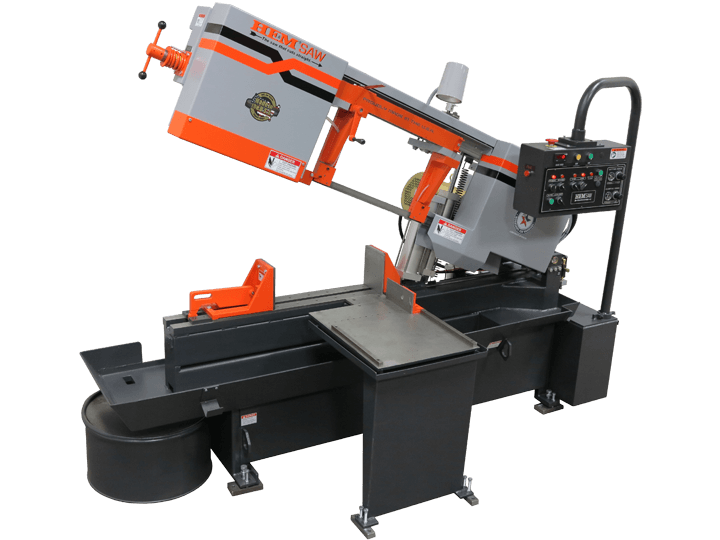

The HE&M H105 Series is a horizontal pivot band saw with a 7.5 hp motor and a 1.25 in blade. It cuts up to 16 x 14 in rectangular or 14 in round, as the semi-automatic H105M or two automatic versions with a 24 in bar-feed. Call Icon Machine Tool at (816) 300-0019 for a quote.

Description

Key Features

  • Three versions: the semi-automatic H105M; the H105A-4, which indexes up to 4 times and cuts up to 999 parts of the same length; and the H105A-C, which saves up to 99 jobs and runs them in sequence.
  • Precise arm control: fine adjustment of cutting rate and cutting force allows a soft entry into shapes and a controlled blade exit to reduce burrs on solids.
  • Variable vise pressure: clamping force adjusts to the material on all three versions.
  • Easy-to-view controls: operator controls are mounted on an easy-to-view arm, with an LED blade speed readout.
  • Standard equipment: a 24 in solid discharge table, carbide blade guides, flood coolant with a wash-down hose, and a blade brush.

Specifications at a Glance

  • Capacity: 16 x 14 in rectangular; 14 in round; 14 in square
  • Blade: 15 ft x 1.25 in x 0.042 in
  • Motor: 7.5 hp
  • Bar-feed (automatic versions): 0 to 24 in air stroke

Who It’s For

Shops cutting solids and structural shapes up to 16 in wide, from single cuts to automatic production runs.

Sales & Service from Icon

Icon Machine Tool sells HE&M machines across Missouri, Kansas, Oklahoma, Arkansas, eastern Iowa, Indiana, Illinois, Oregon and Washington. Our team helps you choose the right machine and configuration for the parts you make.

HE&M Brochure (PDF)  Talk to a Specialist: (816) 300-0019
