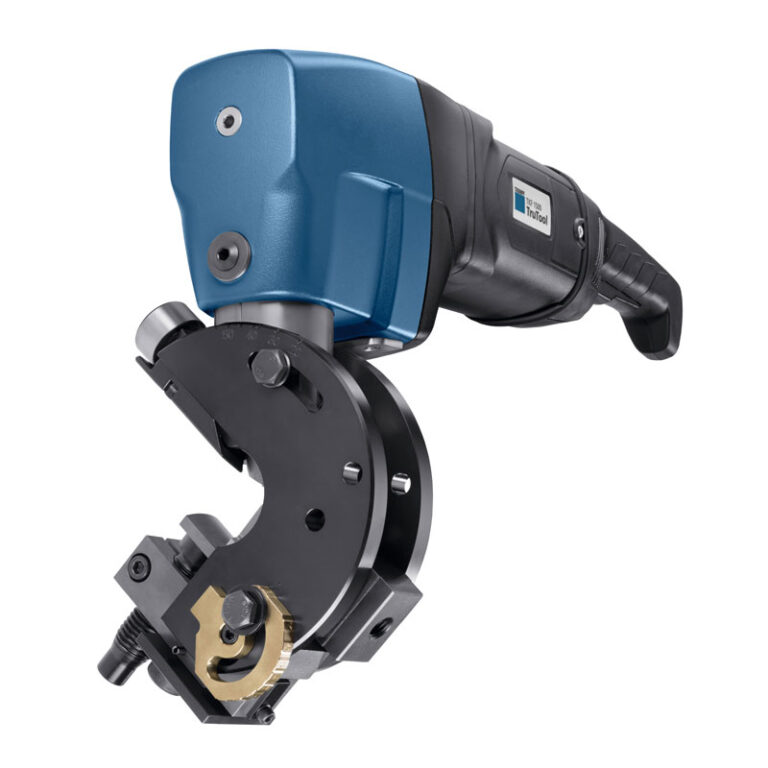

TruTool TKF 1500 4A1
$7,600.00
The TRUMPF TruTool TKF 1500 4A1 is a high-performance beveling machine designed for heavy fabrication and large workpieces. Built for maximum material removal and consistent precision, it produces clean, oxide-free edges in a single pass — ideal for weld-seam preparation on thick steel and structural plate.
-
4A1 Version: Designed for maximum beveling power and efficiency on thick materials.
-
Adjustable Bevel Range: Continuously variable from 20° to 55° for flexible applications.
-
High Material Capacity: Processes plate thicknesses from 4 mm up to 160 mm.
-
Powerful Drive: 2,600 W motor provides stable cutting performance under heavy load.
-
Chamfer Capability: Up to 15 mm chamfer length and 10.6 mm height on standard steel.
-
Versatile Use: Ideal for flat sheets, tubes, T-carriers, and curved edges.
-
Industrial-Grade Durability: Engineered for continuous operation in demanding environments.
