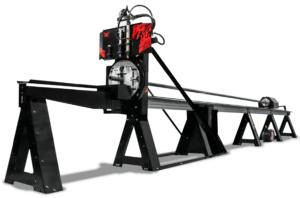

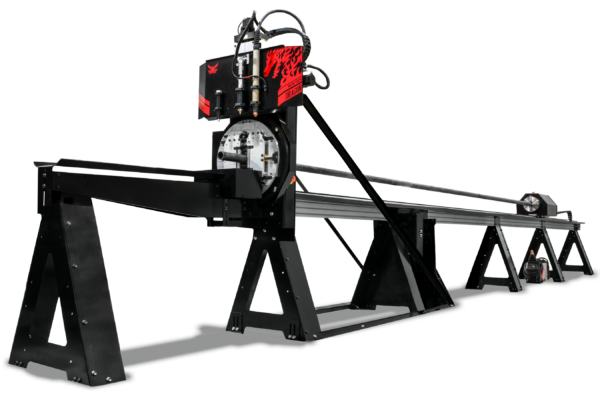

Dragon A400
The Dragon A400 marks bend location, rotation, and degrees on the tube for clear bending instructions. This machine can be a great tool for shops that fabricate with tube and pipe. The A400 uses plasma cutting, marking and engraving to make CAD/CAM designs a reality.
Material Types:
- Steel
- Stainless Steel
- Galvanized Steel
- Aluminum
- Black Pipe
- Chrome Alloy
- Any type of electrically conductive metal
Material Sizing:
- Round: 0.75” (19mm) – 6” (152.4mm)
- Square: 1” (25.4mm) – 4″ (101.6mm)
- Rectangle: 1” (25.4mm) – 4” (101.6mm)
- Angle: 1” (25.4mm) – 4” (101.6mm)
- Channel: 1” (25.4mm) – 4” (101.6mm)
Material Length:
- Full 24ft length material
- The chuck has a pass-through ability for round material with a 2” or less OD to accommodate longer than standard pieces.
Material Thickness:
- 1/32” (0.79mm) – 5/8″ (15.8mm)
Material Weight:
- 400 lbs max capacity
