Description
Key Features

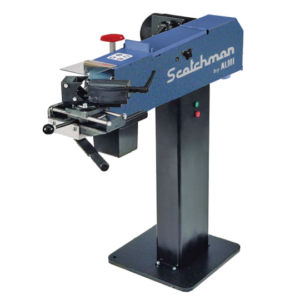

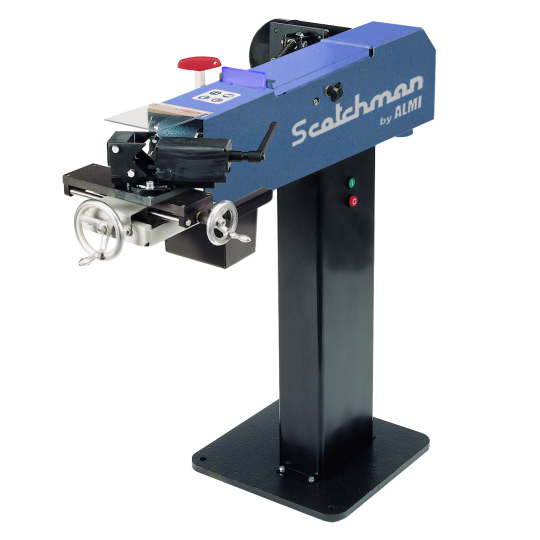

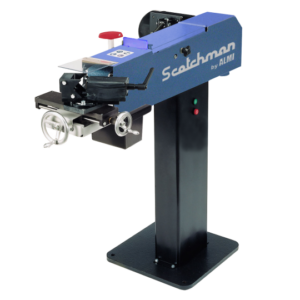

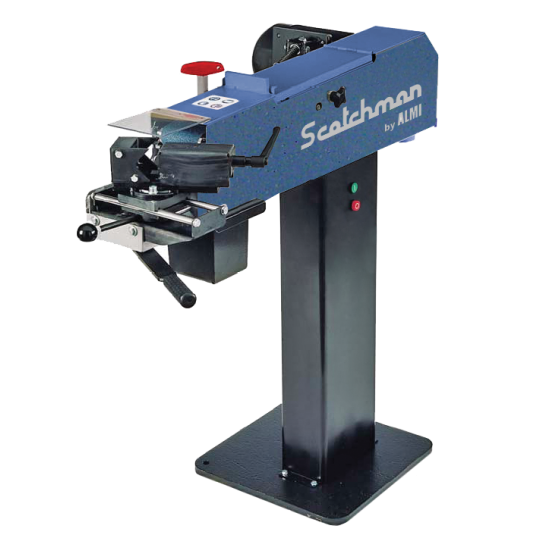

- AL100U-01 and AL100U-02: 4 in belt for 1/2 in to 3 in O.D. at 90° to 30°: the -01 with a hand lever feed and manual vise, the -02 with a two-axis crossfeed table with handwheels.

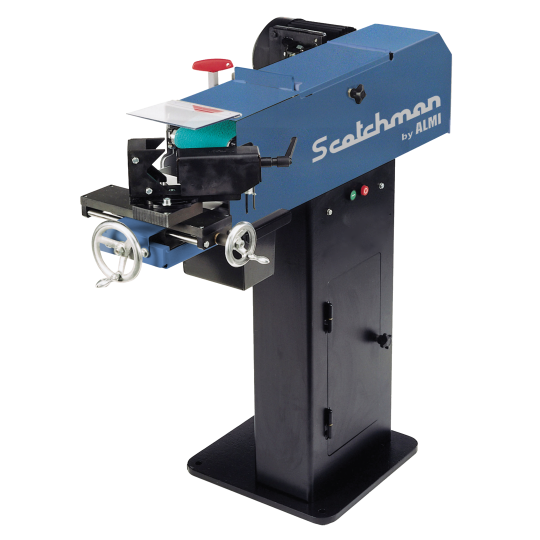

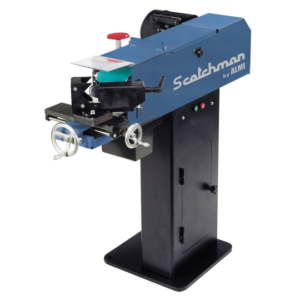

- AL150: 6 in belt for 1/2 in to 4-1/2 in O.D. at 90° to 20°, with a two-axis crossfeed table; suited to aluminum and plastic and to double corner joints.

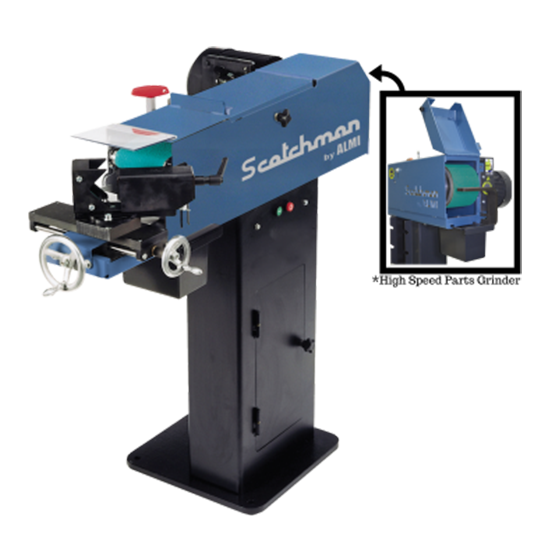

- AL150-HS: the high-speed AL150, 40% faster with a 150 ft/sec belt speed, less heat discoloration and 2 to 3 times longer belt life; suited to stainless and aluminum, with a parts grinder in the rear.
- One vise for all sizes: graduated in degrees for quick setup, with mandrel centerline adjustment.
- Quick changes: tool-free belt and mandrel changes; 13 mandrel sizes (AL100U) or 17 (AL150) for gap-free fits; each comes with 2 belts and 2 mandrels.
- Warranty: three years on parts; manufactured in the Netherlands.
Specifications at a Glance
- Tube capacity: 1/2 in to 3 in O.D. (AL100U); 1/2 in to 4-1/2 in O.D. (AL150, AL150-HS)
- Angle range: 90° to 30° (AL100U); 90° to 20° (AL150, AL150-HS)
- Belt: 4 x 78-3/4 in (AL100U); 6 x 78-3/4 in (AL150, AL150-HS)
- Motor: 4.5 hp (AL100U); 6 hp (AL150, AL150-HS); 3-phase, single-phase optional except AL150-HS
- Profiles: round, square, rectangle or flat
Who It’s For
Fabricators building tube frames, railings, roll cages and furniture that need tight, weld-ready notches in tube and pipe.
